80
MHC-V6D
SECTION 6
EXPLODED VIEWS
1 4-484-665-01 CAP, SCREW
2 4-484-663-02 PANEL, SIDE R (for R-ch)
3 4-484-664-02 PANEL, SIDE L (for L-ch)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color

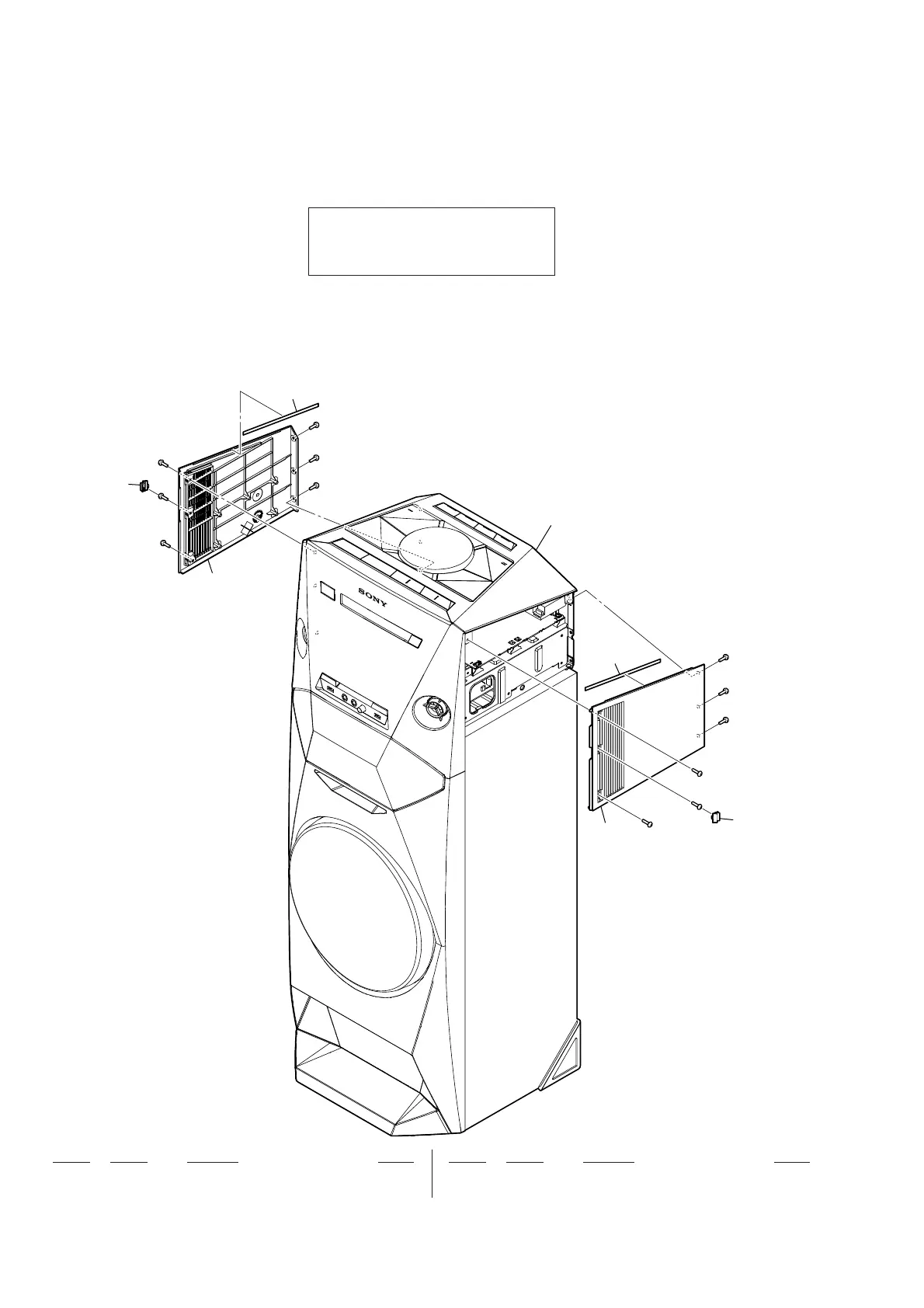

6-1. SIDE PANEL SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
3
2
1
loading panel section
1
#1
#1
#1
#1
#1
#1
not
supplied
#1
#1
#1
#1
#1
#1
not
supplied
• Abbreviations
E2 : 120V AC Area in E model
E4 : African model
E51
: Chilean and Peruvian models
E93 : United Arab Emirates, Kuwait,
Iraq, Kenya, Tanzania and
Nigeria models
IND : Indian model
MX : Mexican model
MY : Malaysia model
SAF : South African model
SP : Singapore model
TH : Thai model
Ver. 1.3
To Next Page
