Sony MHC-V6D Service Manual

82
MHC-V6D

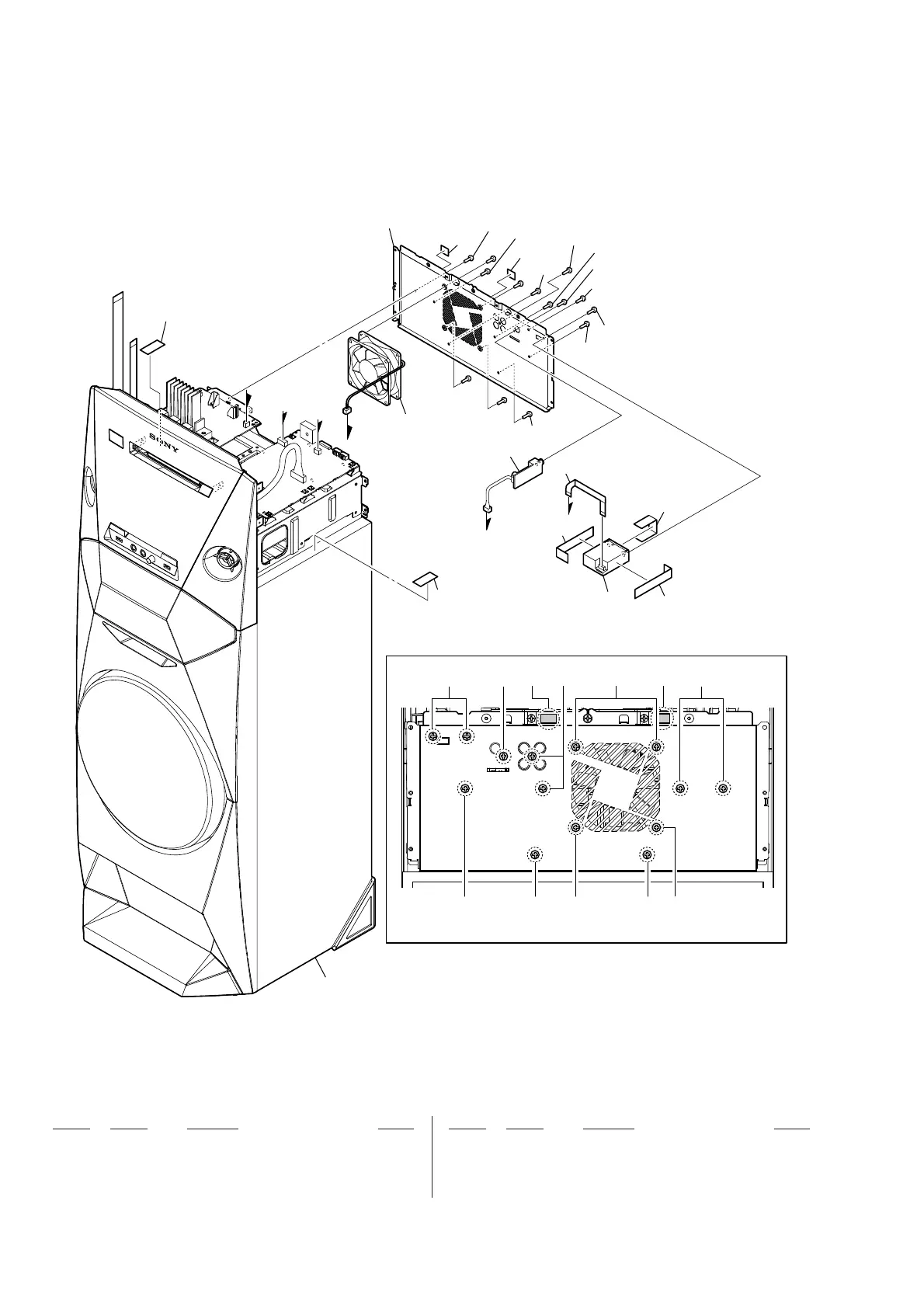

6-3. BACK PANEL SECTION
101 4-474-153-11 CUSHION (H)
102 3-704-515-22 SCREW (BV/RING)
103 4-536-576-11 CUSHION (E15)
FFC3 9-885-196-65 FY13 FFC F030 (1.0 mm_9P_TUNER)
M1 1-855-307-11 DC FAN
TU1 A-1846-569-A TUNER1AM3RZ ASSY (Tuner unit)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
D-AMP board, ARAGON board section
E
F
D
D
E
F
103
103
102
102
102
102
102
102
102
102
102
102
102
102
102 102
102
102103 103
102
101
101
101
#1
#1
#1
M1
FFC3
#1
#1
not supplied
not supplied
TU1
not
supplied
– Rear view –
#1 #1
not supplied
(VIDEO board)

Sony MHC-V6D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Impedance	5 Ω
Bass reflex	-
Speaker type	3-way
RMS rated power	1440 W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display type	LCD
Audio (L/R) in	1
USB 2.0 ports quantity	2
Analog signal format system	NTSC, PAL
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	ENG, CHI (SIMPL), THA, CHI (TR)
Disc types supported	CD-RW, DVD-R, DVD, CD, DVD+R, DVD+R DL, CD-R, DVD+RW, DVD-RW
Audio formats supported	WMA, MP3
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Equalizer modes	Custom, Pop, Flat, Rap, Rock

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
Package depth	417 mm
Package width	972 mm
Package height	381 mm
Package weight	21000 g
