MHC-V6D
7
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

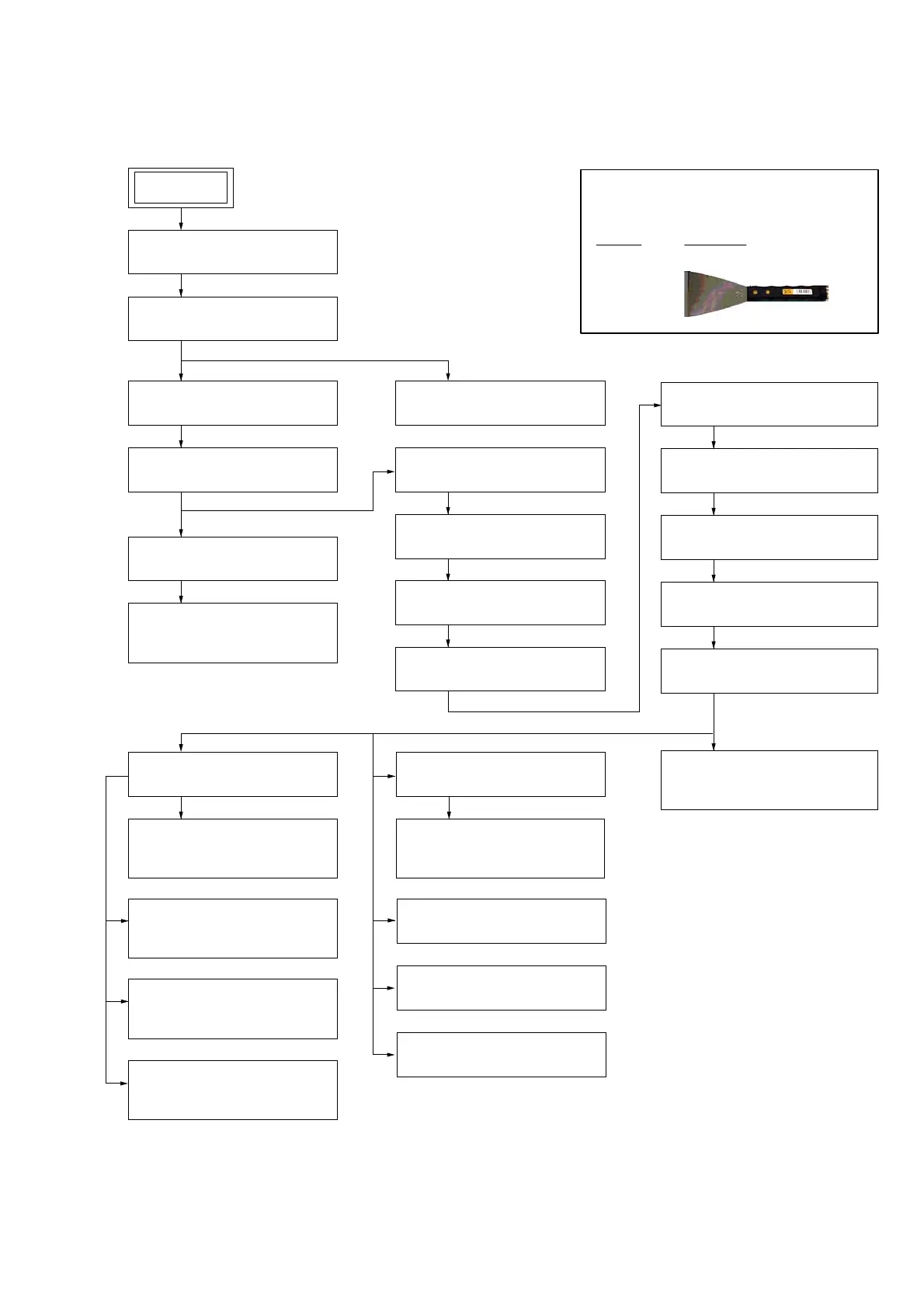

2-1. DISASSEMBLY FLOW
SET
2-2. SIDE L, R PANEL BLOCK
(Page 8)
2-22. FL BOARD BLOCK
(Page 28)
2-3. TOP PANEL BLOCK
(Page 9)
2-5. LOADING PANEL BLOCK
(Page 11)
2-6. CDM BLOCK
(Page 12)
2-4. VOLUME KNOB BLOCK
(Page 10)
2-7. BACK PANEL BLOCK
(Page 13)
2-8. ARAGON BOARD-1
(Page 14)
2-10. ARAGON BOARD-3
(Page 16)
2-9. ARAGON BOARD-2
(Page 15)
2-11. D-AMP BOARD-1
(Page 17)
2-12. D-AMP BOARD-2
(Page 18)
2-13. SUB CHASSIS
(Page 19)
2-14. FRONT PANEL BLOCK-1
(Page 20)
2-15. FRONT PANEL BLOCK-2
(Page 21)
2-16. SWITCHING REGULATOR
(SWR1)
(Page 22)
2-23. BLUETOOTH MODULE
(BT1)
(Page 29)
2-24. USB BOARD BLOCK
(Page 30)
2-25. MIC BOARD
(Page 31)
2-26. NFC MODULE (NFC1)
(Page 31)
2-17. FRONT PANEL (SP) BLOCK
(Page 23)
2-18. SPEAKER LED BOARD,
FRONT PANEL (SP) ASSY
(Page 24)
2-19. LOUDSPEAKER (25 cm)
(WOOFER) (SP5)
(Page 25)
2-20. LOUDSPEAKER (10 cm)
(MID: L-CH) (SP1)
(Page 26)
2-21. LOUDSPEAKER (10 cm)
(MID: R-CH) (SP3)
(Page 27)
2-27. FFC HOLDER
(Page 32)
2-28. OPTICAL PICK-UP BLOCK
(CMS-S76RFS7G) (OP1)
(Page 33)
JIG
When disassembling the unit, use the following
jig for speaker removal.
Part No. Description
J-2501-238-A JIG FOR SPEAKER REMOVAL
To Next Page
