Sony MHC-V6D Service Manual

89
MHC-V6D

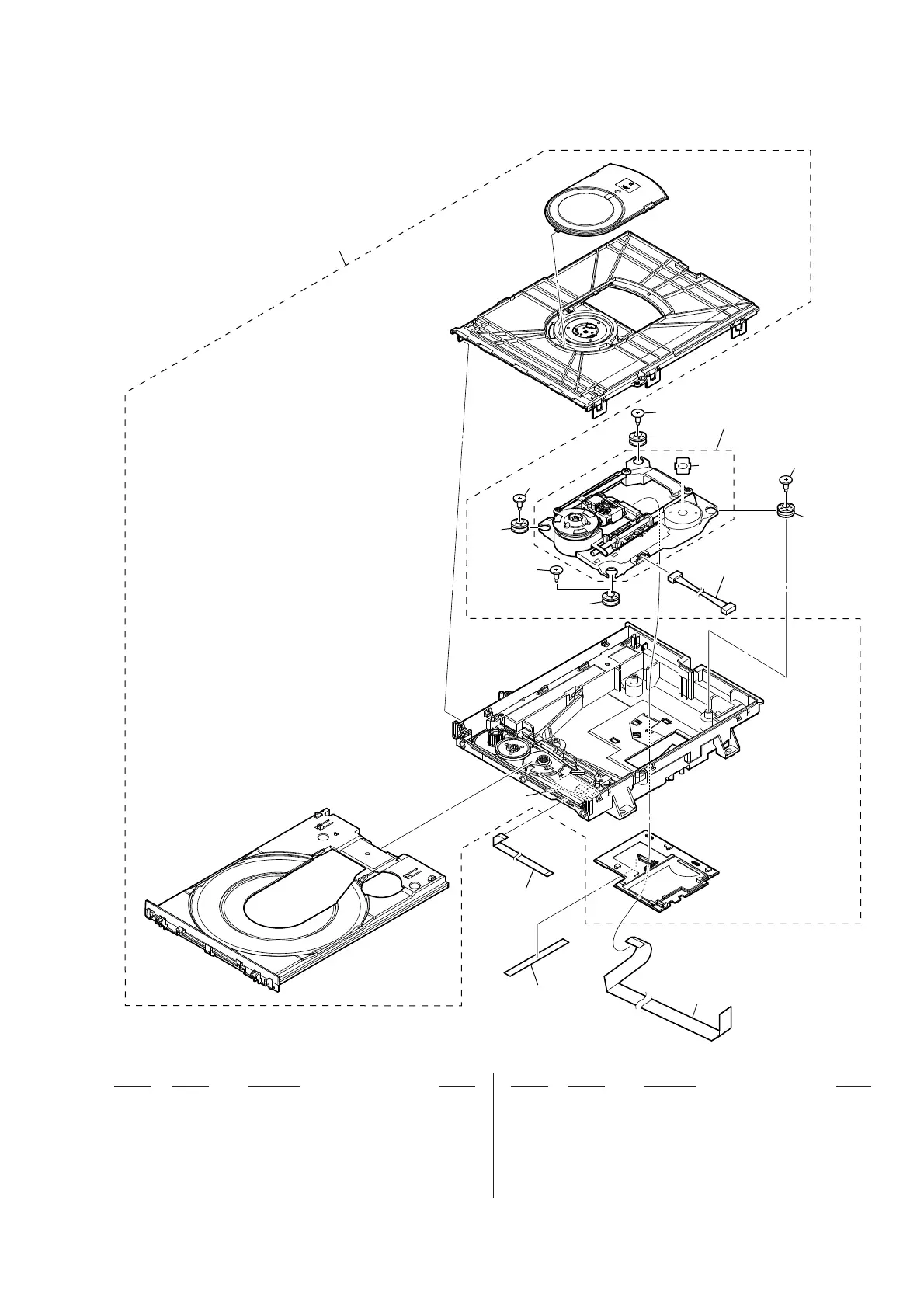

6-10. DVD MECHANISM DECK SECTION (CDM90-DVBU202 or CDM90-DVBU204)
451 2-634-618-21 INSULATOR
452 3-087-599-01 INSULATOR SCREW
453 4-418-987-01 SHEET (S76)
454 4-474-153-81 CUSHION (H)
CDM1 A-1937-669-C CDM90 ASSY (Including MS-476 board)
FFC1 9-885-196-70 FY13 FFC F080 (0.5 mm_24P_OP) (Except E93)
FFC1 9-885-196-73 FY13 FFC F110 (0.5 mm_24P_OP_EM) (E93)
FFC2 9-885-196-69 FY13 FFC F070 (1.0 mm_5P_CDM) (Except E93)
FFC2 9-885-196-72 FY13 FFC F100 (1.0 mm_5P_CDM_EM) (E93)
0 OP1 A-2046-956-A OPTICAL PICK-UP BLOCK (CMS-S76RFS7G)
(for SERVICE) (Including Sled motor, Spindle motor)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MS-476
board
CDM1
OP1
FFC1
451
451
451
451
454
452
453
452
452
452
not supplied
FFC2

Sony MHC-V6D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Impedance	5 Ω
Bass reflex	-
Speaker type	3-way
RMS rated power	1440 W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display type	LCD
Audio (L/R) in	1
USB 2.0 ports quantity	2
Analog signal format system	NTSC, PAL
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	ENG, CHI (SIMPL), THA, CHI (TR)
Disc types supported	CD-RW, DVD-R, DVD, CD, DVD+R, DVD+R DL, CD-R, DVD+RW, DVD-RW
Audio formats supported	WMA, MP3
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Equalizer modes	Custom, Pop, Flat, Rap, Rock

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
Package depth	417 mm
Package width	972 mm
Package height	381 mm
Package weight	21000 g
