Sony MHC-V6D - Side L, R Panel Block

MHC-V6D
8
Note: Follow the disassembly procedure in the numerical order given.

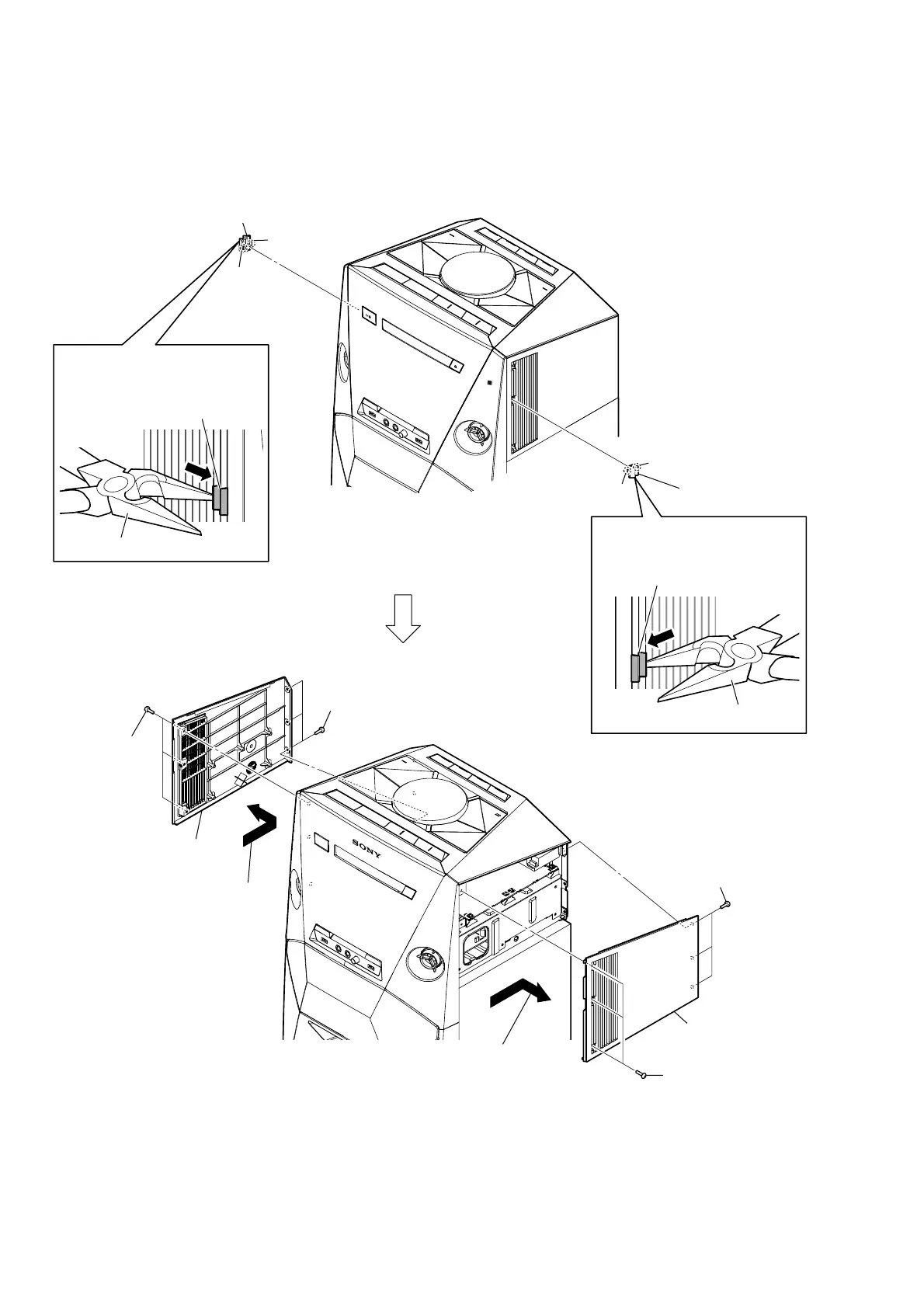

2-2. SIDE L, R PANEL BLOCK
6 side R panel block
4 three screws
(BVTP3 u 10)
4 three screws
(BVTP3 u 10)
5 Remove the side R panel block
in the direction of the arrow.
5 Remove the side L panel block
in the direction of the arrow.
4 three screws
(BVTP3 u 10)
4 three screws
(BVTP3 u 10)
6 side L panel block
2 claw
2 claw
3 screw cap
needle-nose pliers
needle-nose pliers
2 claw
2 claw
3 screw cap
1
Insert needle-nose pliers behind
the second fin, and press
in the direction of the arrow.
Note:
Do not damage screw cap.
1
Insert needle-nose pliers behind
the second fin, and press
in the direction of the arrow.
Note:
Do not damage screw cap.
