Sony MHC-V6D Service Manual

85
MHC-V6D

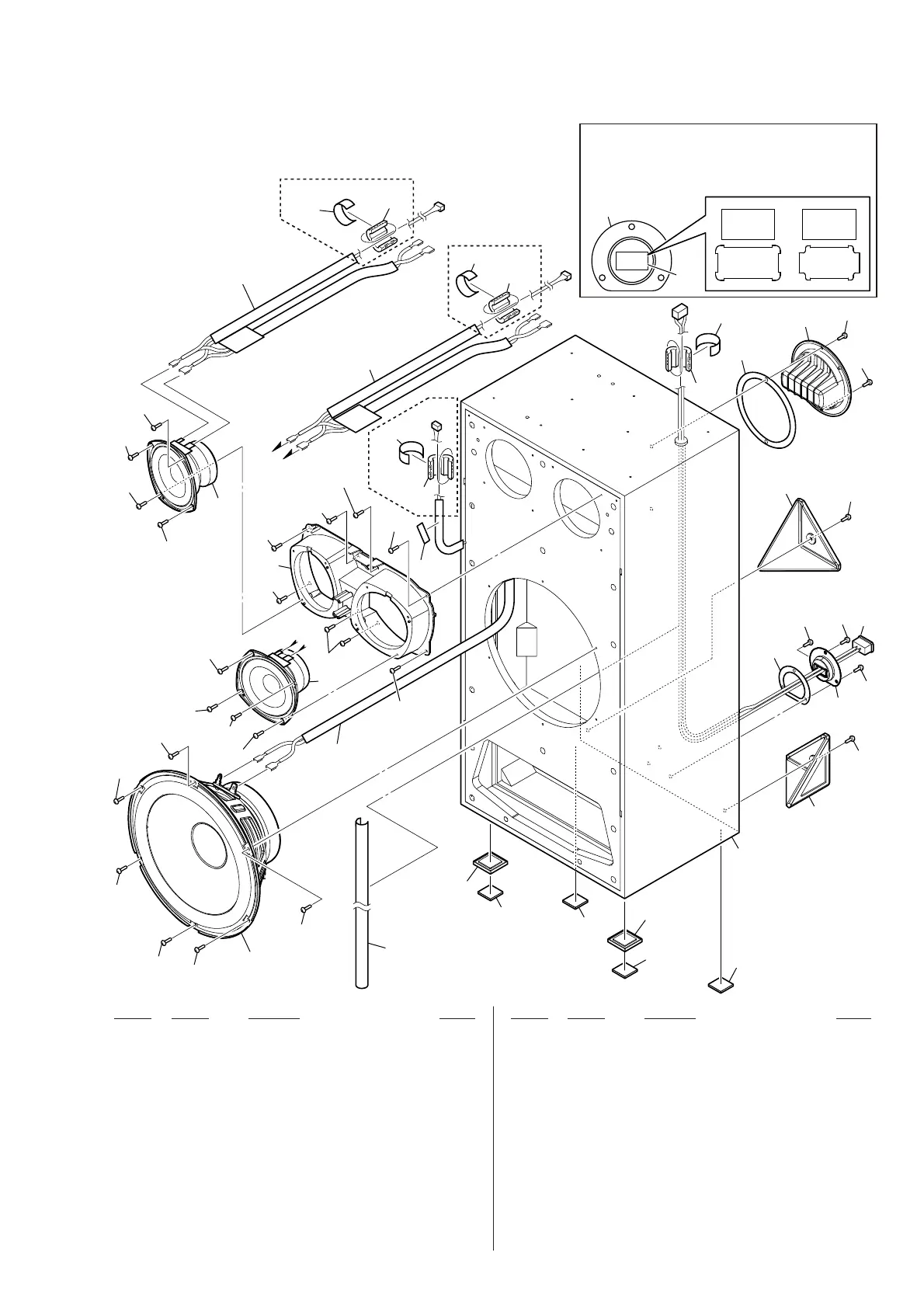

6-6. SPEAKER CABINET SECTION
251 4-238-407-12 SCREW (1) (4X20), +BV TAPPING
252 4-874-614-02 SCREW (1) (3.5X14), TAPPING
253 4-484-671-01 STAND (10SP)
254 4-474-153-11 CUSHION (H)
255 4-474-156-11 CUSHION (E 0.5) (E93)
256 4-474-156-41 CUSHION (E 0.5)
257 4-484-673-01 HANDLE (REAR)
258 4-534-975-01 CUSHION (HANDLE)
259 4-484-672-01 CORNER GUARD
260 4-484-688-11 PLATE (AC CORD) (Former type) (See Note)
260 4-484-688-21 PLATE (AC CORD) (New type) (See Note)
261 4-534-974-01 CUSHION (PLATE)
262 4-527-276-01 SHEET (FOOT)
263 4-488-303-01 FOOT
264 4-874-614-12 SCREW (1) (3.5X14), TAPPING
265 4-534-973-01 CUSHION (AC)
0 AC1 1-843-966-11 AC INLET (2P) (Former type) (See Note)
0 AC1 1-844-308-11 AC INLET (New type) (See Note)
FC2 1-457-369-12 CORE, FERRITE
* FC6 1-500-082-11 CLAMP, SLEEVE FERRITE (E93)
* FC7 1-500-082-11 CLAMP, SLEEVE FERRITE (E93)
* FC8 1-500-082-11 CLAMP, SLEEVE FERRITE (E93)
SP1 1-858-982-11 LOUDSPEAKER (10 cm) (Mid) (L-ch)
SP3 1-858-982-11 LOUDSPEAKER (10 cm) (Mid) (R-ch)
SP5 1-858-983-11 LOUDSPEAKER (25 cm) (Woofer)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: About Ref. No. 260 and AC1
PLATE (AC CORD) and AC INLET have been changed
from the midway of production. When replacing new
parts, please check form and replace for the same parts.
Discrimination
252
252
252
252
251
251
251
not
supplied
not
supplied
SP5
SP3
252
252
252
252
252
252
253
252
252
252
252
255
255
252
254
U
T
U
T
not supplied
not supplied
FC2
AC1
FC8
FC6
FC7
251
251
251
265
SP1
255
256
257
251
251
251
251
259
262
262
262
262
263
263
264
264
264
258
259
261
260
(E93)
(E93)
(E93)
Former
type
New
type
plate (AC cord)
hole
Ver. 1.4

Sony MHC-V6D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Impedance	5 Ω
Bass reflex	-
Speaker type	3-way
RMS rated power	1440 W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display type	LCD
Audio (L/R) in	1
USB 2.0 ports quantity	2
Analog signal format system	NTSC, PAL
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	ENG, CHI (SIMPL), THA, CHI (TR)
Disc types supported	CD-RW, DVD-R, DVD, CD, DVD+R, DVD+R DL, CD-R, DVD+RW, DVD-RW
Audio formats supported	WMA, MP3
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Equalizer modes	Custom, Pop, Flat, Rap, Rock

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
Package depth	417 mm
Package width	972 mm
Package height	381 mm
Package weight	21000 g
