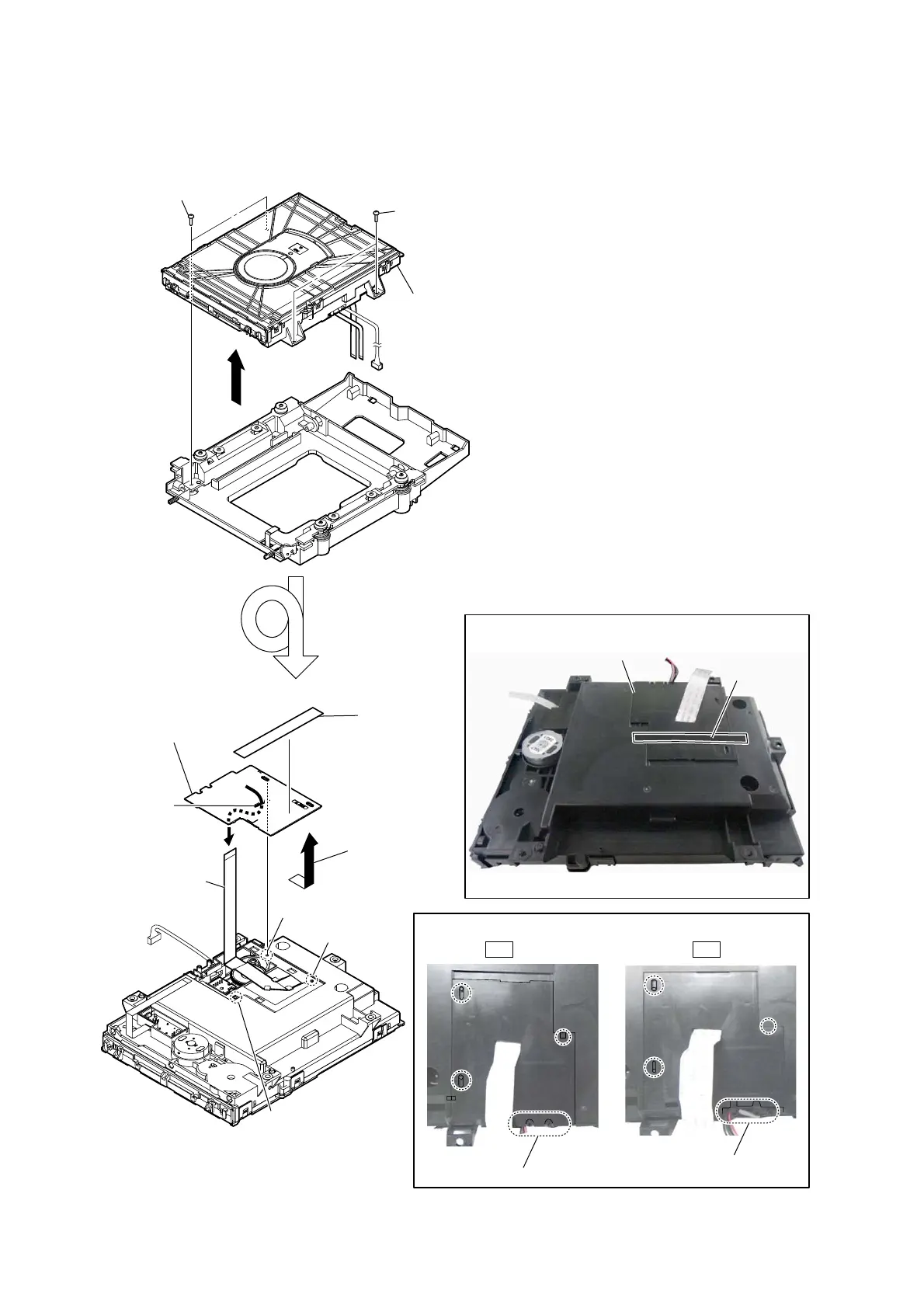

2-27. FFC HOLDER
cushion (H)
FFC holder
3 cushion (H)
boss
boss
claw
5 Draw out the flexible flat
cable (24P) from hole.
4 Remove the
FFC holder
in the direction
of the arrow.
– CD mechanism deck block bottom view –
6
FFC holder
Note:
When installing the FFC holder,
check that installed firmly
two bosses and claw.
hole
+RZWRLQVWDOOWKH))&KROGHU
3DVWLQJSRVLWLRQRIFXVKLRQ+
There is a gap.
There is no gap.
OK NG
–Bottom view –
1 two screws
(BVTP3 u 8)
2 CD mechanism deck block
1 two screws
(BVTP3 u 8)

Sony MHC-V6D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Impedance	5 Ω
Bass reflex	-
Speaker type	3-way
RMS rated power	1440 W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display type	LCD
Audio (L/R) in	1
USB 2.0 ports quantity	2
Analog signal format system	NTSC, PAL
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	ENG, CHI (SIMPL), THA, CHI (TR)
Disc types supported	CD-RW, DVD-R, DVD, CD, DVD+R, DVD+R DL, CD-R, DVD+RW, DVD-RW
Audio formats supported	WMA, MP3
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Equalizer modes	Custom, Pop, Flat, Rap, Rock

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
Package depth	417 mm
Package width	972 mm
Package height	381 mm
Package weight	21000 g
