MHC-V6D
15

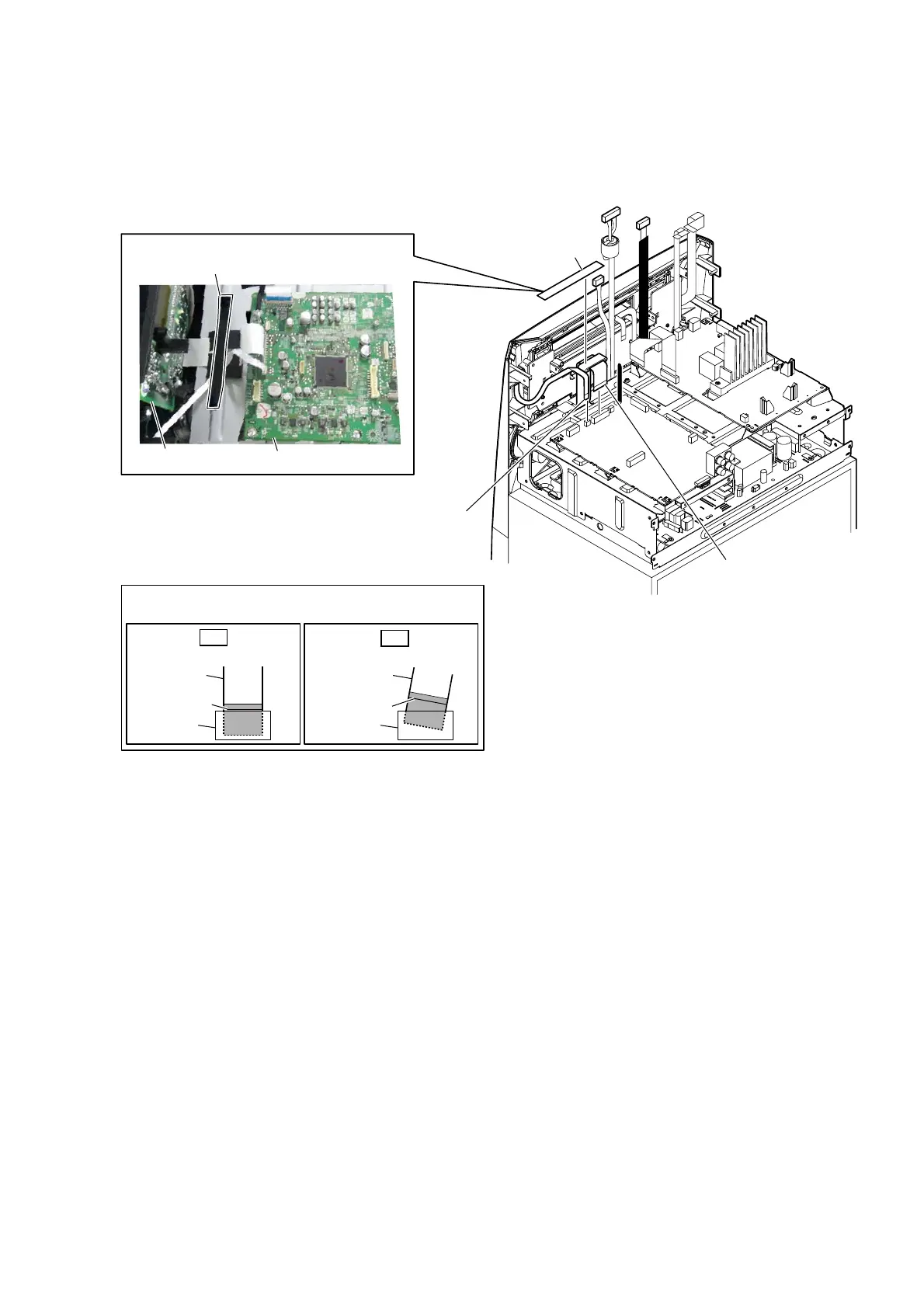

2-9. ARAGON BOARD-2
• Continued on 2-10 (page 16).
:LUHVHWWLQJ
ARAGON board
FL board
cushion (H)
1 cushion (H)
–7RSUHDUYLHZ–
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
2 flexible flat cable (8P)
(CN105)
3 flexible flat cable (23P)
(CN109)
