Sony MHC-V6D Service Manual

MHC-V6D
28

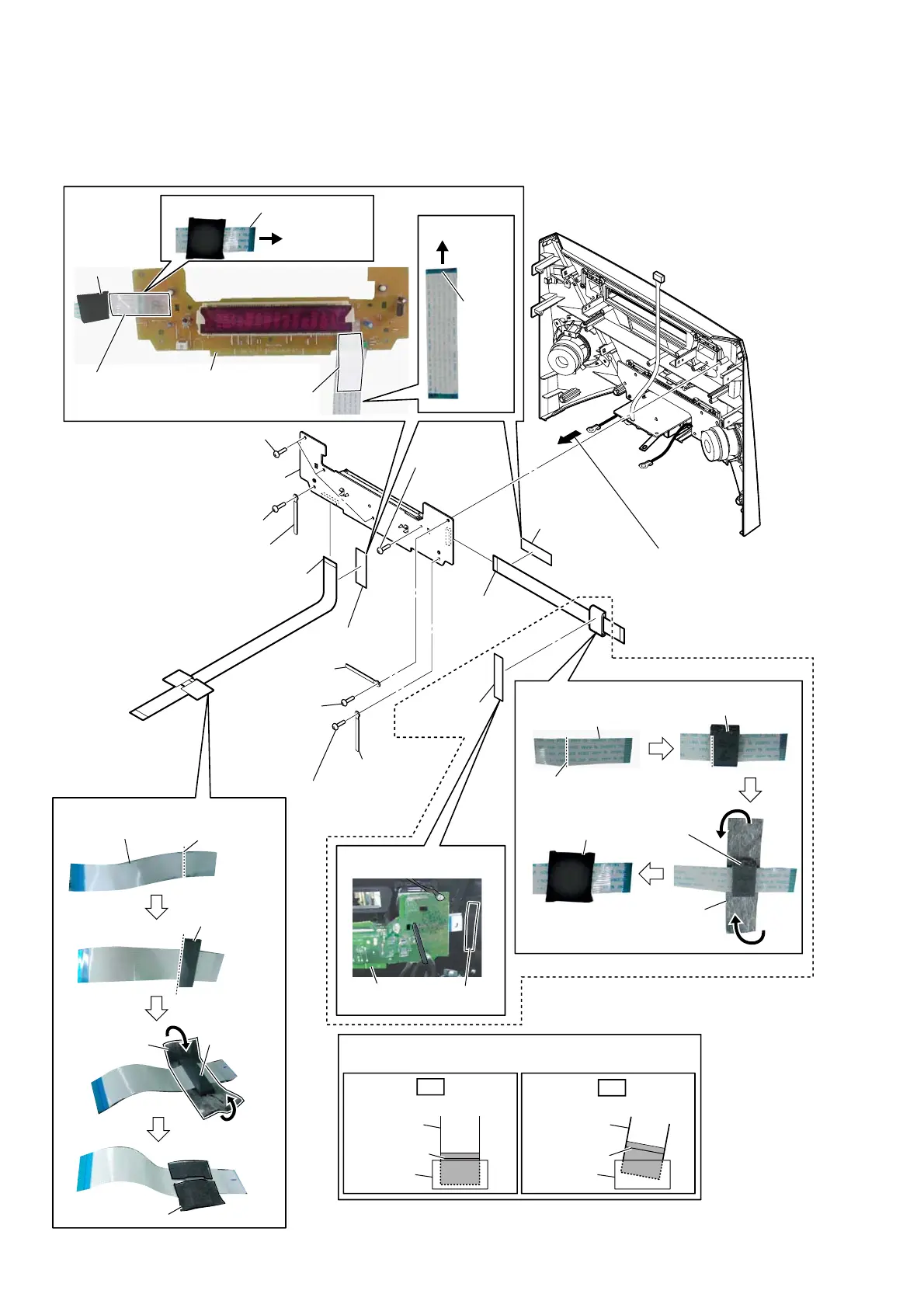

2-22. FL BOARD BLOCK
• Abbreviation
E93: United Arab Emirates, Kuwait, Iraq, Kenya, Tanzania and Nigeria models
1 cushion (H)
cushion (H)
)HUULWHFRUH)&VHWWLQJ
flexible flat cable
ferrite core (FC4)
cushion (E 0.5)
)HUULWHFRUH)&VHWWLQJ
ferrite core
(FC1)
cushion (E 0.5)
ferrite core
(FC4)
to FL board
to FL board
terminal
face
terminal face
cushion
(E 0.5)
ferrite core
(FC4)
cushion (E 0.5)
ferrite core
(FC1)
4 Remove the FL board block
in the direction of the arrow.
–)URQWSDQHOUHDUYLHZ–
(
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
8 flexible flat cable (23P)
(CN2000)
flexible flat cable
(23P)
6 flexible flat cable
(15P)
(CN2001)
:LUHVHWWLQJ
7 filament tape
(sub material)
9 FL board
block
2 three screws
(BVTP3 u 8)
2 screw
(BVTP3 u 8)
2 screw
(BVTP3 u 8)
2 screw
(BVTP3 u 8)
2 screw
(BVTP3 u 8)
3 coating
clip
3 coating clip
3 coating
clip
5 filament tape
(sub material)
filament tape
(sub material)
filament tape
(sub material)
FL board
FL board
:LUHVHWWLQJ
guide line
guide line

Sony MHC-V6D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Impedance	5 Ω
Bass reflex	-
Speaker type	3-way
RMS rated power	1440 W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display type	LCD
Audio (L/R) in	1
USB 2.0 ports quantity	2
Analog signal format system	NTSC, PAL
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	ENG, CHI (SIMPL), THA, CHI (TR)
Disc types supported	CD-RW, DVD-R, DVD, CD, DVD+R, DVD+R DL, CD-R, DVD+RW, DVD-RW
Audio formats supported	WMA, MP3
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Equalizer modes	Custom, Pop, Flat, Rap, Rock

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
Package depth	417 mm
Package width	972 mm
Package height	381 mm
Package weight	21000 g
