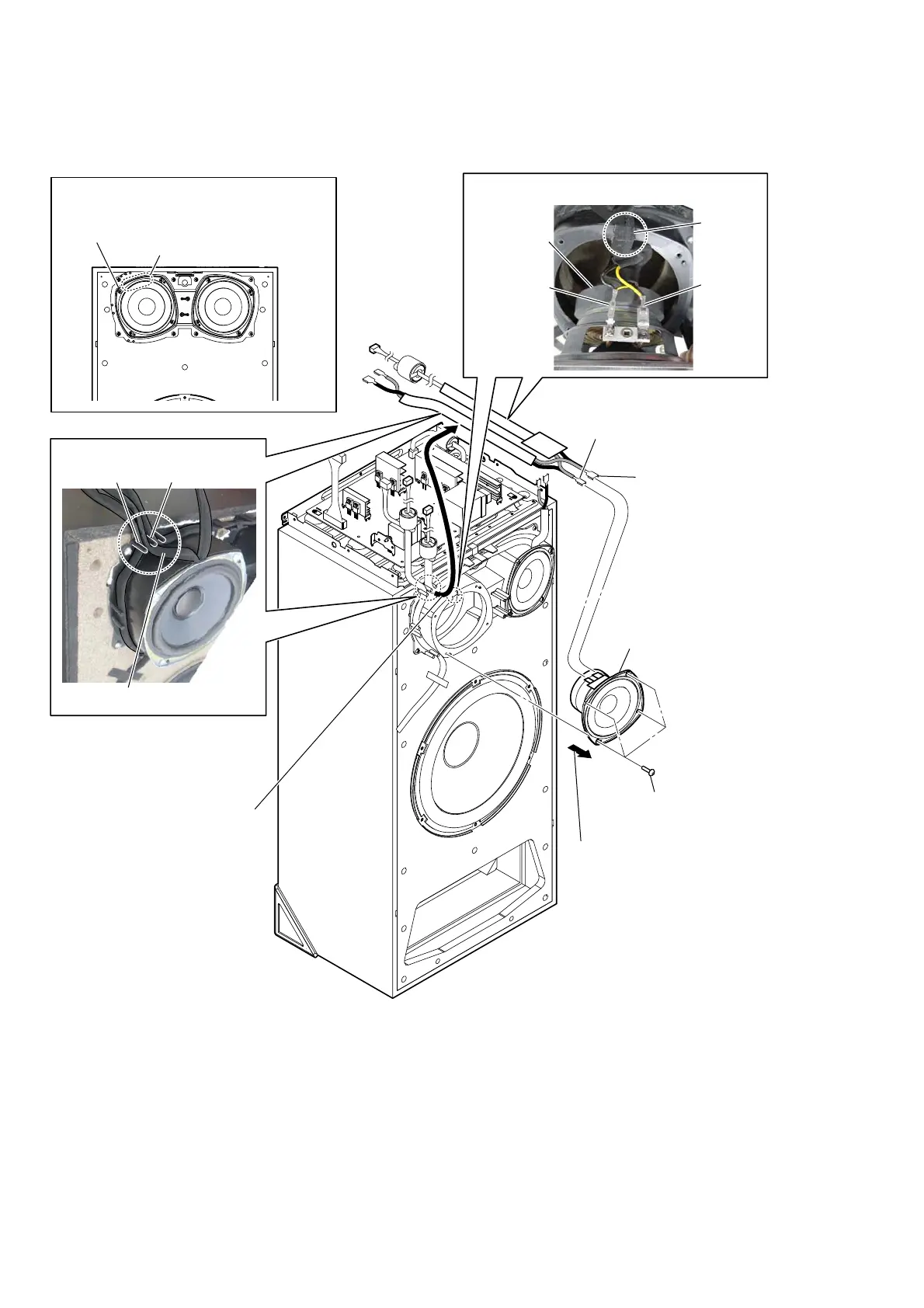

2-20. LOUDSPEAKER (10 cm) (MID: L-CH) (SP1)
terminal position
loudspeaker (10 cm)
(SP1)
3 Remove the loudspeaker (10 cm) (SP1)
in the direction of the arrow.
1 Remove the speaker cable.
2 four tapping screws
(3.5 u 14)
4 terminal
(narrow side)
4 terminal
(wide side)
5 loudspeaker (10 cm)
(mid: L-ch) (SP1)
terminal
(wide side)
groove
terminal
(narrow side)
:LUHVHWWLQJ
:LUHVHWWLQJ
loudspeaker
(10 cm) (SP1)
rib
speaker cable
rib
+RZWRLQVWDOOWKHORXGVSHDNHUFP63
–)URQWOHIWYLHZ–
