Sony MHC-V6D Service Manual

MHC-V6D
18

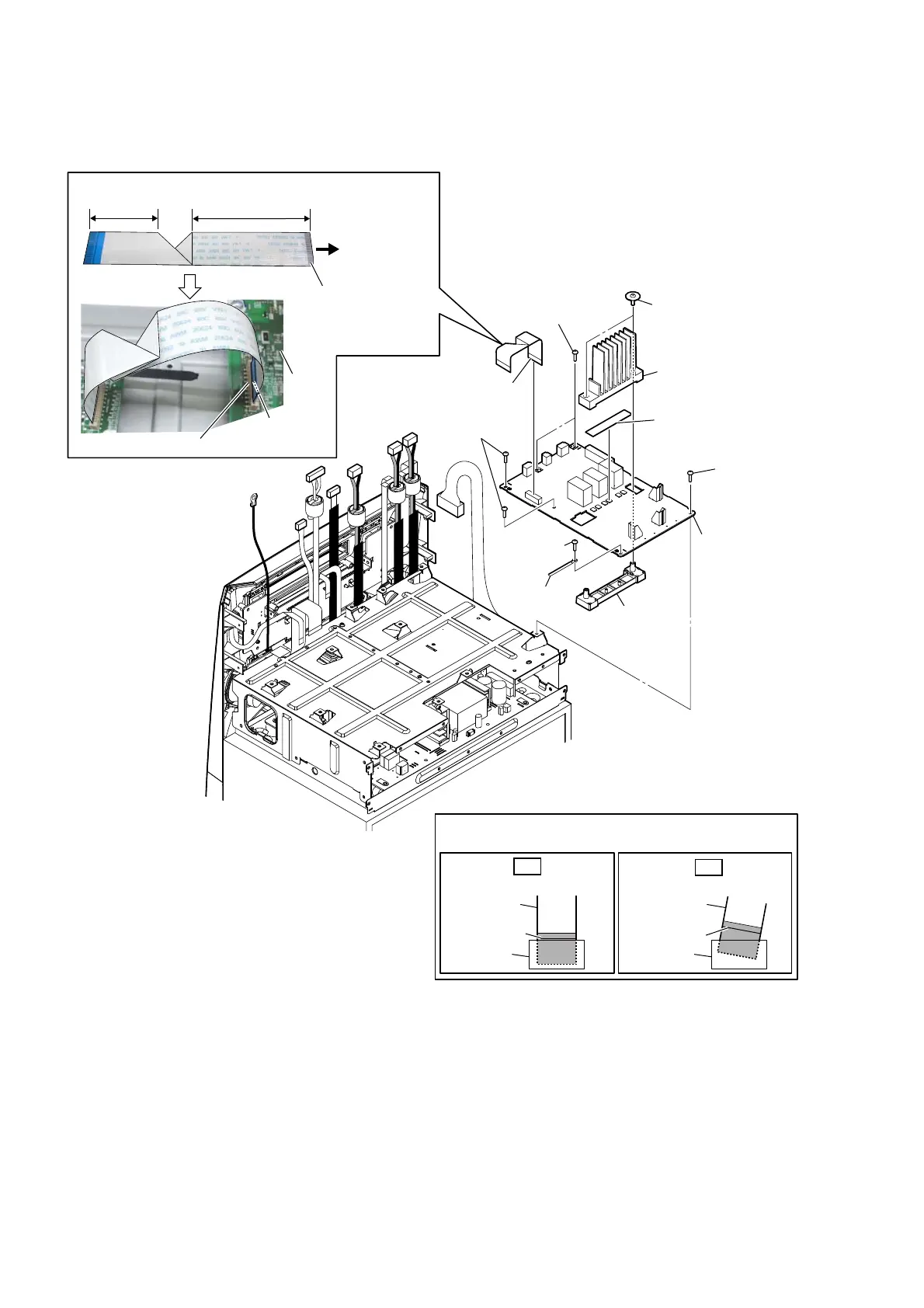

2-12. D-AMP BOARD-2
)OH[LEOHIODWFDEOH3VHWWLQJ
2 two screws
(BV/RING)
2 two screws
(BV/RING)
2 screw
(BV/RING)
6 heat sink
7 thermal sheet
2 screw
(BV/RING)
4 two screws
(PTPWH2.6 u L)
to D-AMP board
short long
3 coating
clip
8 D-AMP board
5 bracket
(HS)
–7RSUHDUYLHZ–
D-AMP
board
CN1006
Terminal face is
below side.
terminal face
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
1 flexible flat cable (19P)
(CN1006)

Sony MHC-V6D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Impedance	5 Ω
Bass reflex	-
Speaker type	3-way
RMS rated power	1440 W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display type	LCD
Audio (L/R) in	1
USB 2.0 ports quantity	2
Analog signal format system	NTSC, PAL
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	ENG, CHI (SIMPL), THA, CHI (TR)
Disc types supported	CD-RW, DVD-R, DVD, CD, DVD+R, DVD+R DL, CD-R, DVD+RW, DVD-RW
Audio formats supported	WMA, MP3
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Equalizer modes	Custom, Pop, Flat, Rap, Rock

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
Package depth	417 mm
Package width	972 mm
Package height	381 mm
Package weight	21000 g
