Sony MHC-V6D Service Manual

83
MHC-V6D

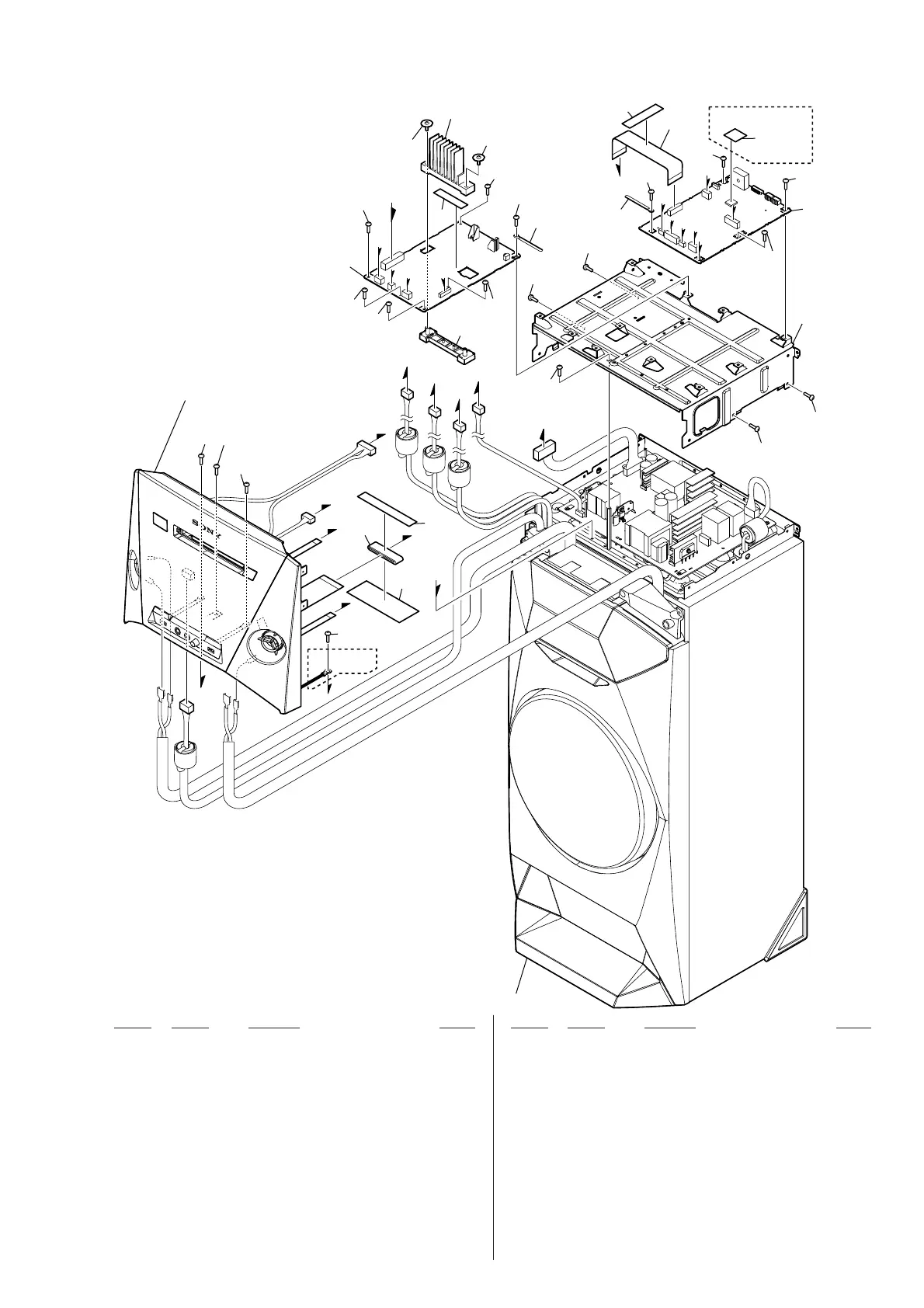

6-4. D-AMP BOARD, ARAGON BOARD SECTION
151 4-474-156-51 CUSHION (E 0.5)
152 4-474-153-91 CUSHION (H)
153 A-1988-841-A D-AMP BOARD, COMPLETE
154 4-527-091-01 THERMAL SHEET
155 4-435-965-01 SCREW+PTPWH 2.6XL (DIA8.0)
156 4-474-153-11 CUSHION (H)
157 A-2057-795-A ARAGON BOARD, COMPLETE (for SERVICE)
(E4)
157 A-2057-796-A ARAGON BOARD, COMPLETE (for SERVICE)
(IND)
157 A-2057-797-A ARAGON BOARD, COMPLETE (for SERVICE)
(SAF)
157 A-2057-798-A ARAGON BOARD, COMPLETE (for SERVICE)
(E93)
157 A-2057-799-A ARAGON BOARD, COMPLETE (for SERVICE)
(SP, MY)
157 A-2057-800-A ARAGON BOARD, COMPLETE (for SERVICE)
(TH)
157 A-2057-801-A ARAGON BOARD, COMPLETE (for SERVICE)
(E2)
157 A-2072-506-A ARAGON BOARD, COMPLETE (for SERVICE)
(E51)
157 A-2072-508-A ARAGON BOARD, COMPLETE (for SERVICE)
(MX)
158 4-151-153-21 SCREW, +PSW M3X10 (SPECIAL NECK)
159 3-704-515-32 SCREW (BV/RING)
FC1 1-457-413-11 CORE, FERRITE
FFC4 9-885-196-68 FY13 FFC F060 (1.0 mm_19P_AMP)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
O
I
G
S
K
Q
R
M
N
L
J
P
P
O
L
Q
N
M
FC1
I
G
K
R
H
H
J
S
FFC4
not supplied
152
159
159
159
159
159
159
159
159
159
159
159
159
159
159
159
159
159
151
front panel section
switching regulator section
not
supplied
not
supplied
not
supplied
not supplied
156
155
154
155
153
157
158
(E93)
159
not
supplied
(E93)
Ver. 1.3

Sony MHC-V6D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Impedance	5 Ω
Bass reflex	-
Speaker type	3-way
RMS rated power	1440 W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display type	LCD
Audio (L/R) in	1
USB 2.0 ports quantity	2
Analog signal format system	NTSC, PAL
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	ENG, CHI (SIMPL), THA, CHI (TR)
Disc types supported	CD-RW, DVD-R, DVD, CD, DVD+R, DVD+R DL, CD-R, DVD+RW, DVD-RW
Audio formats supported	WMA, MP3
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Equalizer modes	Custom, Pop, Flat, Rap, Rock

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
Package depth	417 mm
Package width	972 mm
Package height	381 mm
Package weight	21000 g
