47Names and Functions of Parts of the Control Panel
Chapter 2 Menus and Control Panel
a Mode selection buttons
EFF (effect): Press to save or recall an
effect.
SNAPSHOT: Press to save or recall a
snapshot.
SHOTBOX: Press to save or recall a
shotbox.
MCRO (macro): Press to save, recall or
edit a macro.
TRANS RATE (transition rate): Press to
set the transition rate.
Hold down this button, and press one of
the key row delegation buttons [KEY1]
to [KEY4] in the cross-point control
block to set an independent key
transition rate.
b Region selection buttons
These select the functional block (“region”)
of the control panel to which operations
apply.
You can select more than one region at the
same time.
The first button you press is taken as the
reference region, and lights green, while the
next pressed button lights amber.
With the exception of the [MASTER] and
[ALL] buttons, you can change the region
assignment to the buttons as desired in the
Setup menu.
MASTR: Press this, turning it on, to save
region information in a master
snapshot register or master timeline
register, or to recall such region
information.

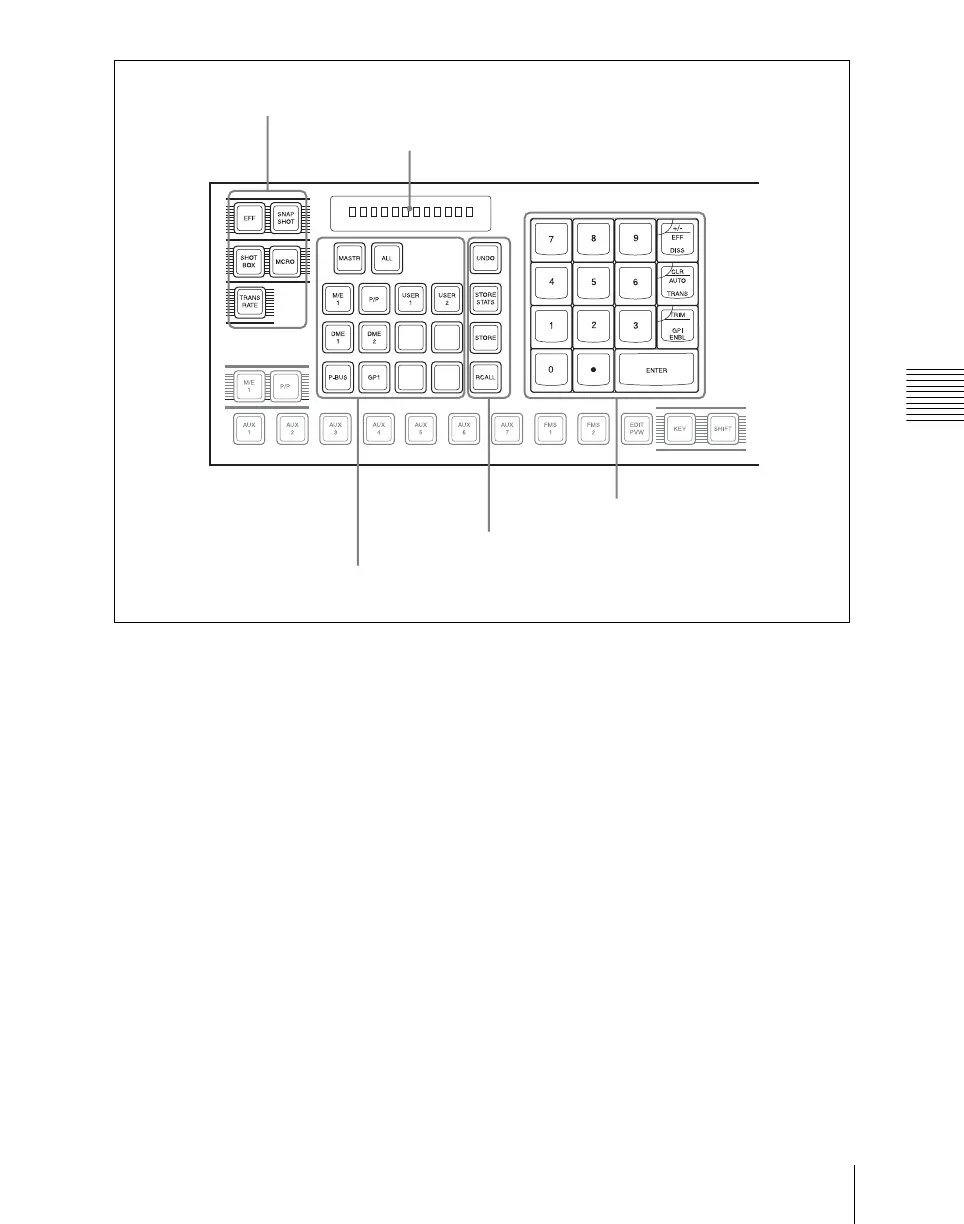

1 Mode selection buttons
5 Display
2 Region selection buttons
3 Function selection buttons
4 Numeric keypad
