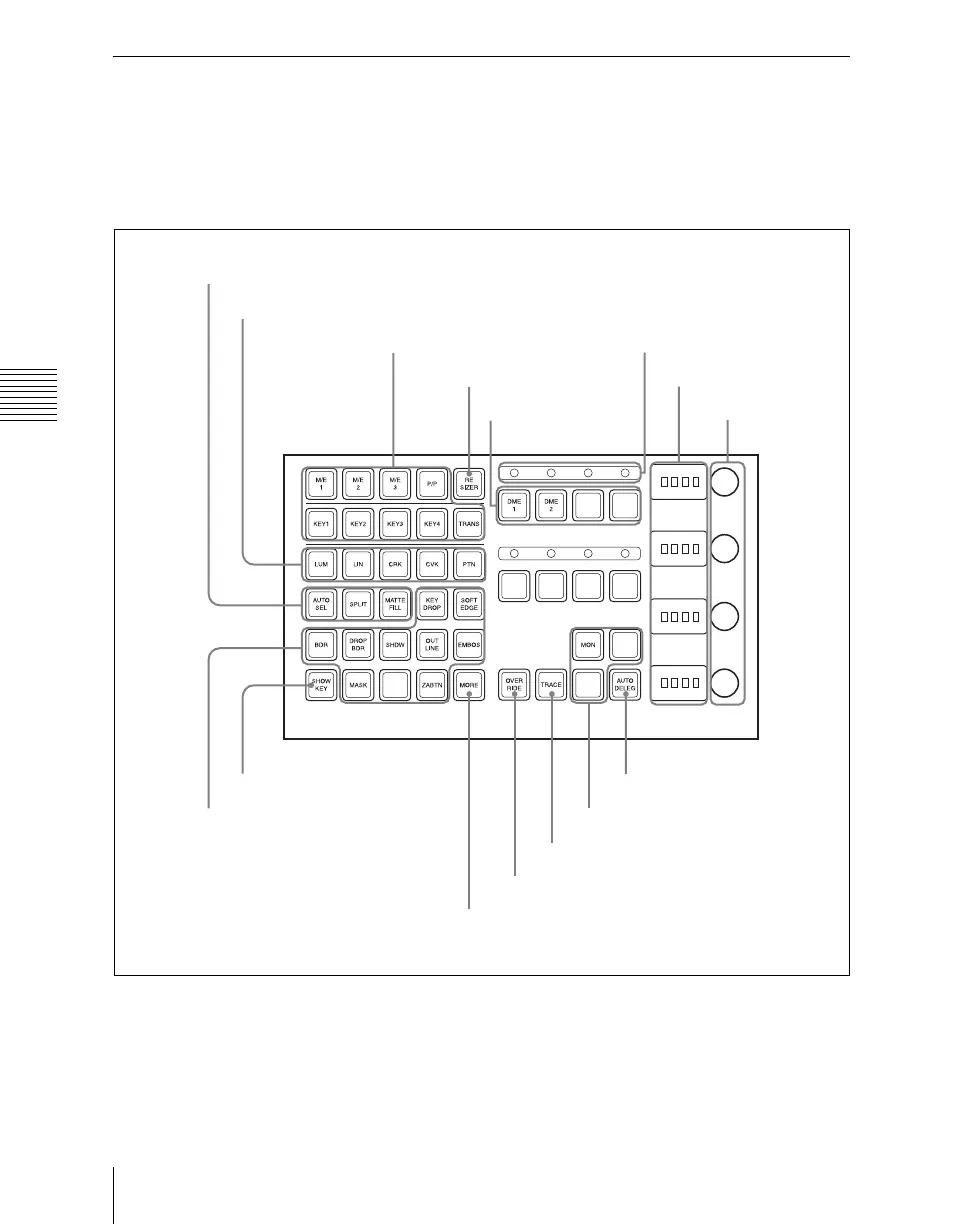

Names and Functions of Parts of the Control Panel
Chapter 2 Menus and Control Panel
Key Control Block (MKS-8035 Key Control Module,
Option)
Each of the M/E and PGM/PST banks
includes four keyers (for keys 1 to 4), and
you can delegate this control block to any
desired keyer. In this control block, you can
adjust and modify keys.
a Delegation buttons
Key delegation: Press one of the [KEY1]
to [KEY4] buttons to delegate the key
control block to the corresponding
keyer.
M/E delegation: Press one of the [M/E 1]
to [M/E 3], and [P/P] buttons to select
3 Key fill/key source selection buttons
2 Key type selection buttons
1 Delegation buttons
4 Key modifier buttons
9 DME channel
selection buttons
7 Knobs
8 Displays
qf AUTO DELEG button
qa Output destination specification
buttons
qd TRACE button
qs OVERRIDE button
5 MORE button
6 SHOW KEY button
q; ON AIR indicators
qg RESIZER button
To Next Page
