Signal Selection
Chapter 3 Signal Selection and Transitions
Signal Selection
You carry out signal selection with the cross-point buttons in the cross-point
control block of the M/E bank or PGM/PST bank, and the buttons in the
auxiliary bus control block.
Cross-point control block
Basics of Signal Selection
Each of the M/E bank and auxiliary bus control block has cross-point buttons
which are identified by numbers common to the bank and block, and a signal
is assigned to each number.
These buttons are identified by numbers common to all of the banks and block,
and a signal is assigned to each number.
SHIFTUTIL2UTIL1DME4DME3DME2DME1DSK4DSK3DSK2DSK1
XPT
HOLD

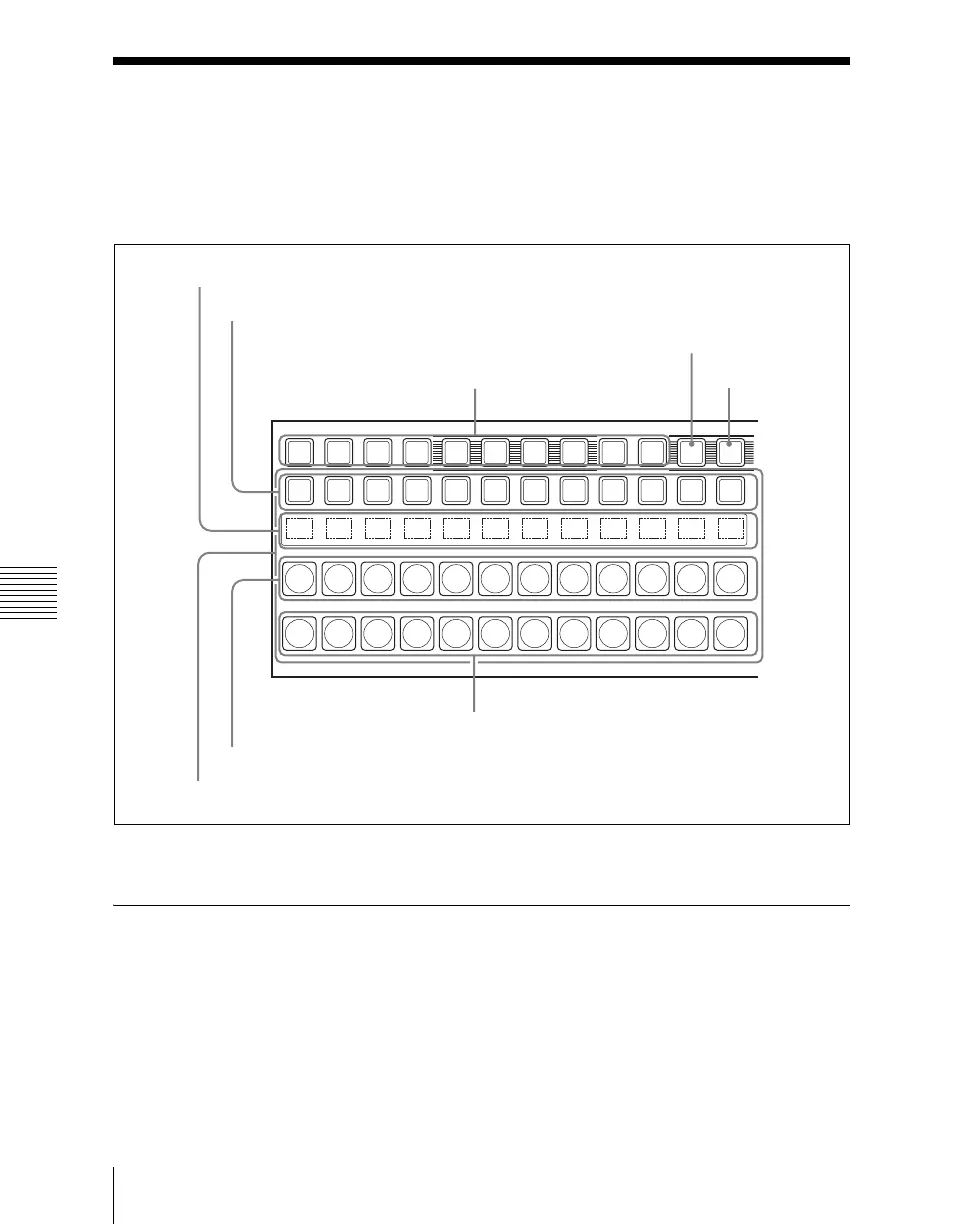

Source name displays
Key row
XPT HOLD button
Key delegation buttons
Background A row
Background B row
SHIFT button
Cross-point buttons
