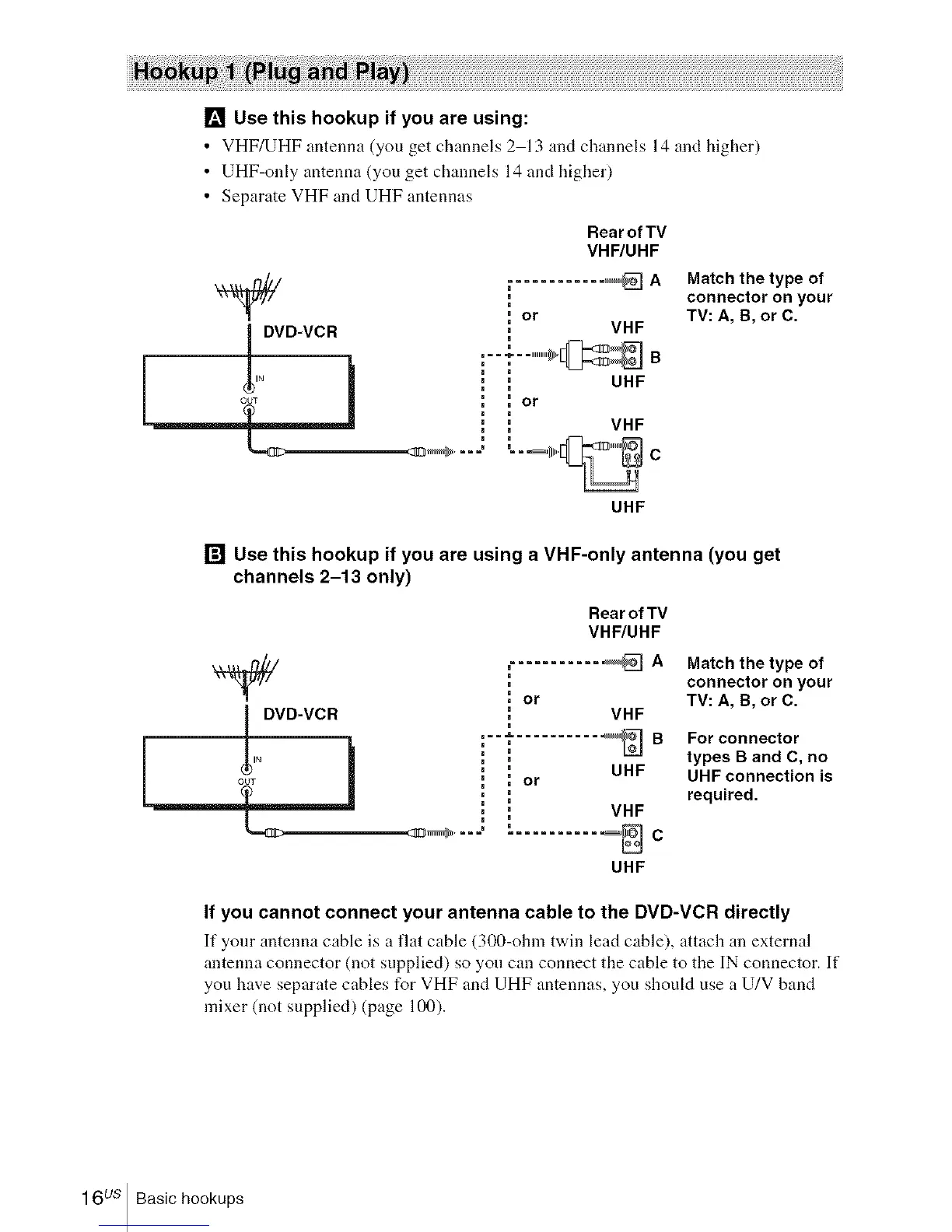

[] Use this hookup if you are using:
• VHF/UHF antenna (you get channels 2 13 and channels 14 and higher)
• UHF-only antenna (you get channels 14 and higher)
• Separate VHF and UHF antennas
I DVD-VCR
Rear of TV
VHF/UHF
............ _ A
or
VHF
B
UHF
or
VHF
I
UHF
Match the type of
connector on your
TV: A, B, or C.
[] Use this hookup if you are using a VHF-only antenna (you get
channels 2-13 only)
I DVD-VCR
Rear of TV
VHF/UHF
........... _A
or
VHF
--_" .......... _ B
UHF
or
VHF
C
Match the type of
connector on your
TV: A, B, or C.
For connector
types B and C, no
UHF connection is
required.
UHF
If you cannot connect your antenna cable to the DVD-VCR directly
It"your antenna cable is a flat cable (300-olnn twin lead cable), attach an external
antenna connector (not supplied) so yon can connect the cable to the IN connector. If
you have separate cables for VHF and UHF antennas, you should use a U/V band
mixer (not supplied) (page 100).
