Sony SLV-SE620 - 2. Disassembly; Mono Models Disassembly

SLV-SE220/SE420/SE620/SE720/SE727/SE820/SX720/SX727

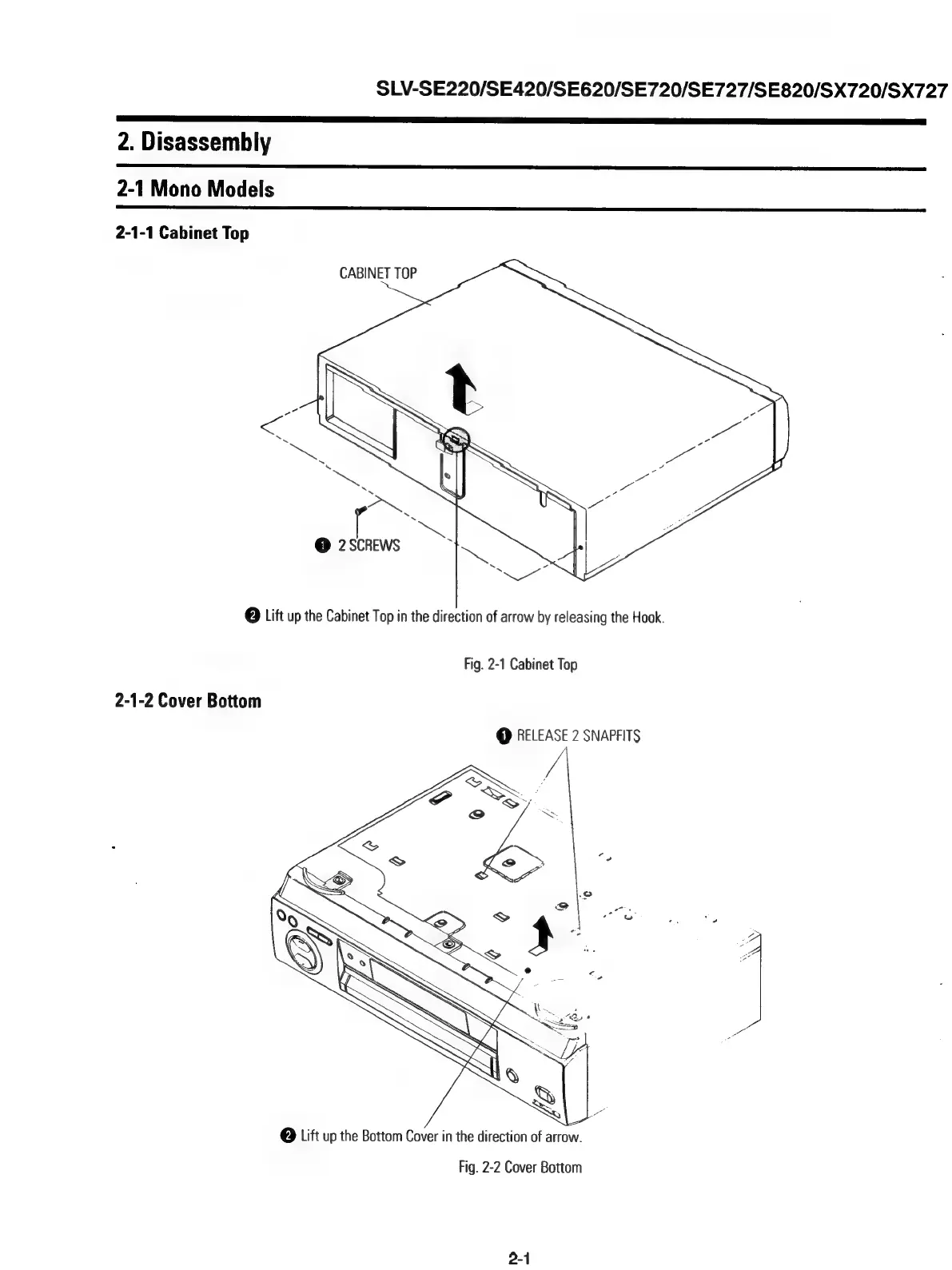

2. Disassembly
2-1 Mono Models
2-1-1 Cabinet Top
CABINET TOP
@ Lift up the Cabinet Top in the direction of arrow by releasing the Hook.
Fig. 2-1 Cabinet Top
2-1-2 Cover Bottom
@ RELEASE 2 SNAPFITS
@ Lift up the Bottom Cover in the direction of arrow.
Fig. 2-2 Cover Bottom
