Sony SLV-SE620 - Canal Plus and Other Issues

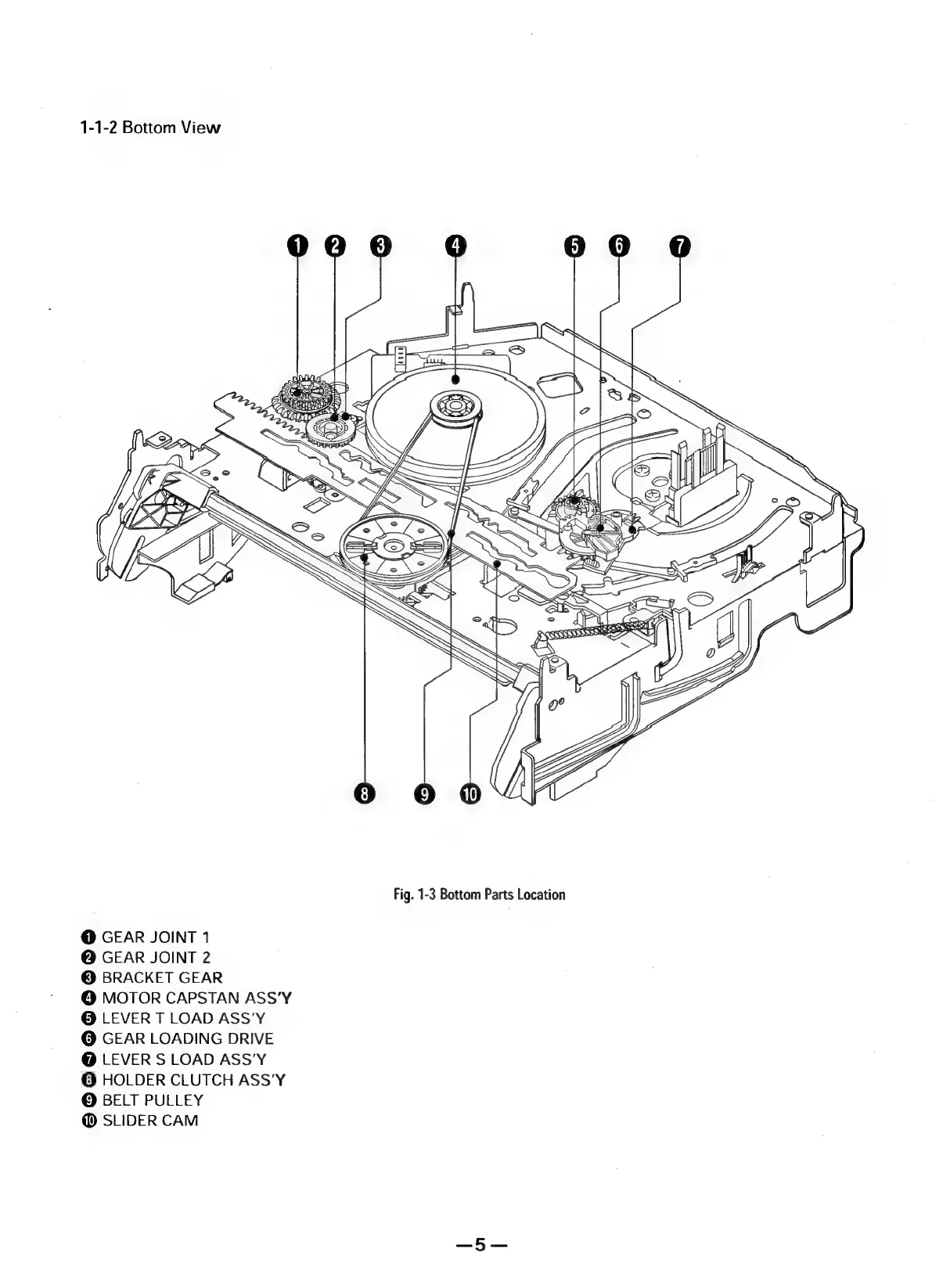

1-1-2 Bottom View
6
us
Fig. 1-3 Bottom Parts Location
@ GEAR JOINT 1
@ GEAR JOINT 2
© BRACKET GEAR
© MOTOR CAPSTAN ASS'Y
@ LEVER T LOAD ASS'Y
© GEAR LOADING DRIVE
@ LEVER S LOAD ASS'Y
@ HOLDER CLUTCH ASS'Y
© BELT PULLEY
@ SLIDER CAM
