@ FE HEAD
@ CYLINDER ASS'Y
@ ACE HEAD ASS'Y
@ LEVER UNIT PINCH ASS‘Y
@ LEVER #9 GUIDE ASS'Y
@ LEVER TENSION ASS’Y
@ BAND BRAKE ASS'Y
~
Vg ow wv 13

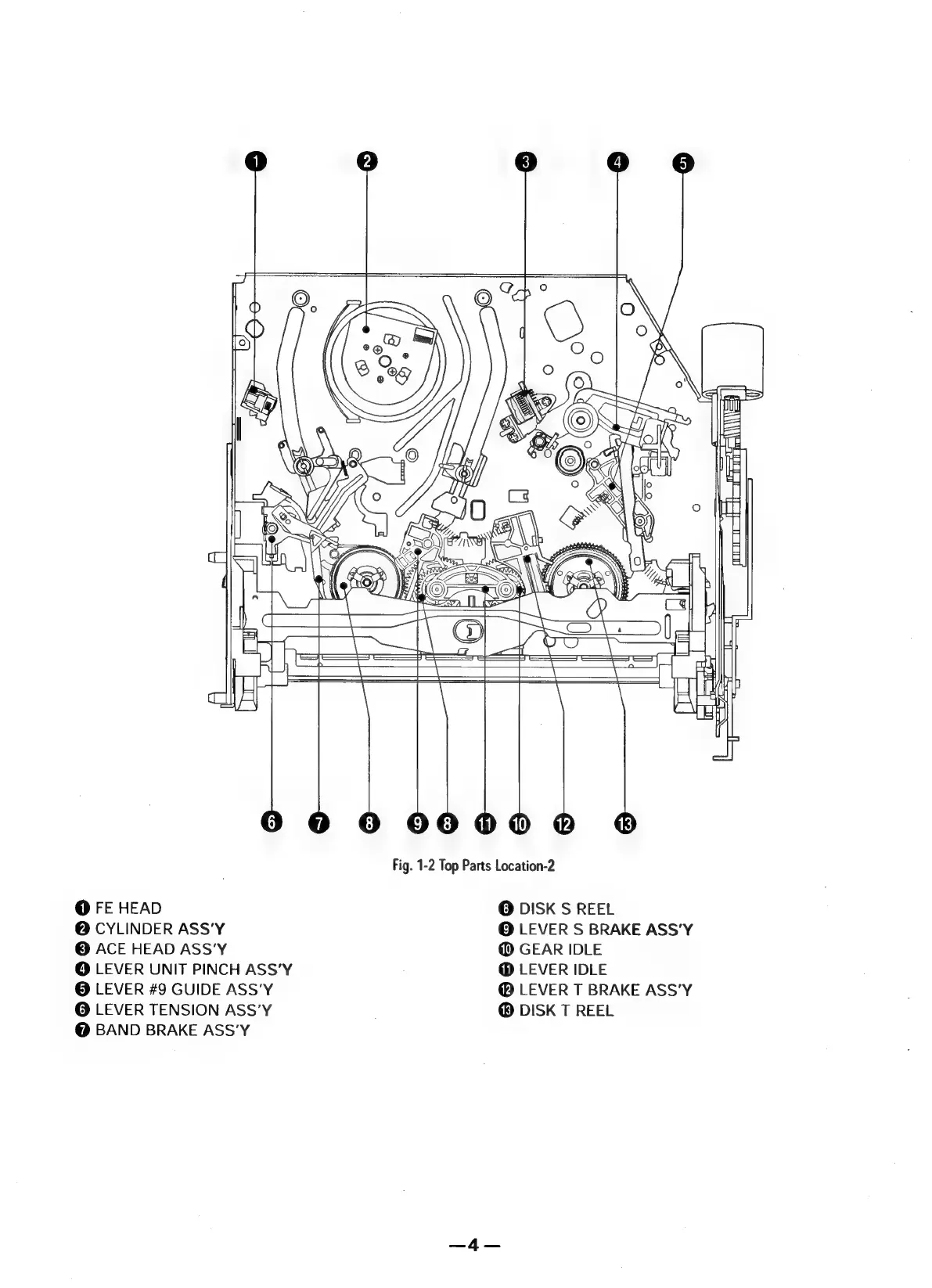

Fig. 1-2 Top Parts Location-2
© DISK S REEL
© LEVER S BRAKE ASS'Y
@ GEAR IDLE
@ LEVER IDLE
@ LEVER T BRAKE ASS'Y
@® DISK T REEL
A=
om m—rt—}
Ye
