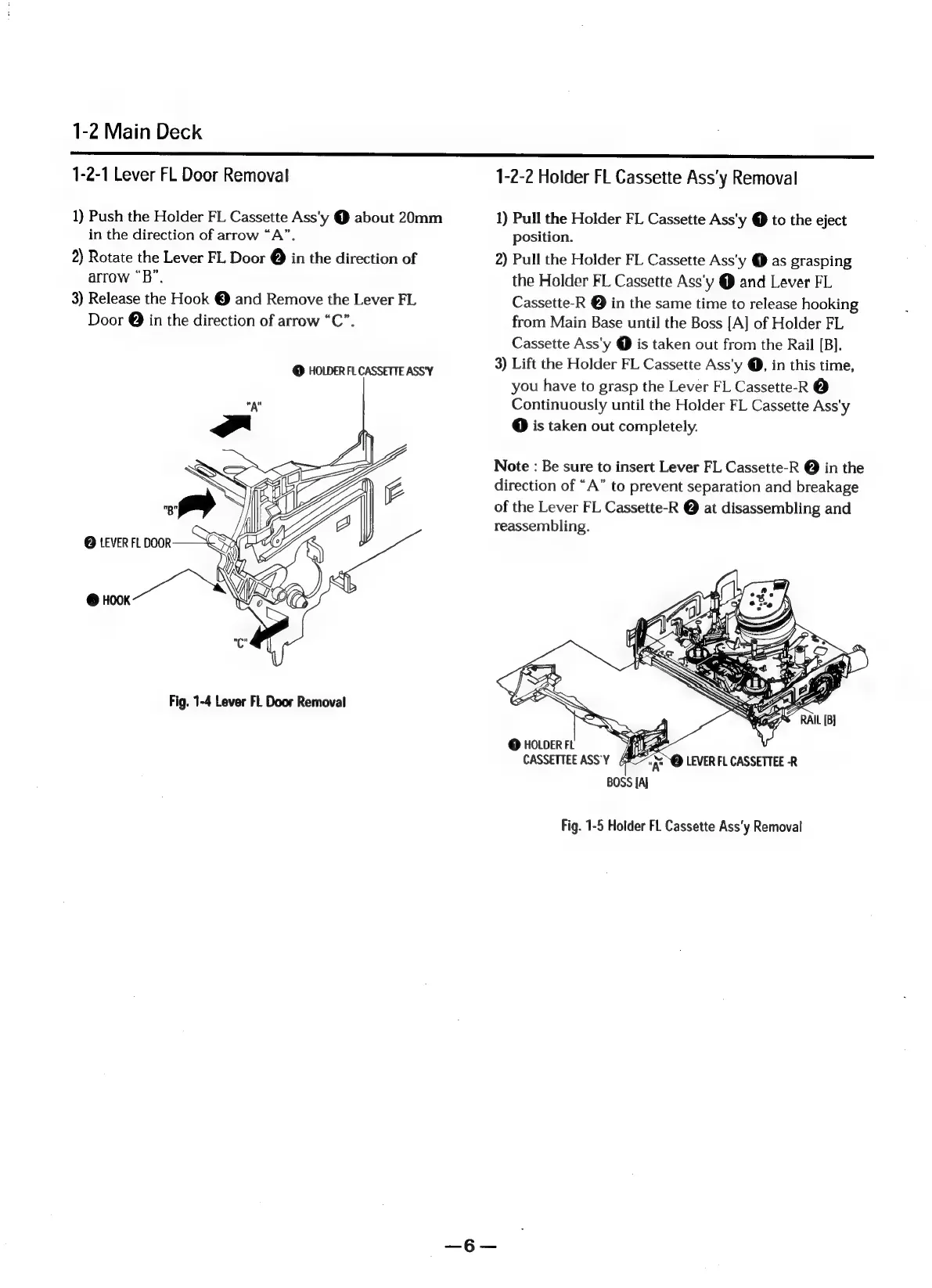

1-2 Main Deck
1-2-1 Lever FL Door Removal
1) Push the Holder FL Cassette Ass'y @ about 20mm
in the direction of arrow “A”.
2) Rotate the Lever FL Door @ in the direction of
arrow “B”,
3) Release the Hook @ and Remove the Lever FL
Door @ in the direction of arrow “C”.
@ HOLDER FL CASSETTE ASSY
Fig. 1-4 Lever FL Door Removal
1-2-2 Holder FL Cassette Ass’y Removal
1) Pull the Holder FL Cassette Ass'y @ to the eject
position.
2) Pull the Holder FL Cassette Ass'y @ as grasping
the Holder FL Cassette Ass'y @ and Lever FL
Cassette-R @ in the same time to release hooking
from Main Base until the Boss [A] of Holder FL
Cassette Ass'y @ is taken out from the Rail [B].
3) Lift the Holder FL Cassette Ass'y @, in this time,
you have to grasp the Lever FL Cassette-R @
Continuously until the Holder FL Cassette Ass'y
@ is taken out completely.
Note : Be sure to insert Lever FL Cassette-R @ in the
direction of “A” to prevent separation and breakage
of the Lever FL Cassette-R @ at disassembling and
reassembling.
BOSS JA]
Fig. 1-5 Holder FL Cassette Ass’y Removal
