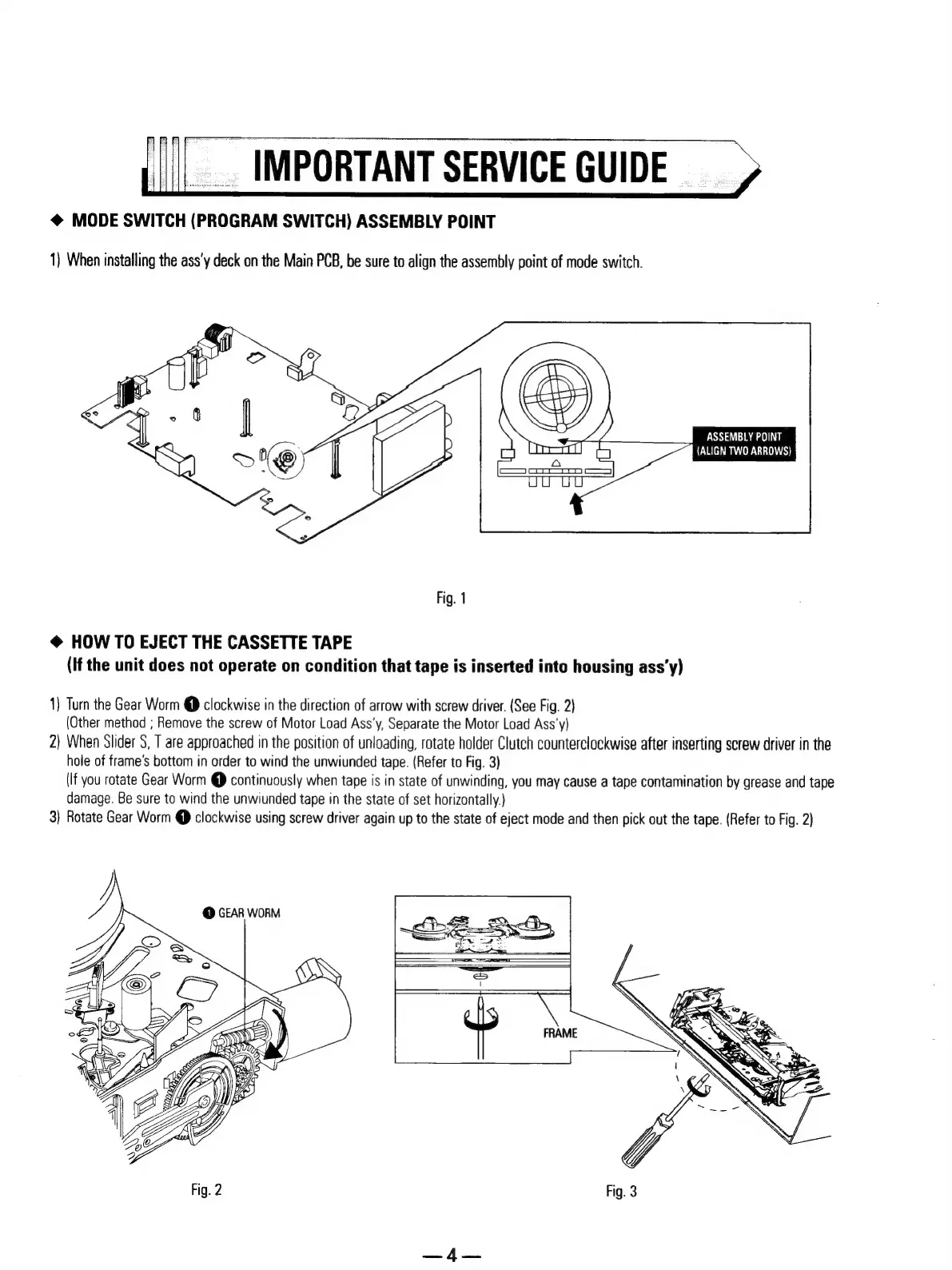

MODE
SWITCH
(PROGRAM
SWITCH)
ASSEMBLY
POINT
1}
When
installing
the
ass’y
deck
on
the
Main
PCB,
be
sure
to
align
the
assembly
point
of
mode
switch.
ASSEMBLY
POINT
(ALIGN
TWO
ARROWS)
Fig.
1
@
HOW
TO
EJECT
THE
CASSETTE
TAPE
(If
the
unit
does
not
operate
on
condition
that
tape
is
inserted
into
housing
ass’y)
1)
Turn
the
Gear
Worm
@
clockwise
in
the
direction
of
arrow
with
screw
driver.
(See
Fig.
2}
(Other
method
;
Remove
the
screw
of
Motor
Load
Ass’y,
Separate
the
Motor
Load
Ass’y)
2)
When
Slider
S,
T
are
approached
in
the
position
of
unloading,
rotate
holder
Clutch
counterclockwise
after
inserting
screw
driver
in
the
hole
of
frame's
bottom
in
order
to
wind
the
unwiunded
tape.
(Refer
to
Fig.
3)
(If
you
rotate
Gear
Worm
@
continuously
when
tape
is
in
state
of
unwinding,
you
may
cause
a
tape
contamination
by
grease
and
tape
damage.
Be
sure
to
wind
the
unwiunded
tape
in
the
state
of
set
horizontally.)
3)
Rotate
Gear
Worm
@
clockwise
using
screw
driver
again
up
to
the
state
of
eject
mode
and
then
pick
out
the
tape.
(Refer
to
Fig.
2)
@
GEAR
WORM
