Sony SLV-SE620 - Instrument Assembly (Mono Models)(SE220;SE420)

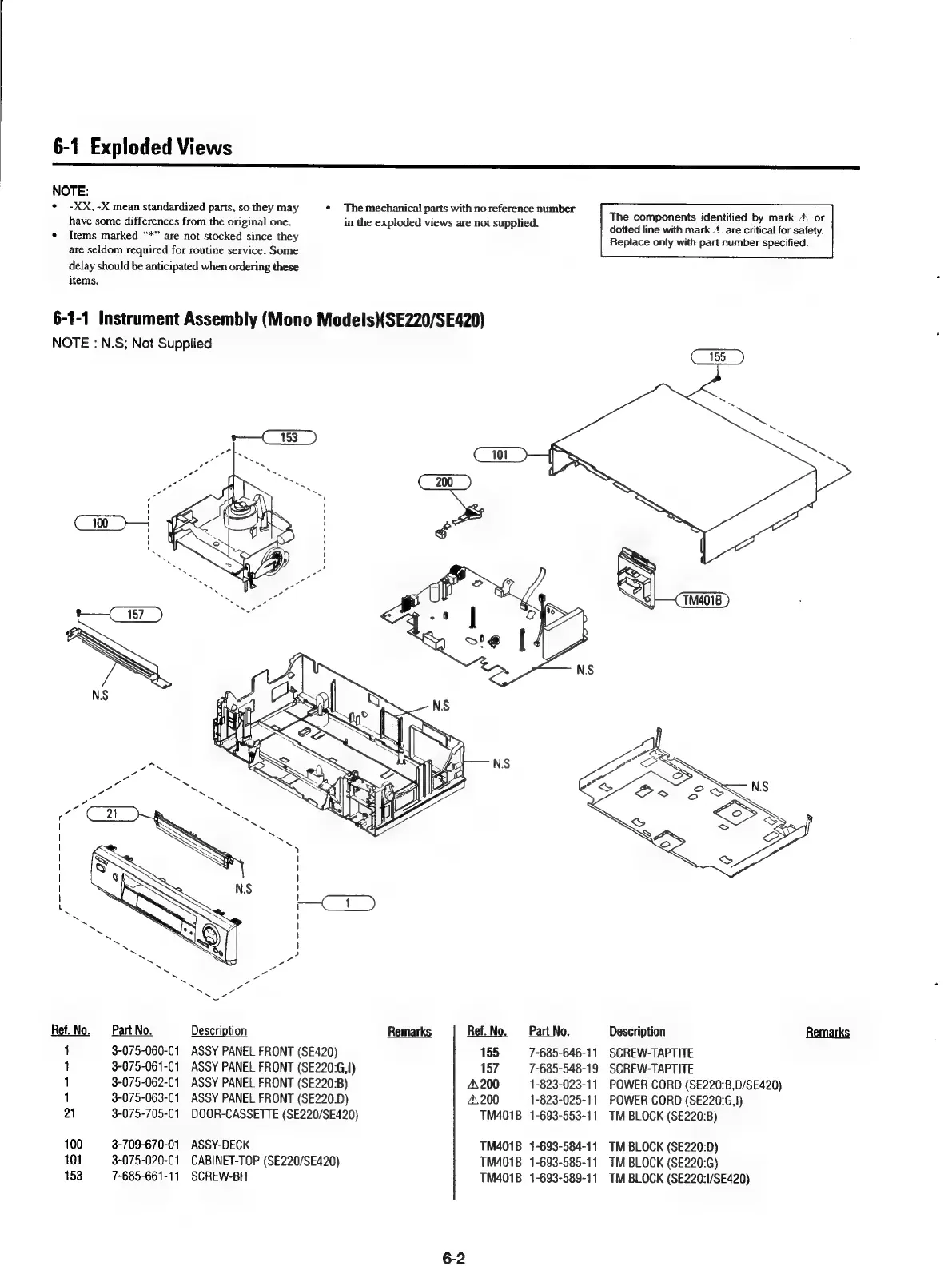

6-1 Exploded Views
a
a
=
is
SSS
NOTE:
° -XX,-X mean standardized parts, so they may °
have some differences from the original one.
¢ Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
6-1-1 Instrument Assembly (Mono Models)(SE220/SE420)
NOTE : N.S; Not Supplied
Description
Ref. No. Part No.
1 3-075-060-01
1 3-075-061-01
1 3-075-062-01
1 3-075-063-01
21 3-075-705-01
100 3-709-670-01
101 3-075-020-01
153 7-685-661-11
ASSY PANEL FRONT (SE420)
ASSY PANEL FRONT (SE220:G,!)
ASSY PANEL FRONT (SE220:B)
ASSY PANEL FRONT (SE220:D)
DOOR-CASSETTE (SE220/SE420)
ASSY-DECK
CABINET-TOP (SE220/SE420)
SCREW-BH
6-2
Ref. No.
155
157
A200
4.200
T4018
™M401B
TM401B
TM4018
The mechanical parts with no reference number
in the exploded views are not supplied.
Part No.
The components identified by mark 4. or
dotted line with mark “ are critical for safety.
Replace only with part number specified.
Description
7-685-646-11
7-685-548-19
1-823-023-11
1-823-025-11
1-693-553-11
1-693-584-11
1-693-585-11
1-693-589-11
SCREW-TAPTITE
SCREW-TAPTITE
POWER CORD (SE220:B,D/SE420)
POWER CORD (SE220:G,!)
TM BLOCK (SE220:B)
TM BLOCK (SE220:D)
TM BLOCK (SE220:G)
TM BLOCK (SE220:1/SE420)
