Sony SLV-SE620 - Gear Worm Wheel Removal; Motor Loading Assy Removal

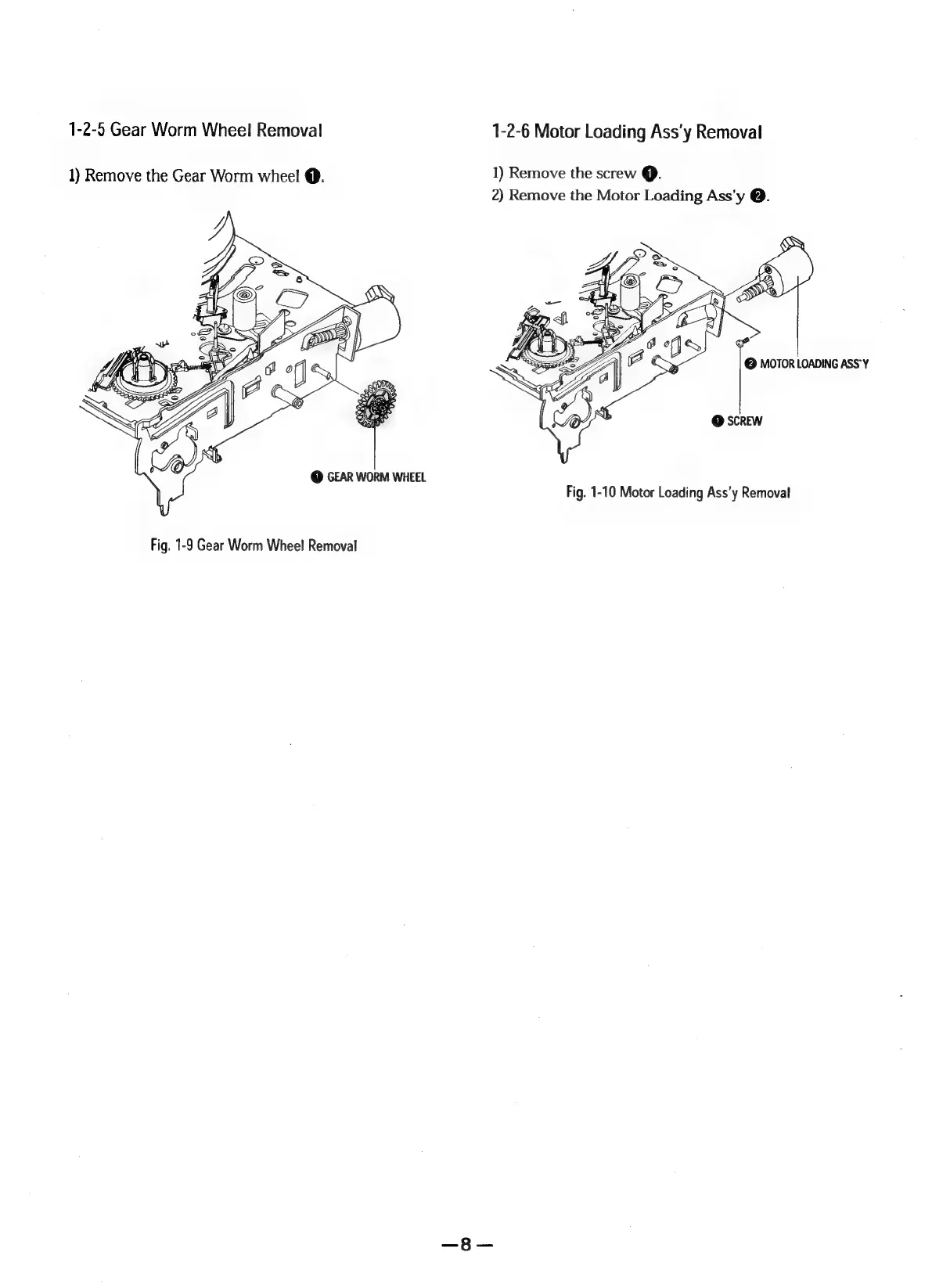

1-2-5 Gear Worm Wheel Removal 1-2-6 Motor Loading Ass'y Removal
1) Remove the screw @.
2) Remove the Motor Loading Ass’y @.
1) Remove the Gear Worm wheel @.
@ MOTOR LOADING ASS Y
@ SCREW
@ GEAR WORM WHEEL
Fig. 1-10 Motor Loading Ass'y Removal
Fig. 1-9 Gear Worm Wheel Removal
