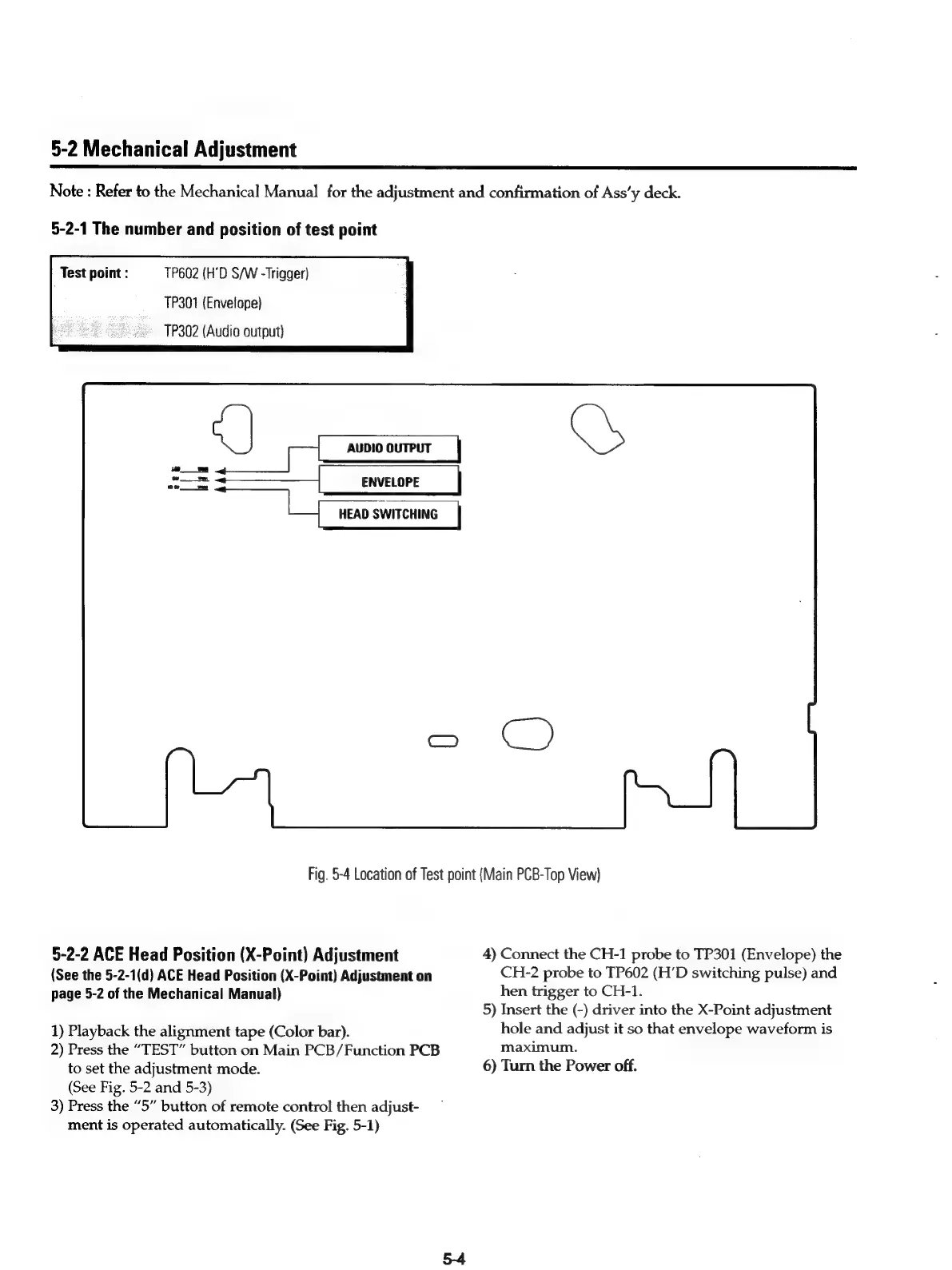

5-2
Mechanical
Adjustment
Note
:
Refer
to
the
Mechanical
Manual
for
the
adjustment
and
confirmation
of
Ass’y
deck.
5-2-1
The
number
and
position
of
test
point
Test
point
:
TP602
(H'D
S/W
-Trigger)
TP301
(Envelope)
TP302
(Audio
output)
ieee
|
ue.
A.
=
ENVELOPE
LL
HEAD
SWITCHING
|
Fig.
5-4
Location
of
Test
point
(Main
PCB-Top
View)
5-2-2
ACE
Head
Position
(X-Point)
Adjustment
4)
Connect
the
CH-1
probe
to
TP301
(Envelope)
the
(See
the
5-2-1(d)
ACE
Head
Position
(X-Point)
Adjustment
on
CH-2
probe
to
TP602
(H’D
switching
pulse)
and
page
5-2
of
the
Mechanical
Manual)
hen
trigger
to
CH-1.
5)
Insert
the
(-)
driver
into
the
X-Point
adjustment
1)
Playback
the
alignment
tape
(Color
bar).
hole
and
adjust
it
so
that
envelope
waveform
is
2)
Press
the
“TEST”
button
on
Main
PCB/Function
PCB
maximum.
to
set
the
adjustment
mode.
6)
Turn
the
Power
off.
(See
Fig.
5-2
and
5-3)
3)
Press
the
“5”
button
of
remote
control
then
adjust-
ment
is
operated
automatically.
(See
Fig.
5-1)
