Sony SLV-SE620 - Bracket Gear, Gear Joint 2, 1 Removal

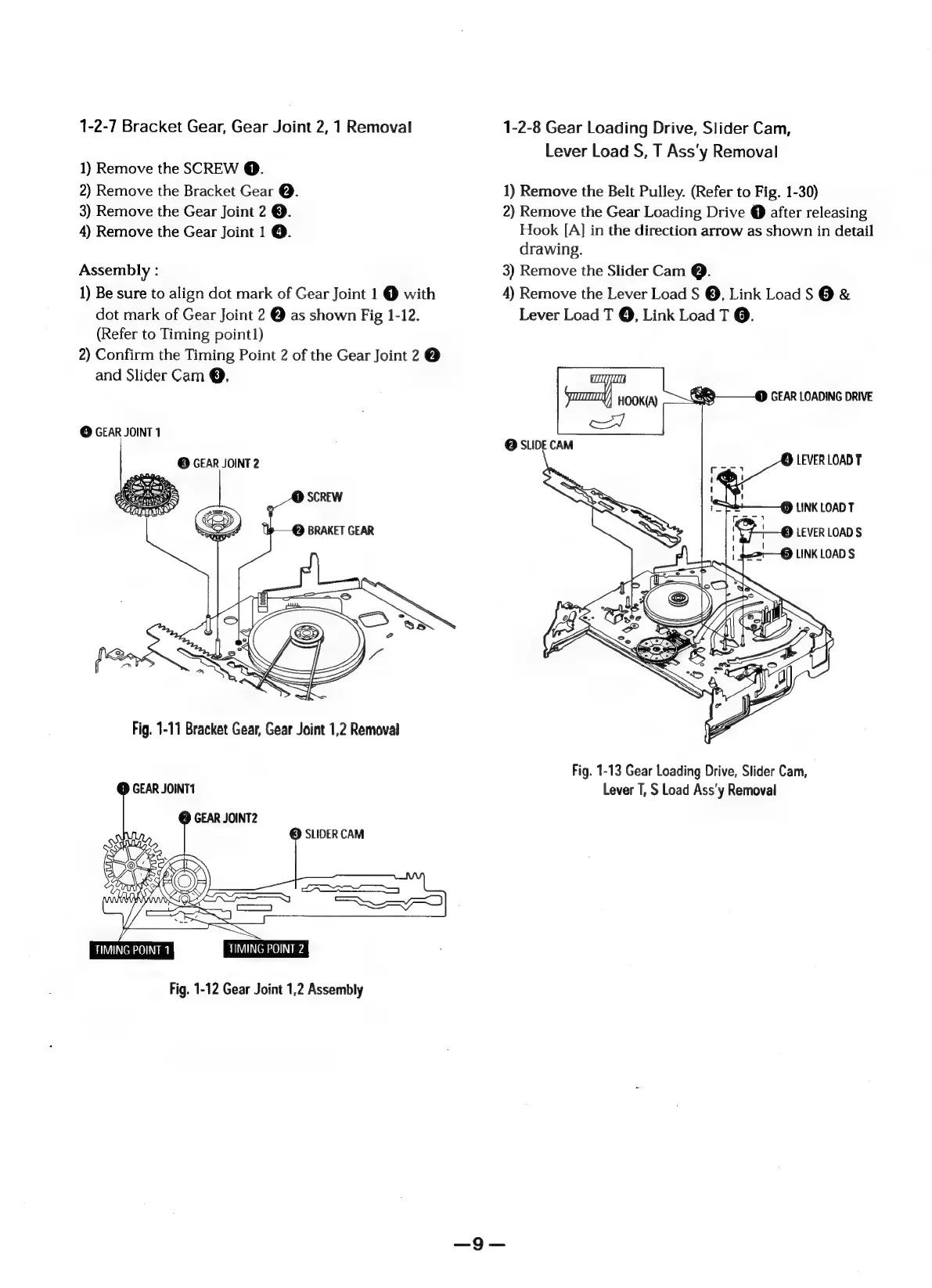

1-2-7 Bracket Gear, Gear Joint 2, 1 Removal
1) Remove the SCREW @.
2) Remove the Bracket Gear @.
3) Remove the Gear Joint 2 @.
4) Remove the Gear Joint 1 @.
Assembly :
1) Be sure to align dot mark of Gear Joint 1 @ with
dot mark of Gear Joint 2 @ as shown Fig 1-12.
(Refer to Timing point1)
2) Confirm the Timing Point 2 of the Gear Joint 2@
and Slider Cam @,
© GEAR JOINT 1
© GEAR JOINT 2
SLIDER CAM
=
TIMING POINT 2
Fig. 1-12 Gear Joint 1,2 Assembly
TIMING POINT 1
1-2-8 Gear Loading Drive, Slider Cam,
Lever Load S, T Ass'y Removal
1) Remove the Belt Pulley. (Refer to Fig. 1-30)
2) Remove the Gear Loading Drive @ after releasing
Hook [A] in the direction arrow as shown in detail
drawing.
3) Remove the Slider Cam @.
4) Remove the Lever Load S @, Link Load S$ @ &
Lever Load T @, Link Load T @.
>) GEAR LOADING DRIVE
LEVER LOAD T
© LINK LOAD T
© LEVER LOAD S
D LINK LOAD S
Fig. 1-13 Gear Loading Drive, Slider Cam,
Lever T, S Load Ass'y Removal
