Sony SLV-SE620 - Lever #9 Guide Assy Removal; FE Head Removal

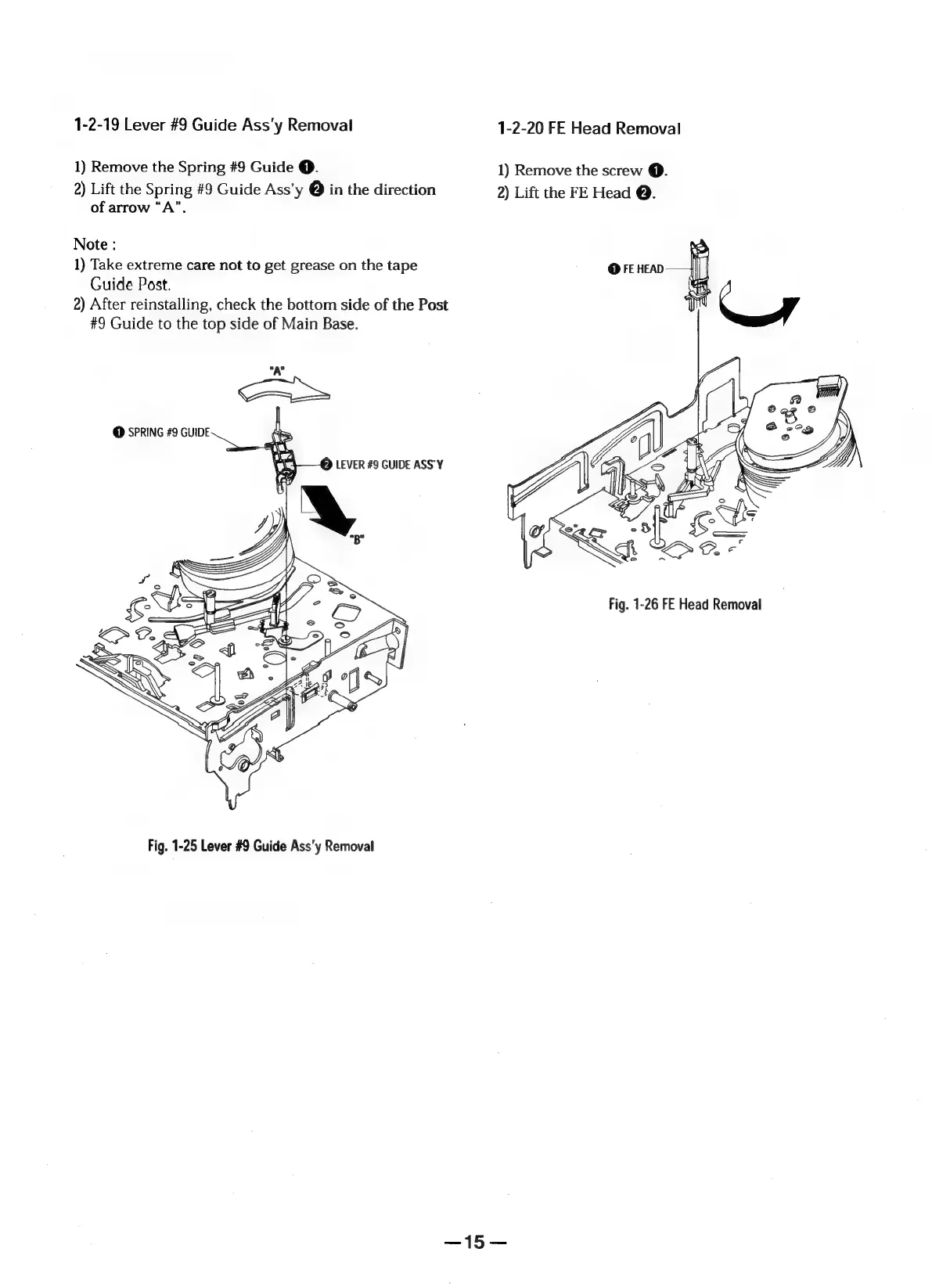

1-2-19 Lever #9 Guide Ass'y Removal 1-2-20 FE Head Removal
1) Remove the Spring #9 Guide @. 1) Remove the screw @.
2) Lift the Spring #9 Guide Ass’y @ in the direction 2) Lift the FE Head @.
of arrow “A”.
Note:
1) Take extreme care not to get grease on the tape @ FE HEAD
Guide Post. 4g
2) After reinstalling, check the bottom side of the Post
#9 Guide to the top side of Main Base.
@ SPRING #9 GUIDE
Fig. 1-26 FE Head Removal
Fig. 1-25 Lever #9 Guide Ass'y Removal
—{5—
