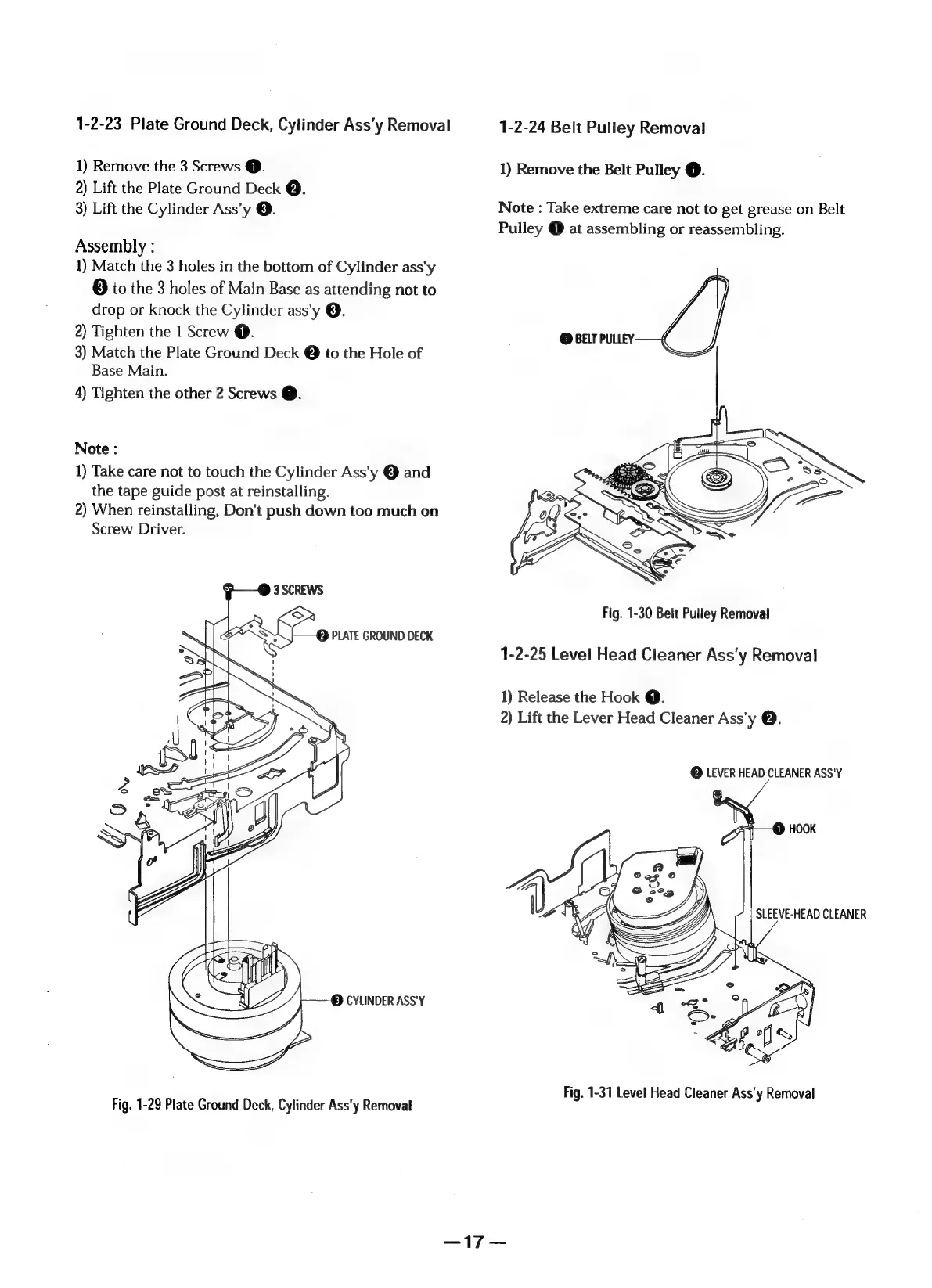

Sony SLV-SE620 - Plate Ground Deck, Cylinder Assy Removal; Belt Pulley Removal Oo

1-2-23
Plate
Ground
Deck,
Cylinder
Ass’'y
Removal
1-2-24
Belt
Pulley
Removal
1)
Remove
the
3
Screws
@.
1)
Remove
the
Belt
Pulley
@.
2)
Lift
the
Plate
Ground
Deck
@.
3)
Lift
the
Cylinder
Ass’y
@.
Note
:
Take
extreme
care
not
to
get
grease
on
Belt
Pulley @ at assembling or reassembling.
Assembly :
1) Match the 3 holes in the bottom of Cylinder ass'y
@ to the 3 holes of Main Base as attending not to
drop or knock the Cylinder ass'y @.
2) Tighten the 1 Screw oO. @ BELT PULLEY
3) Match the Plate Ground Deck @ to the Hole of
Base Main.
4) Tighten the other 2 Screws @.
Note :
1) Take care not to touch the Cylinder Ass'y @ and
the tape guide post at reinstalling.
2) When reinstalling, Don't push down too much on
Screw Driver.
Fig. 1-30 Belt Pulley Removal
1-2-25 Level Head Cleaner Ass'y Removal
1) Release the Hook @.
2) Lift the Lever Head Cleaner Ass’y @.
@ LEVER HEAD CLEANER ASS'Y
© CYLINDER ASS'Y
Fig. 1-31 Level Head Cleaner Ass'y Removal
Fig. 1-29 Plate Ground Deck, Cylinder Ass'y Removal
