SLV-SE220/SE420/SE620/SE720/SE727/SE820/SX720/SX727
3-3

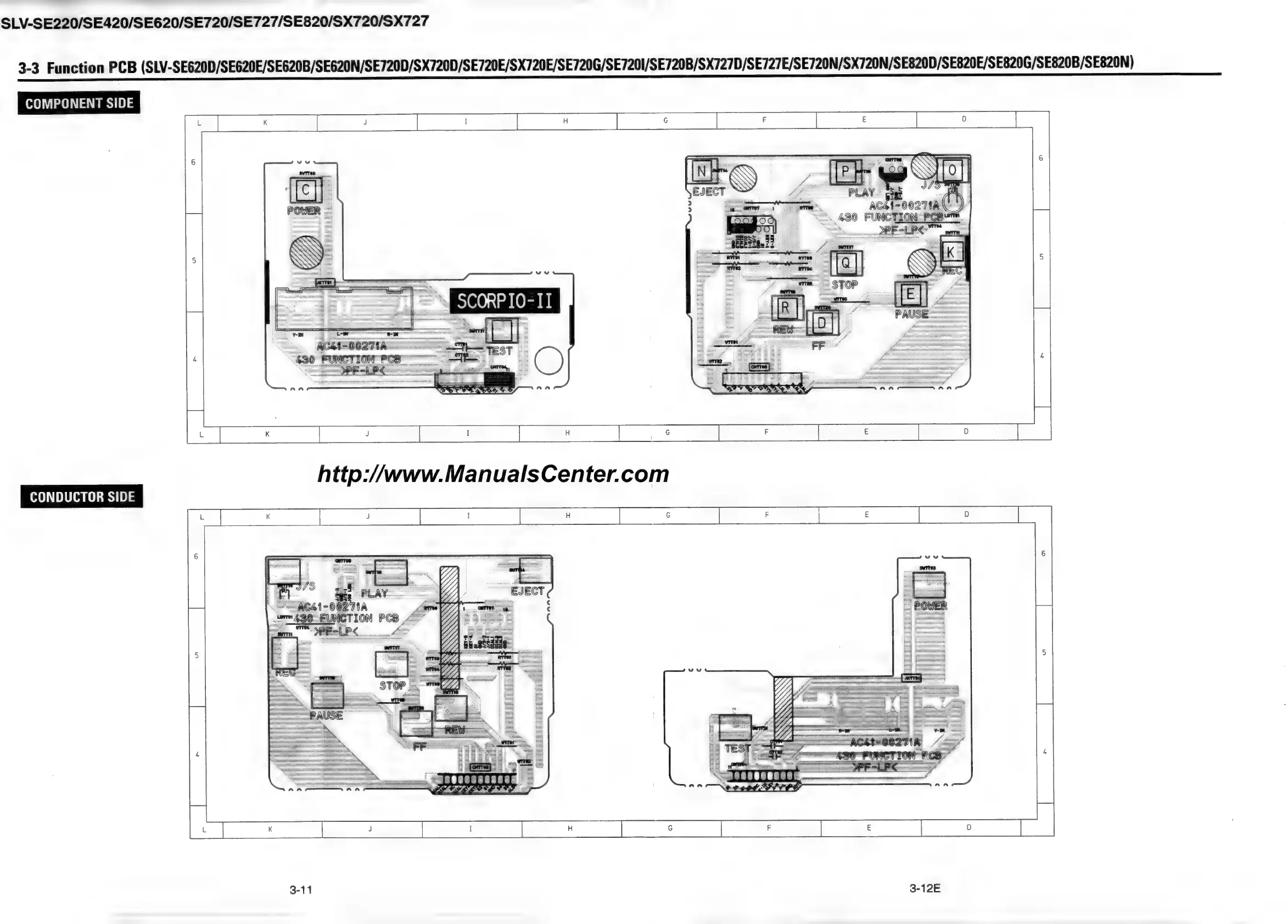

Function
PCB
(SLV-SE620D/SE620E/SE620B/SE620N/SE720D/SX720D/SE720E/SX720E/SE720G/SE7201/SE720B/SX727D/SE727E/SE720N/SX720N/SE820D/SE820E/SE820G/SE820B/SE820N)
COMPONENT SIDE
CONDUCTOR SIDE
