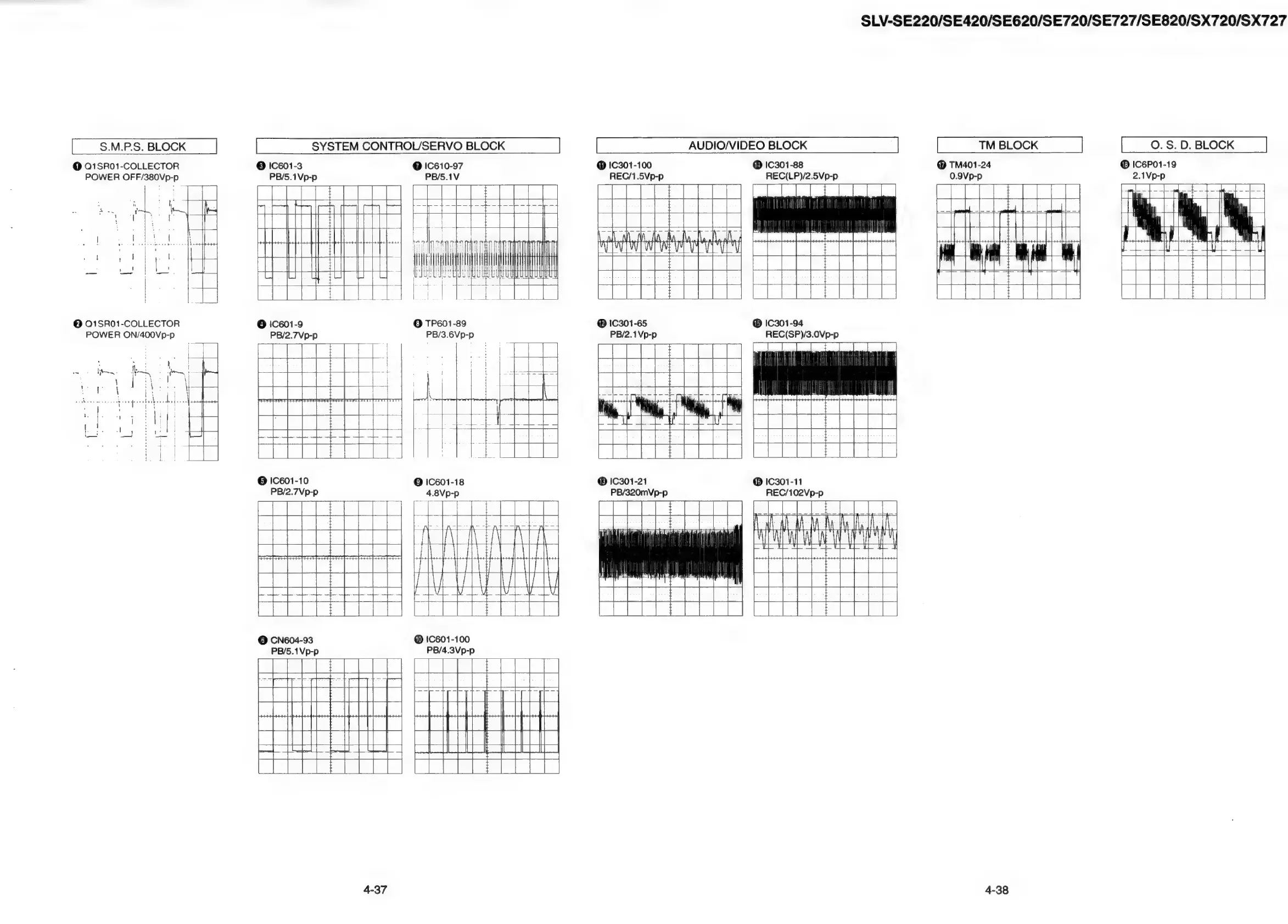

SLV-SE220/SE420/SE620/SE720/SE727/SE820/SX720/SX727
S.M.P.S.
BLOCK
|
SYSTEM
CONTROL/SERVO
BLOCK
AUDIO/VIDEO
BLOCK
TM
BLOCK
0.
S.
D.
BLOCK
@ Q1SR01-COLLECTOR © 1C601-3 @ |C610-97 @® 1C301-100 ® 1C301-88 @ TM401-24 @® IC6P01-19
POWER OFF/380Vp-p PB/5.1Vp-p PB/5.1V REC/1.5Vp-p REC(LP)/2.5Vp-p 0.9Vp-p 2.1Vp-p
@ Q1SR01-COLLECTOR
POWER ON/400Vp-p
© 1C601-9 © TP601-89
PB/2.7Vp-p
® 1301-65 ® 1C301-94
PB/2.1Vp-p REC(SP)/3.0Vp-p
|
PB/3.6Vp-p
© 1C601-10 @ 1C601-18 ® 1C301-21 @® 1C301-11
PB/2.7Vp-p 4.8Vp-p PB/320mVp-p REC/102Vp-p
se eee ee oe ae |
-
{
==
ii
ty
dha
de
ia
ii
| ! \ Ley | |
Vil
ied Ae Ie
Ha ld nd
© CN604-93 @ IC601-100
PB/5.1Vp-p PB/4.3Vp-p
4-37 4-38
