Connecting
components
with
analog
audio
jacks
The

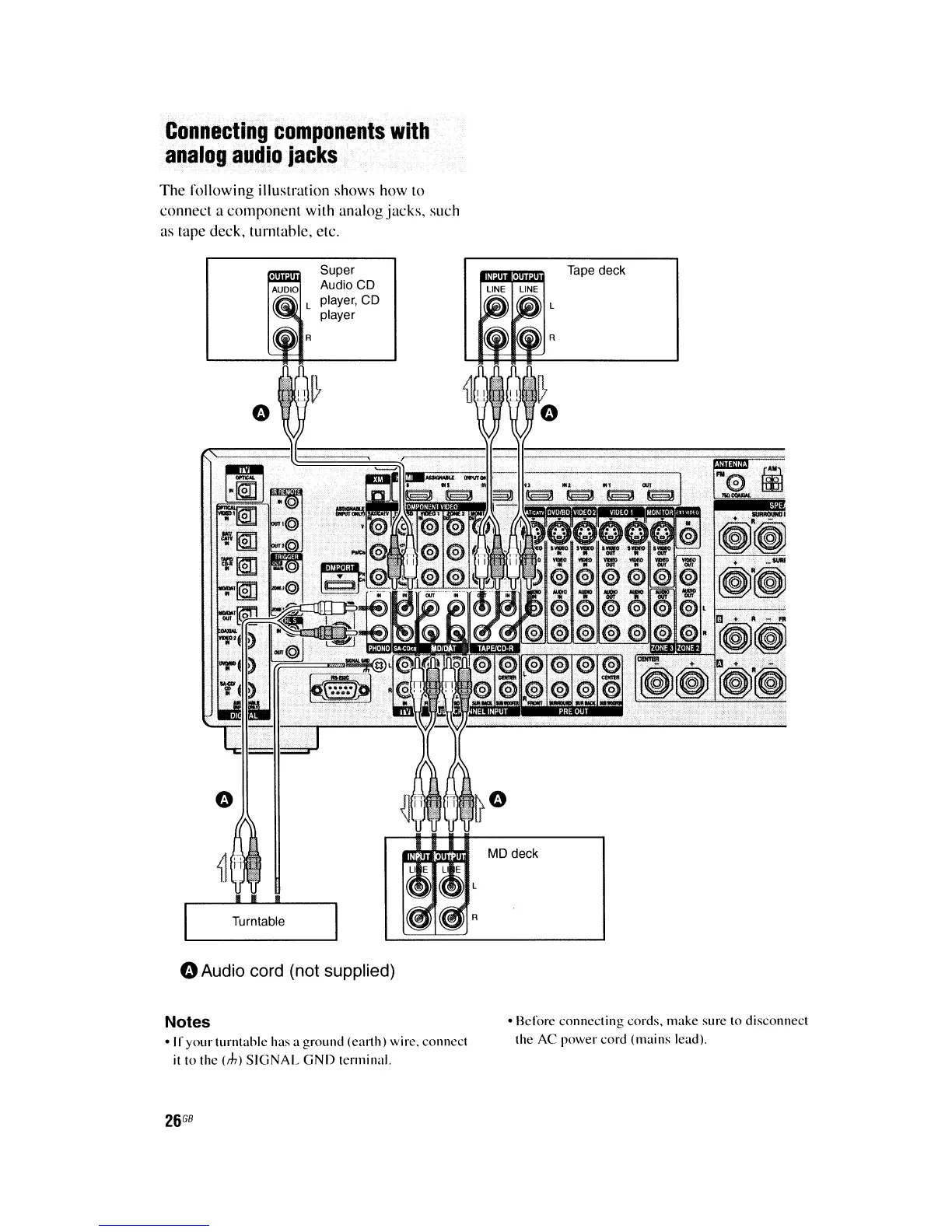

following illustration shows how to
connect a component with analog jacks, such
as tape deck, turntable, etc.
Super
Audio CD
l player, CD
player
oAudio cord (not supplied)
Notes
• Iryour lurntable has a ground (eal1h) wire. connect
il
to the
(rl,)
SIGNAL
GND
terminal.
26
G8
Tape deck
MD deck
• Before connecting cords, make sure 10 disconnect
the AC power
cord
(mains lead).
