Sony STR-DA5300ES - 4 A: Connecting the Audio Components

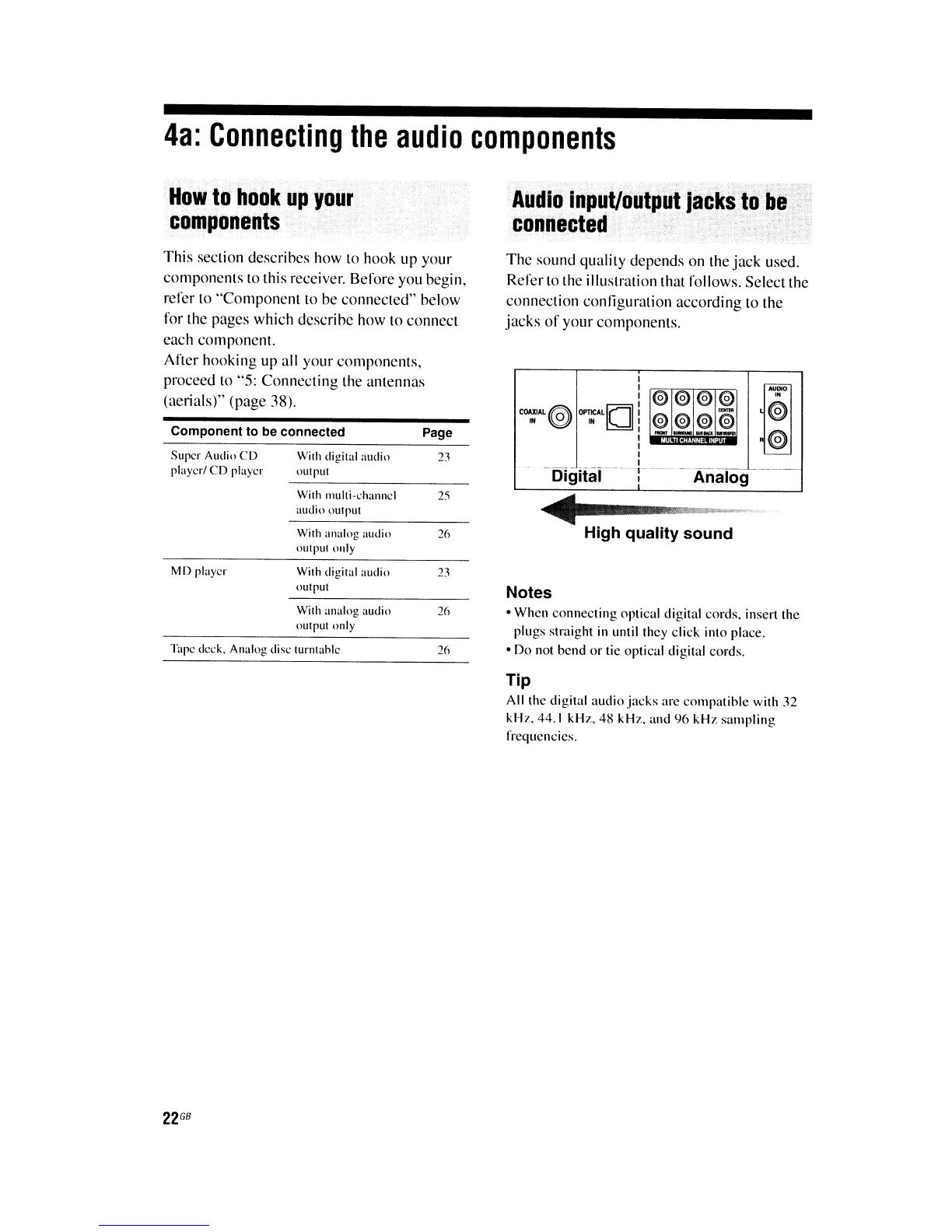

4a: Connecting the audio components
How to hook up your
components
This section descrihes how to hook up your
components to this receiver. Before you hegin,
refer to "Component to be connected" below
for the pages which descrihe how to connect
each component.
After hooking up all your components,
proceed to "5: Connecting the antennas
(aerials)" (page 38).
Component to be connected Page
Supcr Audio CD Wilh digital audio 23
playerl
CD player output
With l1lulli·channcl
25
audio output
With analog audio 26
output only
MD playcr
With digital audio
23
output
With analog audio 26
output only
Tape deck. Analog disc turntable
26
22
G8
Audio input/output jacks to be
connected
The sound quality depends on the jack used.
Refer to the illustration that follows. Select the
connection configuration according to the
jacks of your components.
-- --------o--~ --~--
Analog
.......
High quality sound
Notes
• When connecting optical digital cords. insert the
ptugs straight
in until they click into place.
• Do not bend
or tie optical digital cords.
Tip
All the digital audio jacks are compatible with 32
kHz. 44.t kHz. 48 kHz. and 96 kHz sampling
frequencies.
