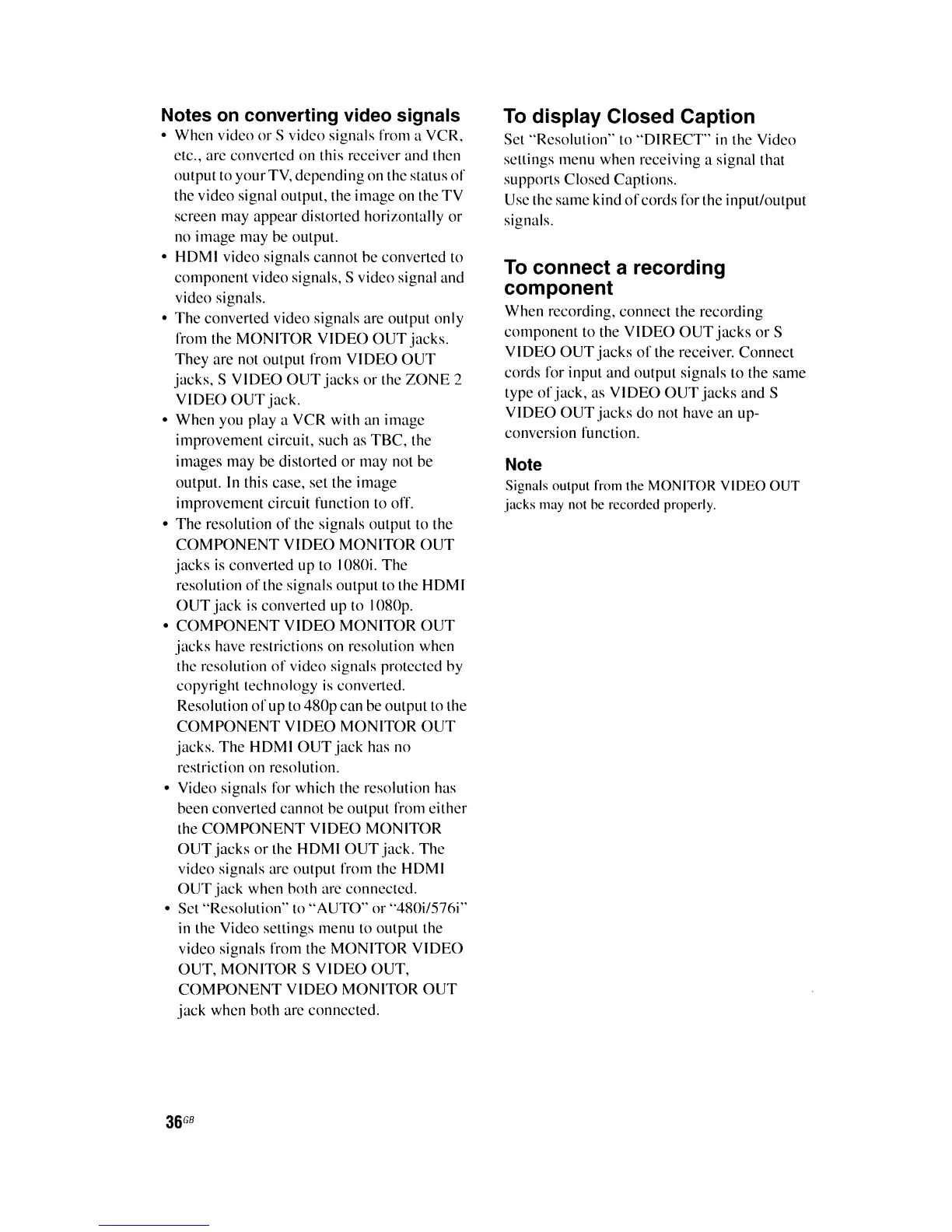

Notes on converting video signals
• When video
or
S vidco signals from a VCR,
etc., arc converted on this recciver and then
output to
your
TV,
depending
on thc status
of
the video signal output,
the
image on
the
TV
screen may
appear
distorted hori7.0ntally
or
no
may
be output.
•
HDMI
video signals
cannot
he convertcd to
component
video signals, S video signal and
video signals.
•
The
converted video signals are output
only
from the
MONITOR
VIDEO
OUT
jacks.
They
are not output from
VIDEO
OUT
jacks,
S
VIDEO
OUT
jacks
or
the
ZONE
2
VIDEO
OUT
jack.
• When you
playa
VCR
with an image
improvement
circuit, such as
TBC,
the
images may be distorted
or
may not
be
output.
In
this case, set the
improvement
circuit function to
ofT.
•
The
resolution
of
the signals output to the
COMPONENT
VIDEO
MONITOR
OUT
jacks
is converted
up
to I080i.
The
resolution
of
the signals output to the
HDMI
OUT
jack
is converted up to I080p.
•
COMPONENT
VIDEO
MONITOR
OUT
jacks
have rcstrictions on resolution whcn
thc resolution
of
video signals protectcd
hy
copy
tight
technology
is
converted.
Resolution
of
up
to
480p
can
be
output
to
the
COMPONENT
VIDEO
MONITOR
OUT
jacks.
The
HDMI
OUT
jack
has
no
restriction on resolution.
• Video signals for which the rcsolution has
been converted cannot
be
output from
either
the
COMPONENT
VIDEO
MONITOR
OUT
jacks
or
the
HDMI
OUT
jack.
The
video signals are output from thc
HDMI
OUT
jack
when hoth arc
connected.
• Set
"Resolution"
to
"AUTO"
or
"480i/576i"
in the Video settings menu to
output
the
video signals from the
MONITOR
VIDEO
OUT,
MONITOR
S
VIDEO
OUT,
COMPONENT
VIDEO
MONITOR
OUT
jack
when hoth are
connected.
36
GB
To
display Closed Caption
Set
"Resolution"
to
"DIRECT'
in the Video
settings menu when receiving a signal that
supports
Closed Captions.
Use the
same
kind
of
cords
for the input/output
signals.
To connect a recording
component
When
recording,
connect
the
recording
component
to the
VIDEO
OUT
jacks
or
S
VIDEO
OUT
jacks
of
the receiver.
Connect
cords
for input and output signals
to
the
same
type
of
jack,
as
VIDEO
OUT
jacks
and S
VIDEO
OUT
jacks
do
not have an up-
conversion function.
Note
Signals output
from
the
MONITOR VIDEO OUT
jacks
Illay
not
be
recorded properly.
