Operating elements
4.1 Clamping lever
4.2 Operating elements

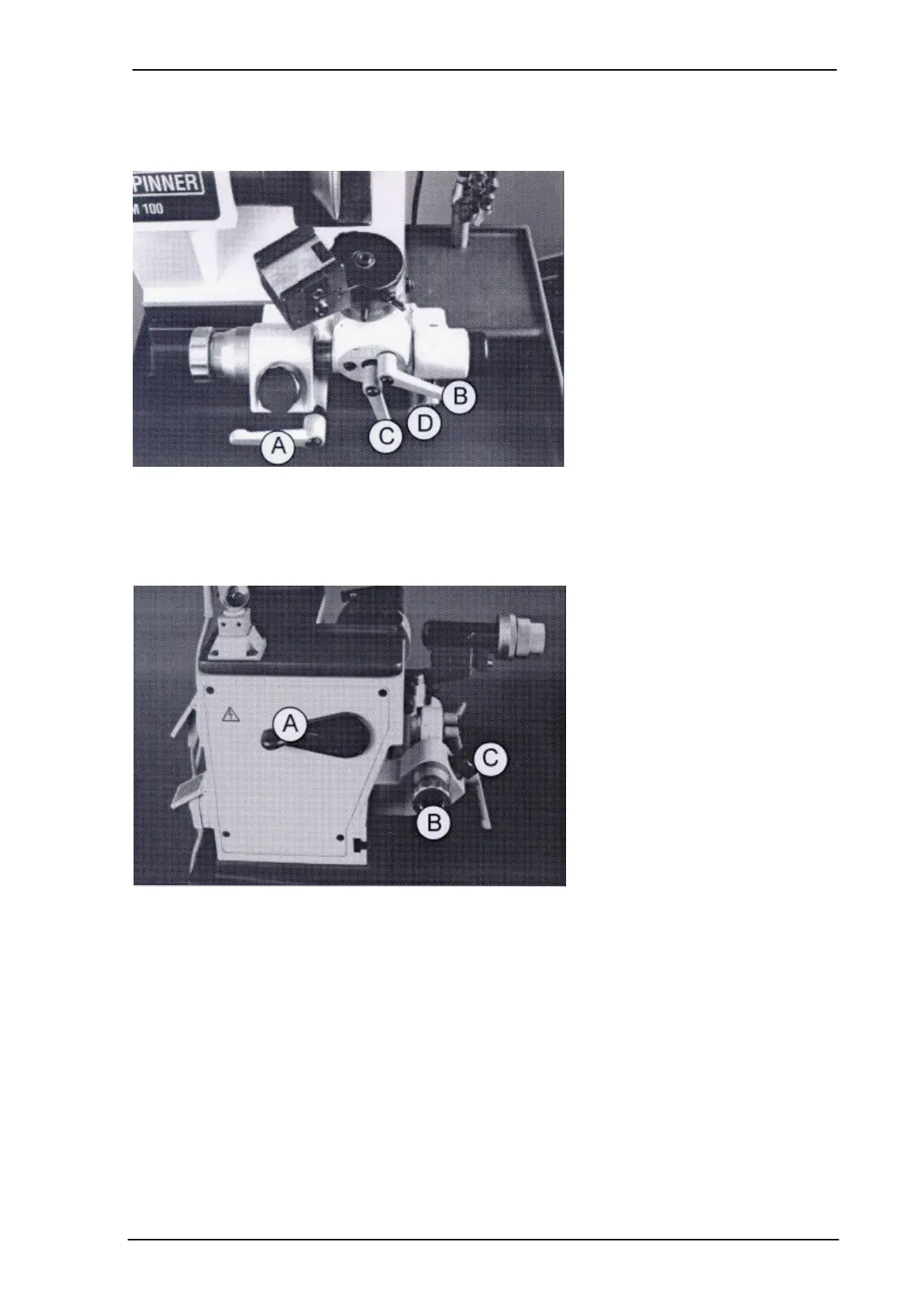

Figure 4-1: Operating elements
A)
Central clamp for complete
swivel holder
B) Clamp for swivel movement
C) Clamp for rotary movement
D) Clamp for tilting movement
A)
Lever for changing the grinding
wheel
B)
Adjusting screw for the infeed of
the tool to the grinding wheel
C) Stopper for tilting movement
