Handling:

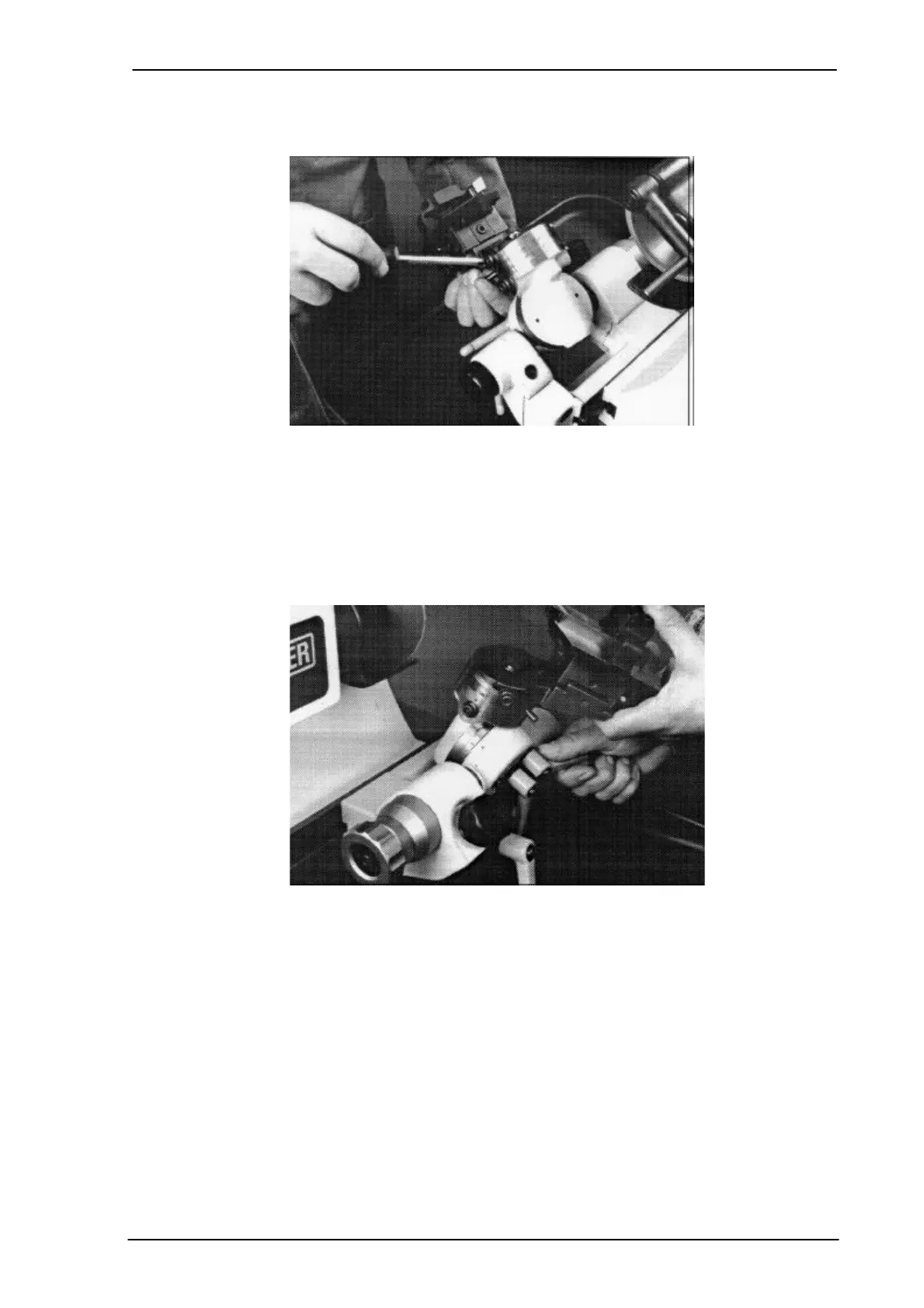

The picture figures how to adjust the turning angle. With the levers L the angle scale is to
be set to the correct value. After that tighten the stoppers E with the allenkey screw driver.
Figure 10-7: Handling
Adjusting the clearance angle:
To adjust the clearance angle, the lever B is to be opened and the universal swivel holder
is to be moved to the side. The scale allows for a movement of 45 degrees to each side.
One graduation mark on the scale represents two degrees of clearance angle at the
ground tool. After swivelling the lever B is to be tightened again and with this the position
is fixed.
Figure 10-8: Adjusting the clearance angle
Handling: The picture figures how to adjust the clearance angle. Using the clamping lever
B the fixing device is opened. The universal swivel holder can be swivelled to the desired
position for the clearance angle. After that, the clamping lever is to be tightened again.
