12-3
SPINNER Werkzeugmaschinenfabrik GmbH
SM-1-03/02
Clamping plate for square tools
Stopper:
The clamping plate can be shifted on the tool holder in horizontal direction. The roughly
adjustable stopper serves for pre-positioning. Fine adjustments can be carried out using
the integrated micrometer screw. This one has a scale of 0.02mm. One revolution of the
micrometer screw results in a position change of 0.5mm.

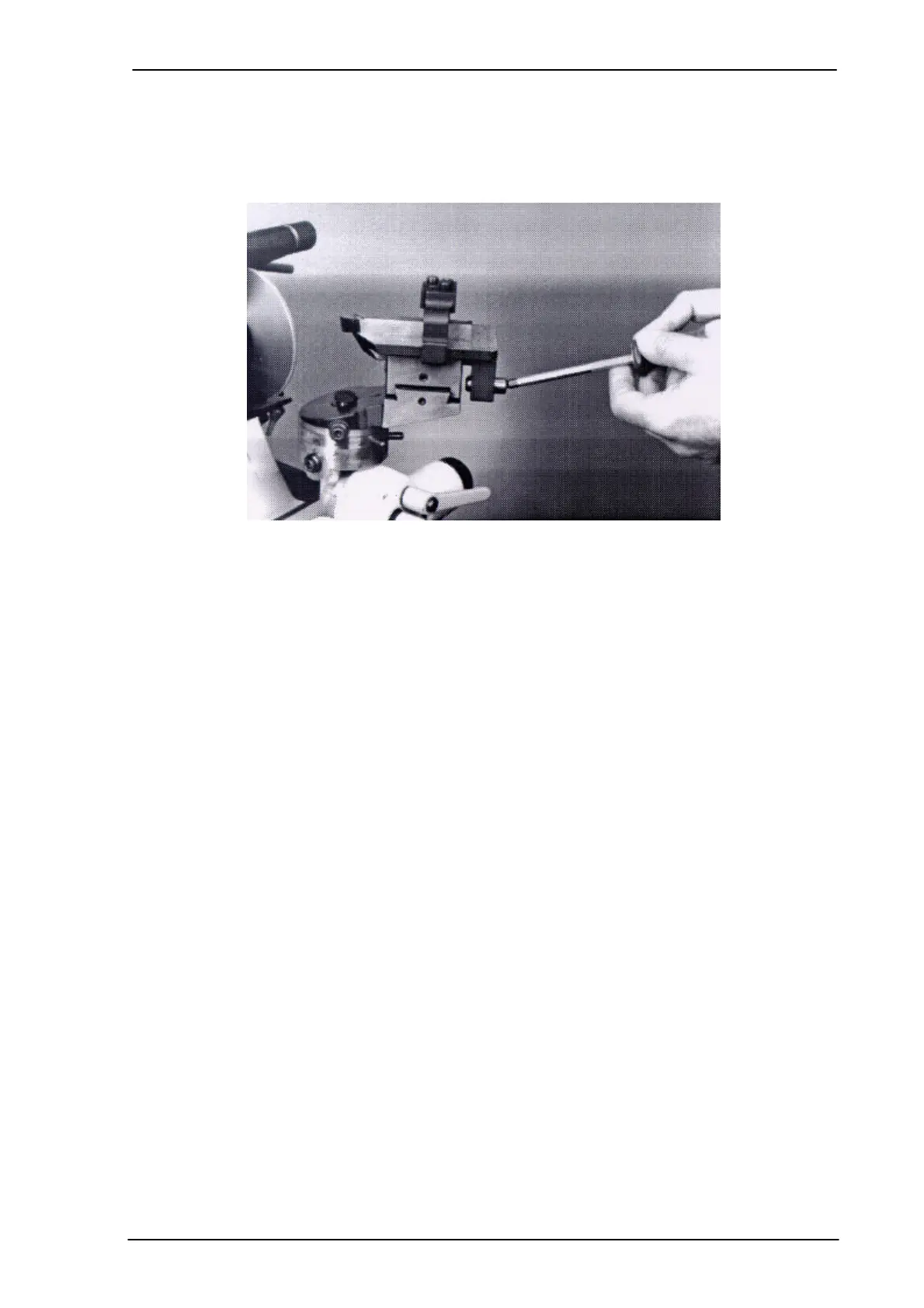

Figure 12-3: Stopper
