Fine infeed F:
The scale of the fine infeed F is graduated into increments of 0,01mm. One revolution
results in an infeed of 1mm. The total range of adjustment amounts to approx. 18mm.
When adjusting the swivel holder using the handwheel F, make sure that the clamp D is
always open.
Cross table:
The cross table serves for he mounting of various accessories., such as the dividing
apparatus. These accessories can be fastened by using the clamp K on the side. In the
front area of the cross table there is a second clamp I. This one clamps the adjustable top
slide to the foundation. This clamp must be loosened before every adjusting procedure
with the micrometer screw J.

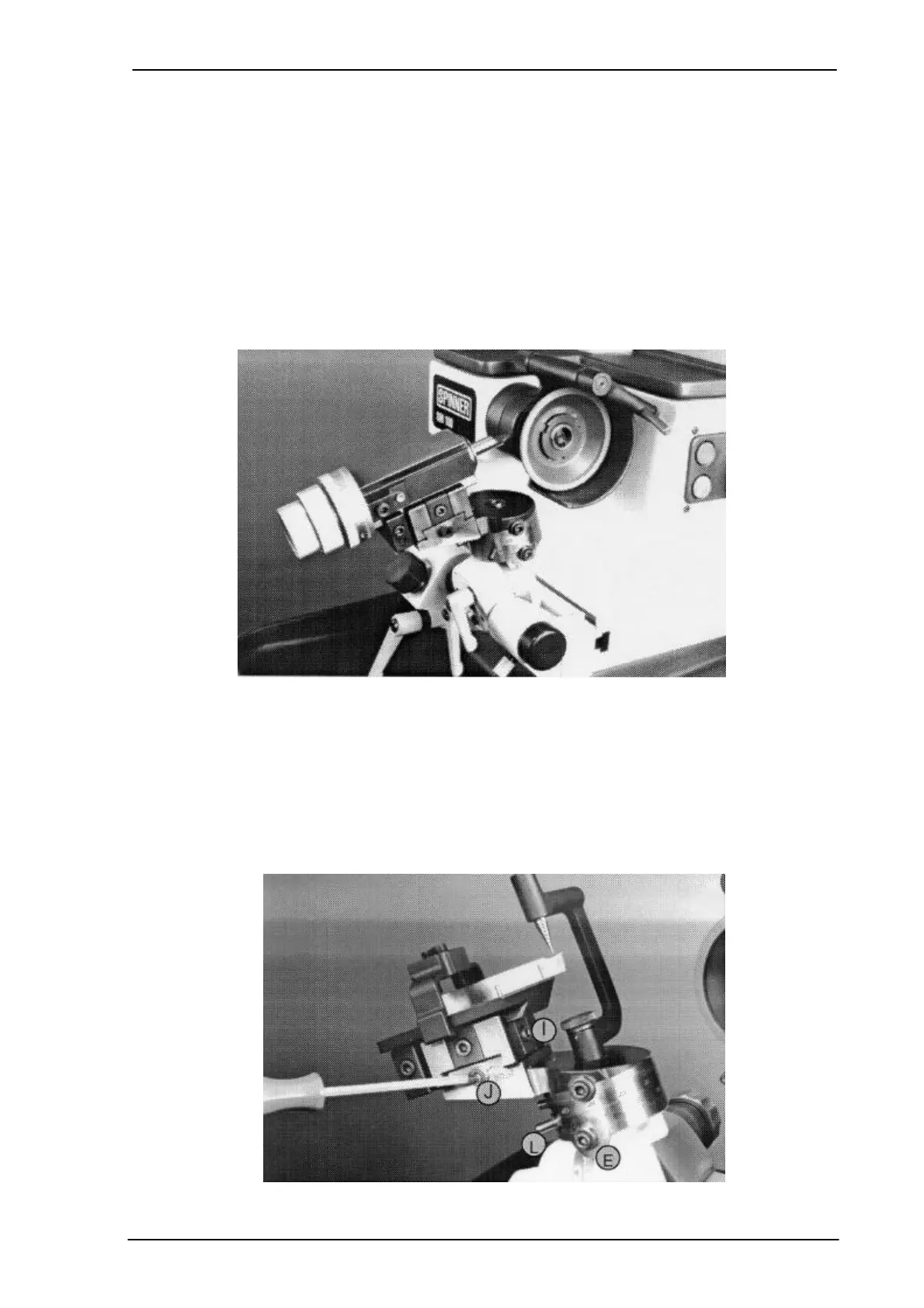

Figure 10-3: Cross table
Fine adjustment:
The cross table is equipped with a micrometer screw J for adjustment purpose. The scale
is graduated into increments of 0.02mm. One revolution of the micrometer screw results
in a lateral shifting of the cross table by 0.5mm. The range of adjustment amounts to
20mm.
Figure 10-4: Fine adjustment
