18.1.2 Radial adjustment of the microscope

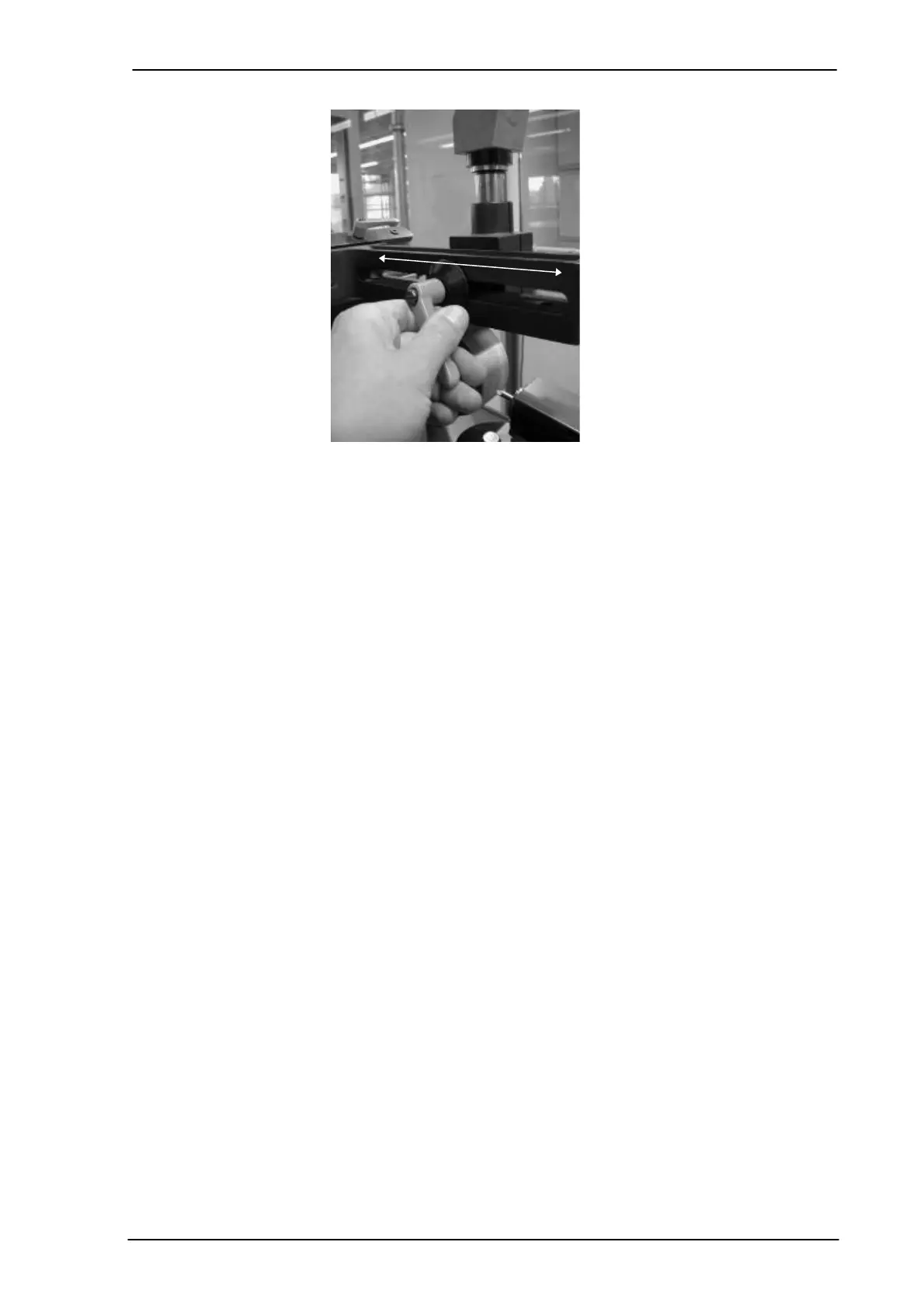

Figure 18-3: Radial adjustment of the microscope
For the radial adjustment the microscope is shifted back and forth on the support D until
the edge of the tool can be seen in the reticule of the microscope.
Once the right position is reached the unit is attached by means of the lever 1.
The adjustment of the height of the microscope unit E is done by releasing lever 2 and
then by shifting the microscope unit E up or down.
The view is focused by turning the black adjustment ring F of the microscope unit E.
