13-7
SPINNER Werkzeugmaschinenfabrik GmbH
SM-1-03/02

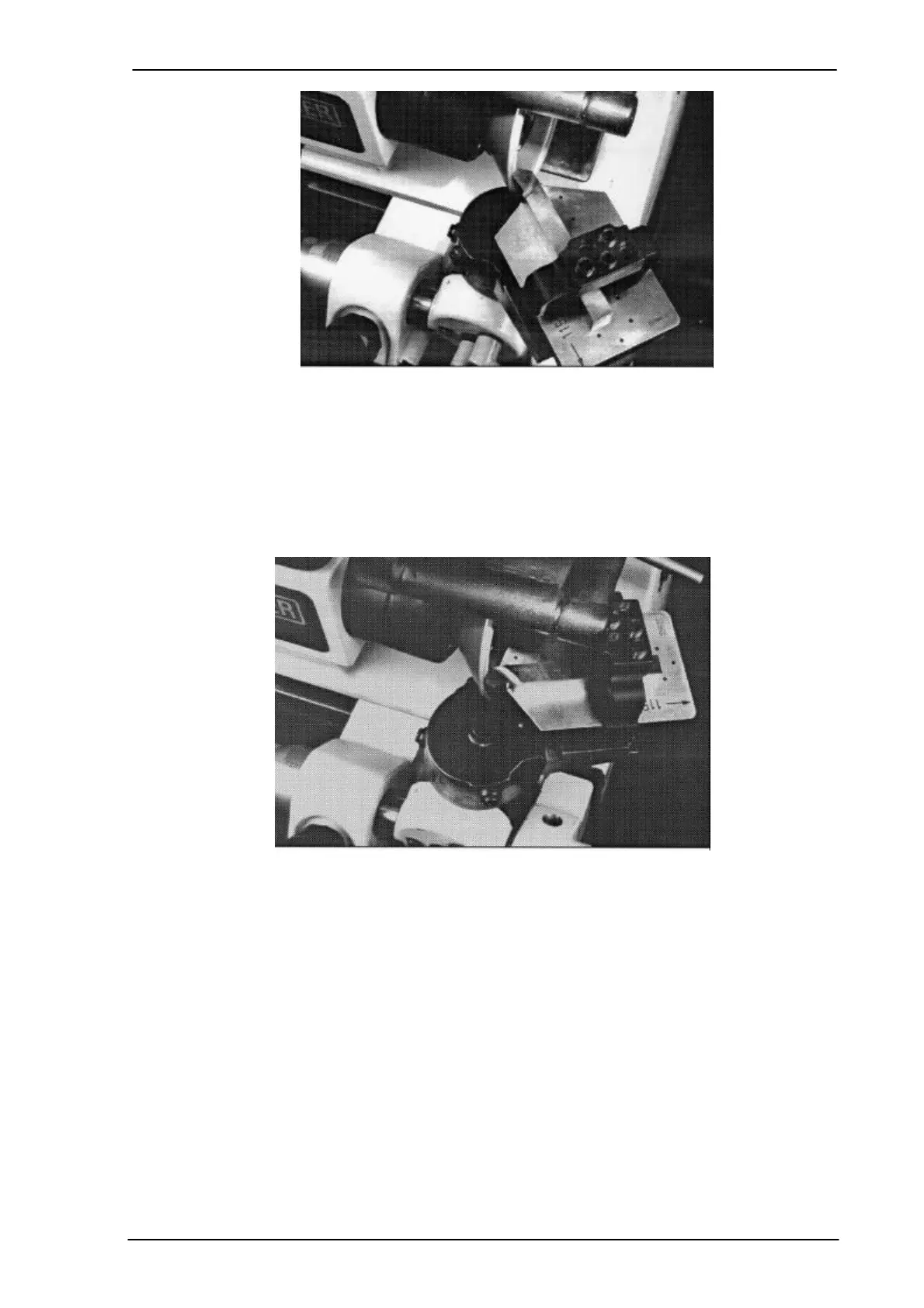

Figure 13-10: Grinding the radius
To check the gound radius the entire clamping plate can be removed from the swivel
holder. The dimension of the radius is measured under a profile projector. Using the
micrometer screws on the cross table and/or on the clamping plate, the correction value
can be set and the grinding of the radius can be finished. Different grinding wheels can be
used for pre-grinding or finishing the grinding.
Figure 13-11: Grinding the radius
