13.1 Grinding the radius
Centering bracket:
Assembly of the centering bracket is carried out by screwing it onto the rotational axis of
the universal swivel holder. To do this, the screw plug which protects the thread against
dirt must be removed. The centering bracket has a movable contacting aid. With the
assistance of the flattened side the tool can be aligned and fixed. With the assistance of
the point an adjusted radius can be optically monitored.

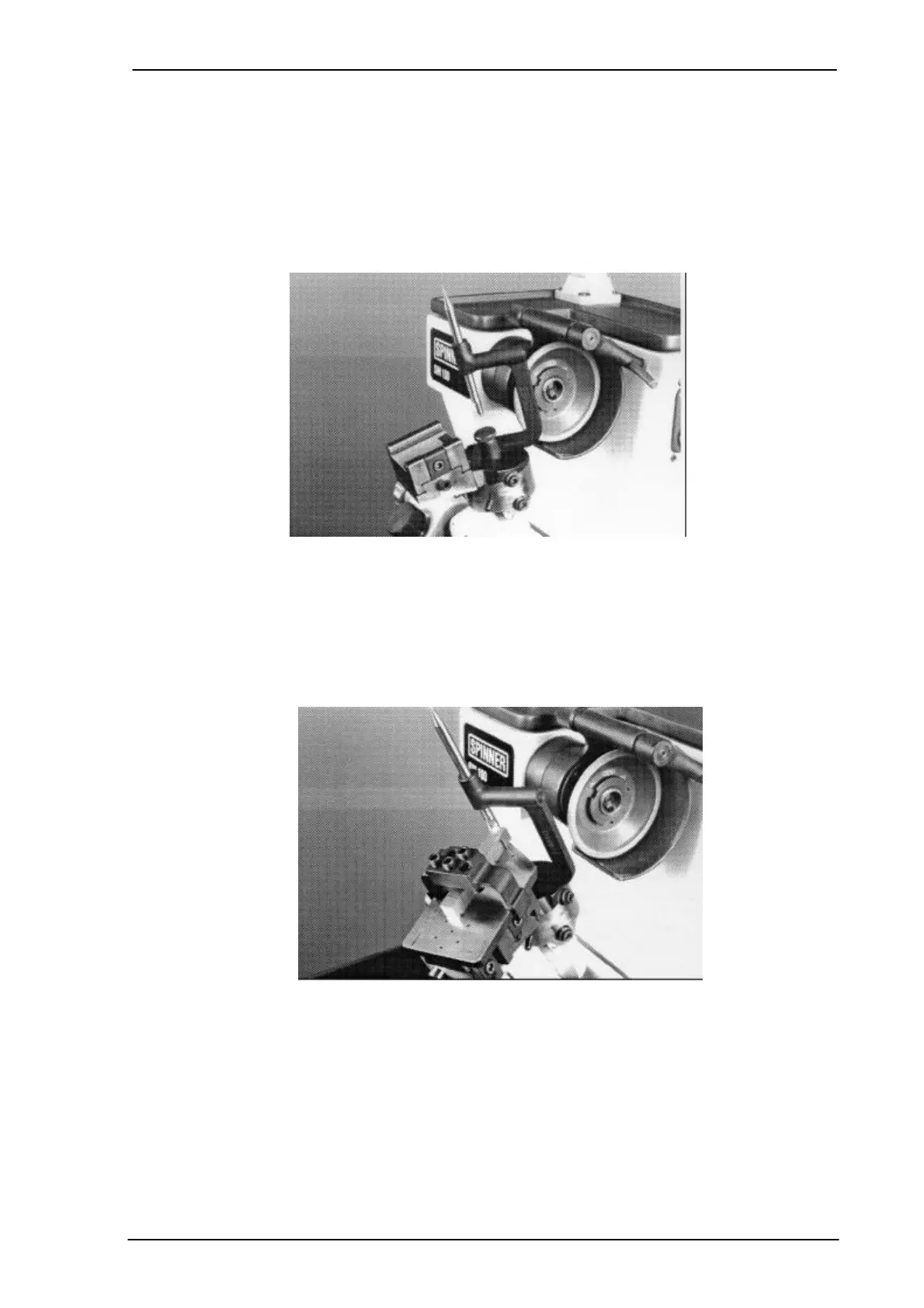

Figure 13-1: Centering bracket
Contacting the tool:
The front end of the tool is to be fixed to the contacting aid of the centering bracket. After
that, the rough stopper of the square clamping plate is to be positioned and fastened. The
fine stopper is to be positioned in the way that re-adjustment can be carried out about the
value of the radius.
Figure 13-2: Contacting the tool
Contacting the tool:
The contacting aid is to be turned by 90 degrees and the tool is now to be fixed with the
side face. With this the cross table is to be shifted by means of the micrometer screw.
The left front corner of the tool is now located exactly in the rotational axis of the swivel
holder. In this position the adjusted radius has the value 0.
