Spinner SM100 - Figure 13-3: Contacting the Tool

13-3
 SPINNER Werkzeugmaschinenfabrik GmbH
SM-1-03/02
Grinding the radius

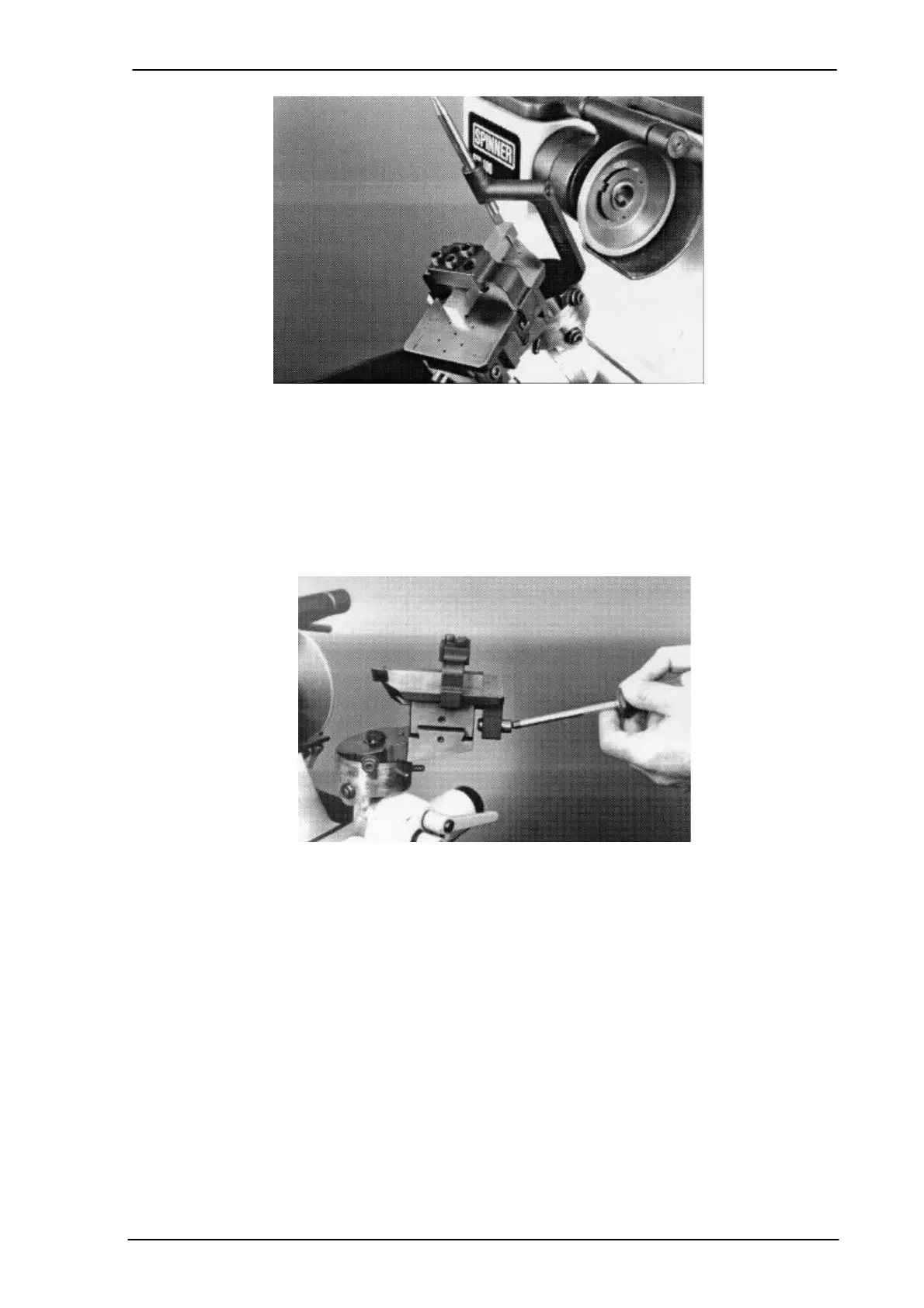

Figure 13-3: Contacting the tool
Adjusting the radius:
A radius e. g of 5mm is to be ground. To do this, the tool must be moved by 5mm to the
front and 5mm to the side. Using the micrometer screw a 5mm traverse is to be adjusted.
After that, the clamp of the clamping plate is to be loosened and shifted forward by the set
value.
Figure 13-4: Adjusting the radius
Adjusting the radius:
In order to move the tool by 5mm to the side, the cross table is shifted with the assistance
of the micrometer screw. To do this, the clamp of the upper slide is to be loosened at first.
A 5mm traverse means turning the micrometer screw by 10 revolutions. After that, the
clamp of the upper slide is to be tightened again.
