10-4
SPINNER Werkzeugmaschinenfabrik GmbH
SM-1-03/02
Swivel movement:
To adjust the turning angle the stoppers E are opened. Now, using the levers L, the two
adjustment scales can be set to the desired value. The stoppers E are to be tightened
once again to arrest the unit.

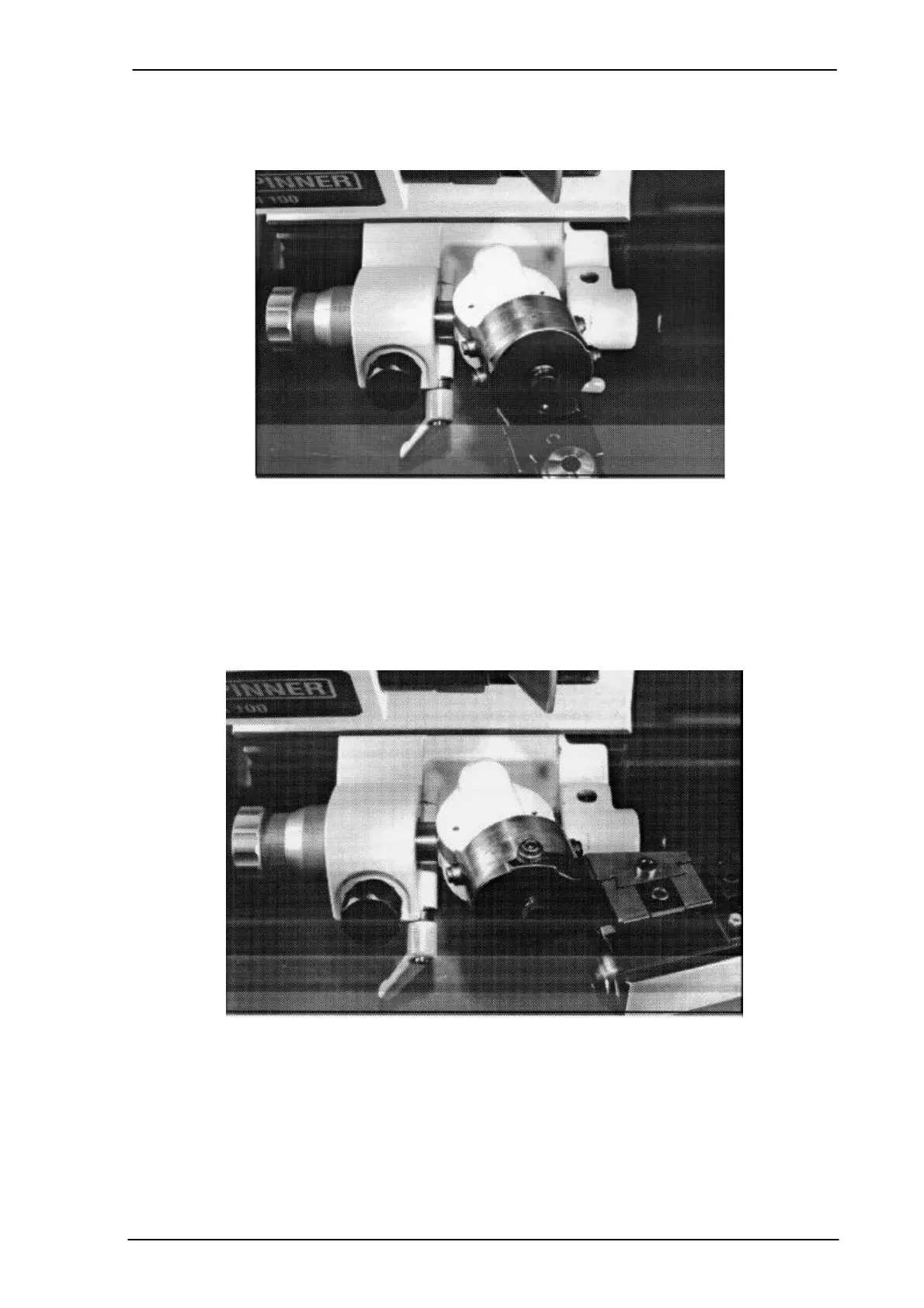

Figure 10-5: Swivel movement
Adjustment scale:
There are two scales for the adjustment of the angle. One graduation mark on the scale
represents two degrees. The maximum turning angle amounts to 150 degrees on each
side. Thus the universal swivel holder allows a total swivelling range around the rotary
axis of a max. 300 degrees.
Figure 10-6: Adjustment scale
