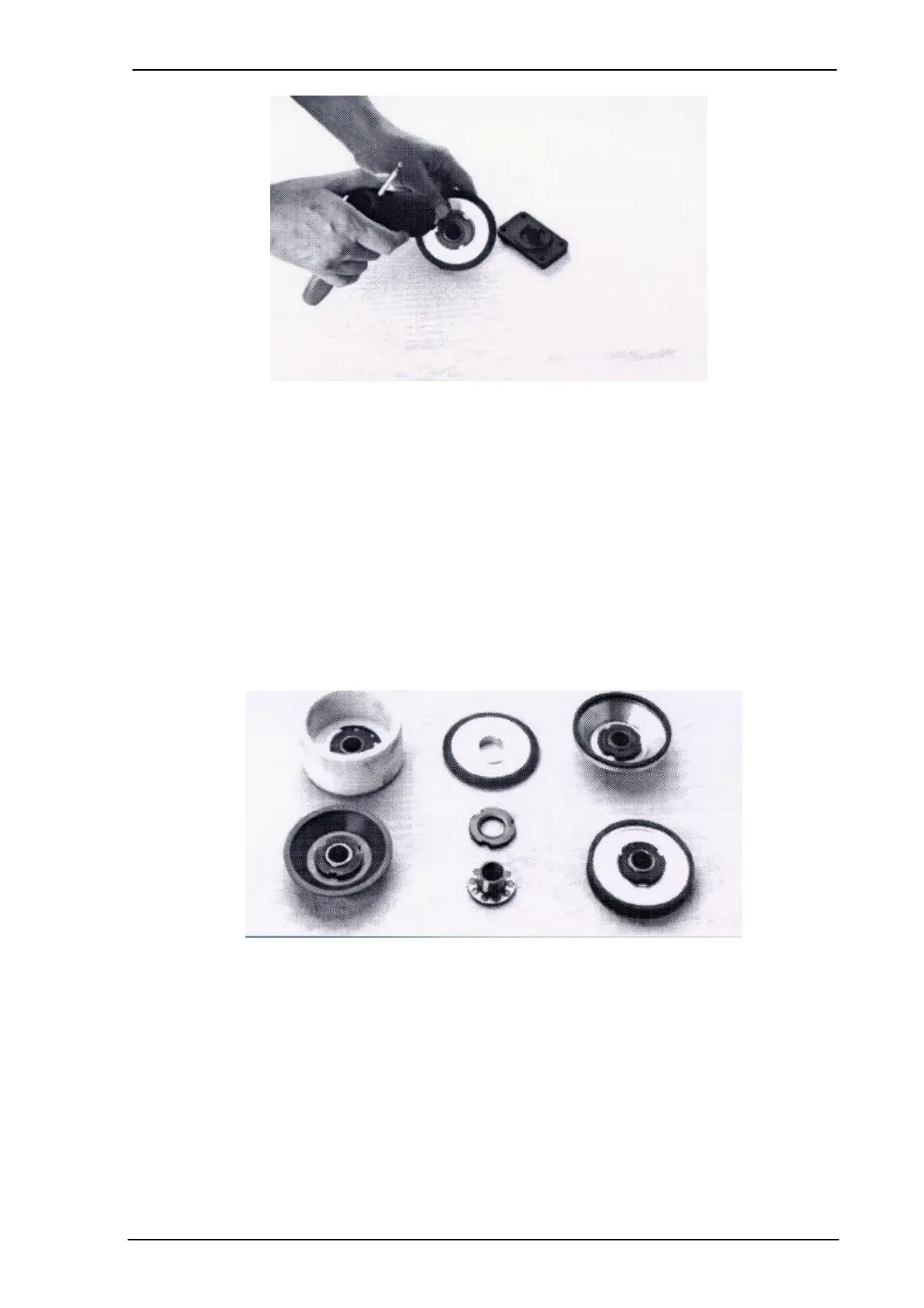

Assembly of the grinding wheel flange
Figure 8-2: Assembly
8.4 Grinding wheels
Bore diameter: 25mm
Max outer diameter: 100mm
Max. height: 50mm
Ceramic grinding wheels as well as diamond or borazon grinding wheels of many different
shapes and sizes can be used, to the extent that the above mentioned criteria is fulfilled.
Only the original grinding wheel flange may be used.
Figure 8-3: Grinding wheels
