7-3
SPINNER Werkzeugmaschinenfabrik GmbH
SM-1-03/02
Quick change unit for grinding wheel
Changing the grinding wheel:
Pull the lever forward and turn the grinding wheel forward by approx. 90 degrees up to the
stopper. In this position the grinding wheel can be removed in axial direction from the
mounting cone of the grinding spindle. The new grinding wheel is to be placed in axial
direction onto the cone and turned to the back by approx. 90 degrees up to the stopper.
After that, return the lever and lock the grinding wheel.

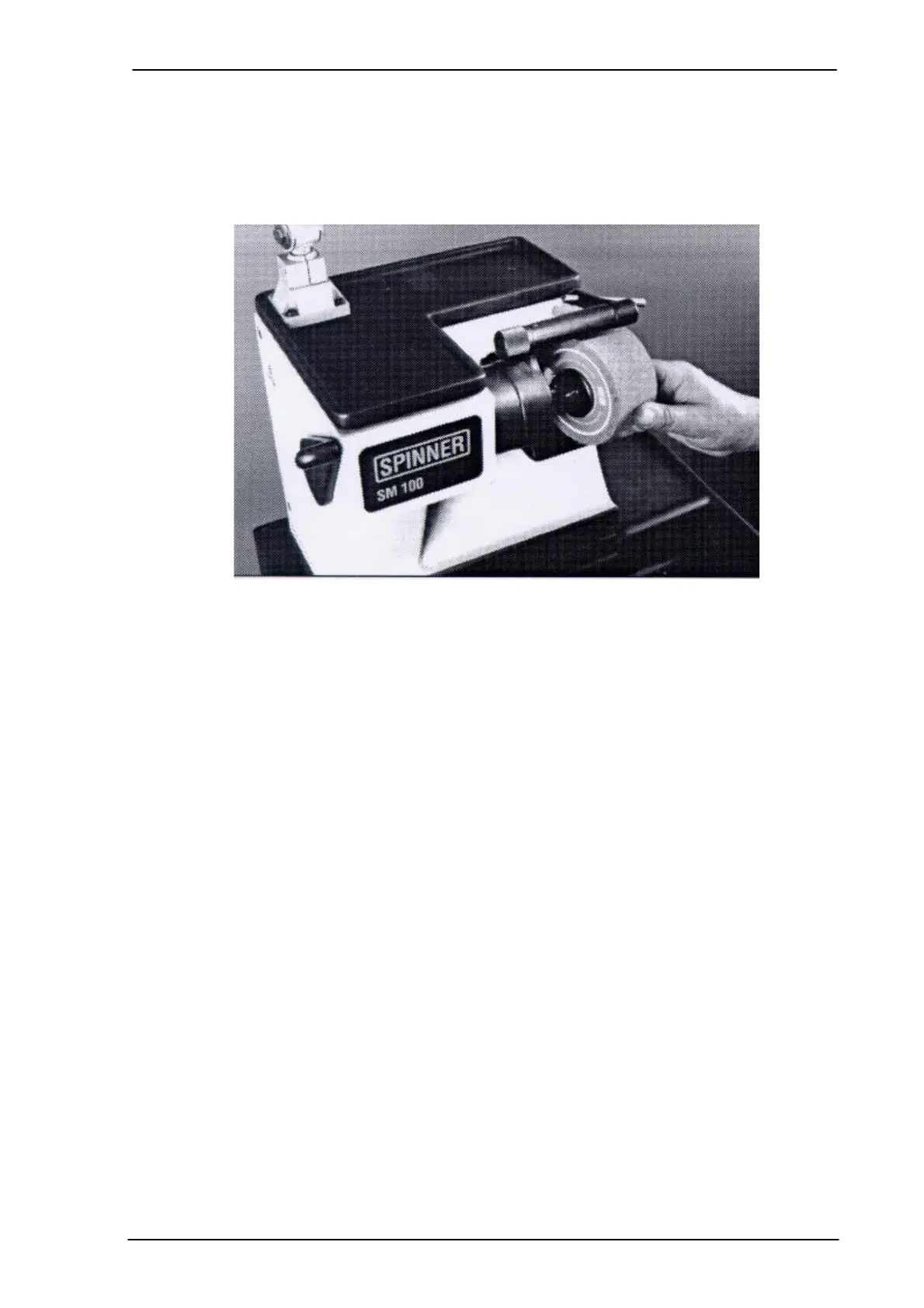

Figure 7-3: Quick change unit - changing the grinding wheel
