11-4
SPINNER Werkzeugmaschinenfabrik GmbH
SM-1-03/02

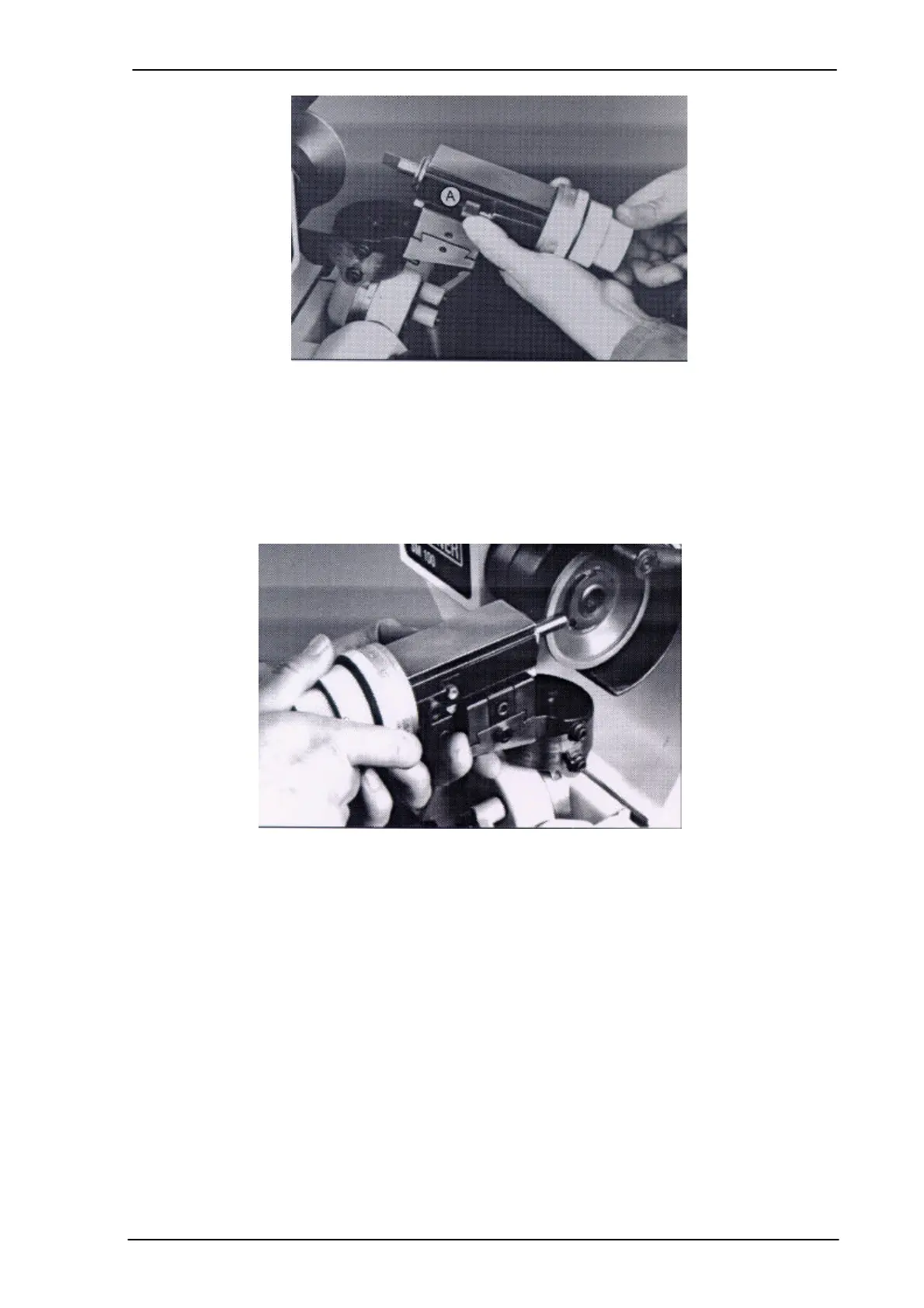

Figure 11-5: Indexing
Grinding:
As shown in the picture, the tool is turned in the dividing apparatus by 90 degrees and
then the position is fixed. Now the cutter can be ground to the center. To do this, it is
advisable to hold the dividing apparatus with both hands and to perform the grinding
process by moving back and forth.
Figure 11-6: Grinding
