8-2
SPINNER Werkzeugmaschinenfabrik GmbH
SM-1-03/02
Assembly of the grinding wheel flange
8.1 Assembly of the grinding wheel flange
8.2 Assembly fittings

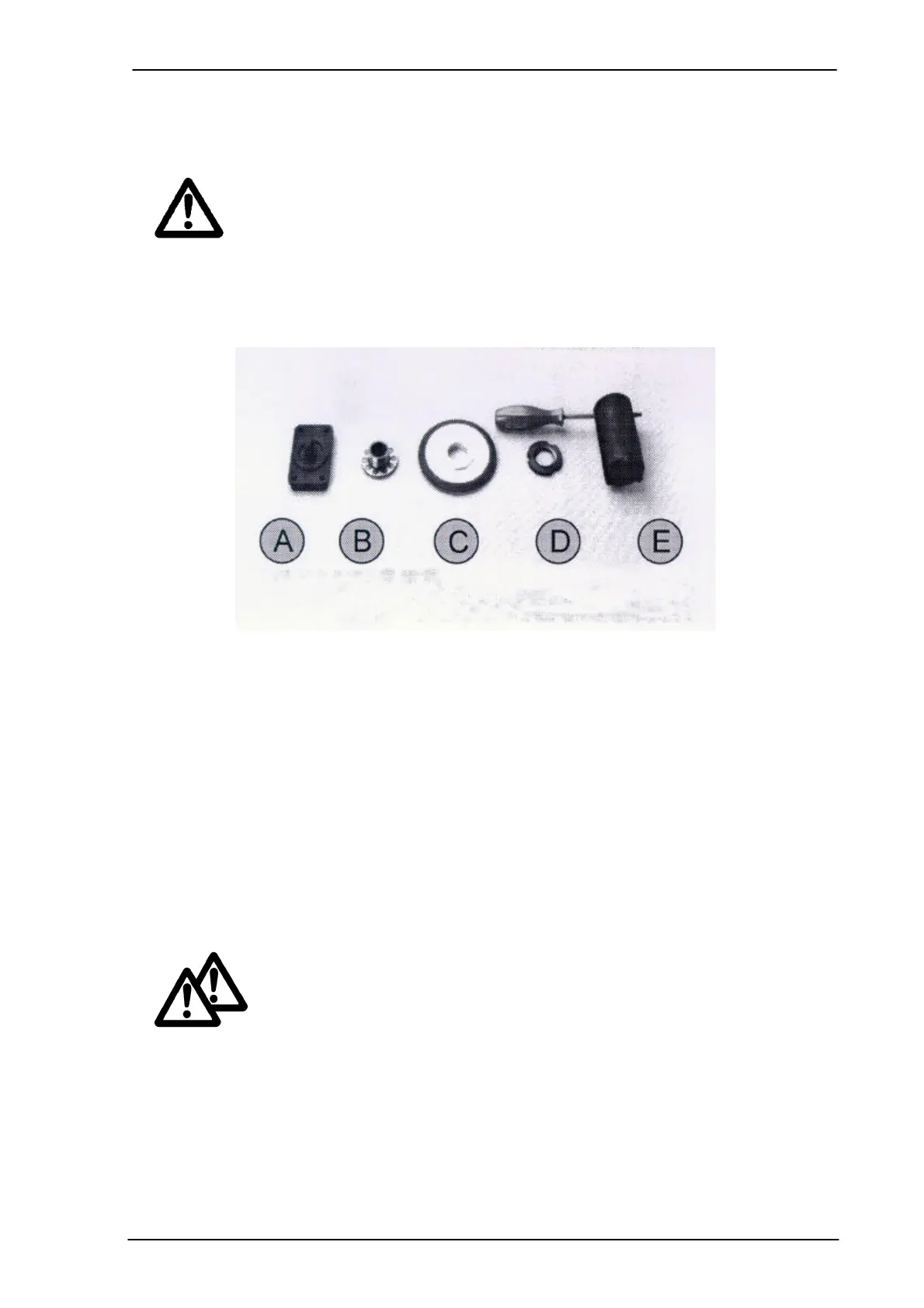

Figure 8-1: Assembly fittings
A) Holding device
B) Grinding wheel flange
C) Grinding wheel
D) Fixing nut
E) Special wrench
8.3 Assembly
It is advisable to clamp the holding device A in a vice. Place the grinding wheel C onto the
flange B and secure using the nut D. The premounted grinding wheel is to be placed into
the holding device A along with the flange. Using the special wrench E, the flange is to be
tightened firmly onto the grinding wheel.
THERE IS DANGER IF THE FLANGE IS NOT FIRMLY
TIGHTENED!
WHEN ASSEMBLING THE GRINDING WHEEL BE ABSOLUTELY
SURE THAT THE GRINDING ELEMENTS ARE NOT DAMAGED! IN
ADDITION, NEW GRINDING ELEMENTS NEED A
