Spinner SM100 - Figure 14-5: Adjusting the Turning Angle

14-4
 SPINNER Werkzeugmaschinenfabrik GmbH
SM-1-03/02
Grinding the cutter

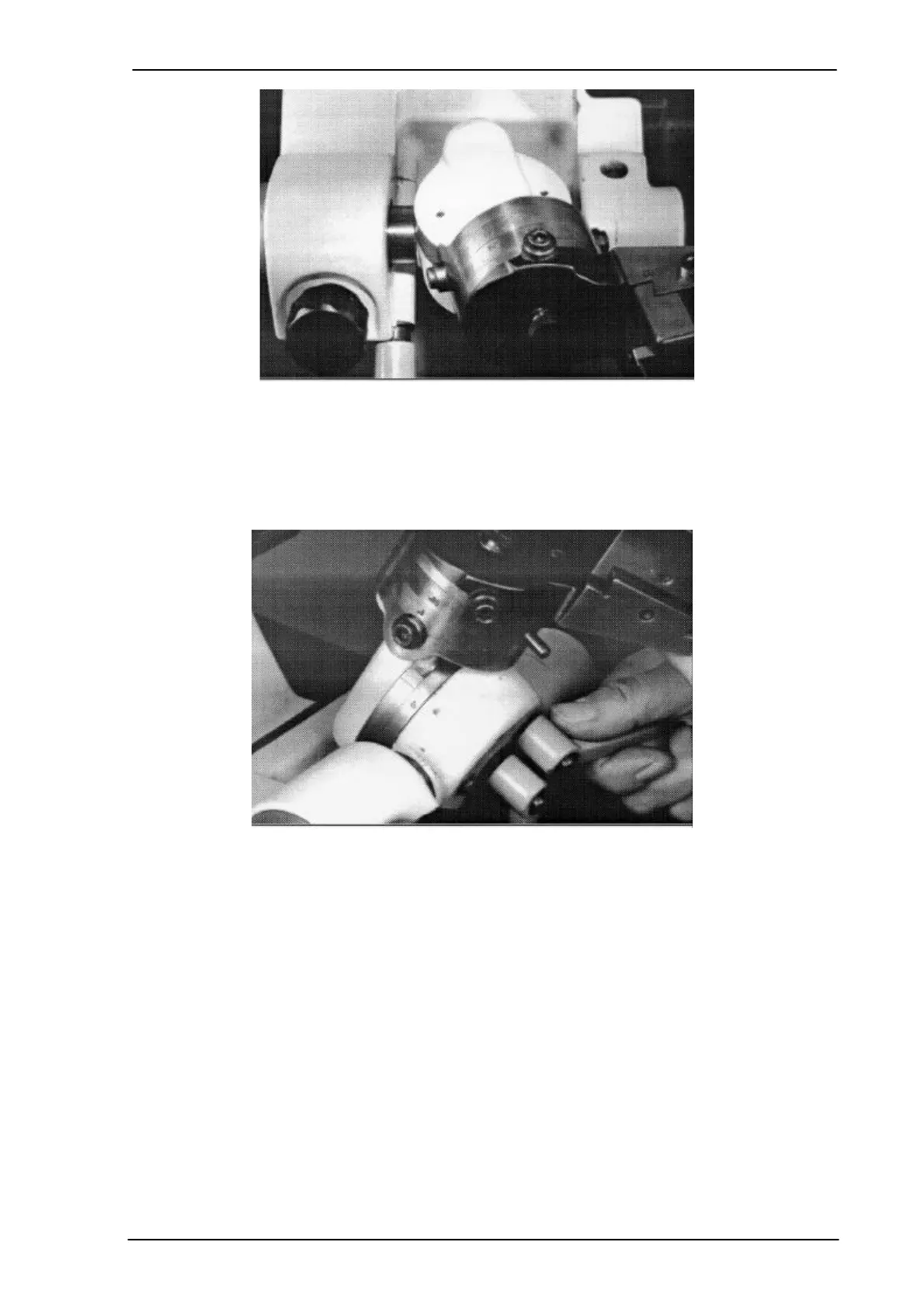

Figure 14-5: Adjusting the turning angle
Setting the clearance angle:
Before grinding can be started, the cutting angle of the cutter must be set. The cutting
angle depends on the material e. g. between 15 and 25 degrees.
Figure 14-6: Setting the clearance angle
Grinding the cutter:
Clamp the turning angle at 30 degrees. Adjust the stopper for the insertion depth. After
that, make contact to the grinding wheel and start the grinding process. Remove material
by means of fine infeed during which time the swivel holder is to be moved back and
forth.
