9-2
SPINNER Werkzeugmaschinenfabrik GmbH
SM-1-03/02
Dressing the grinding wheel
9.1 Operating elements

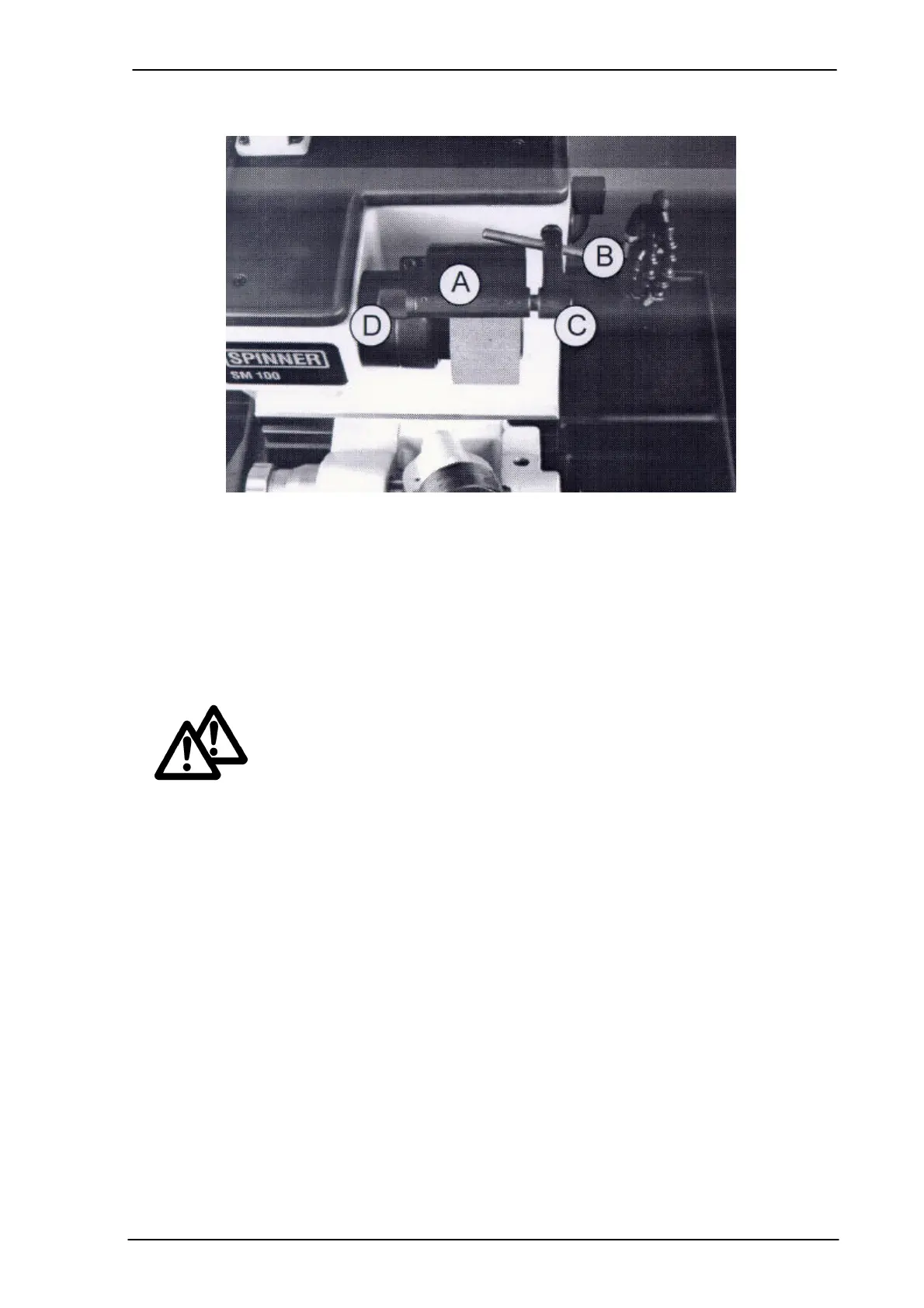

Figure 9-1: Operating elements
A) Protective hood for the grinding wheel
B) Dressing diamond
C) Swivel arm with clamp for dresser
D) Infeed screw
9.2 Handling
Clamp the dressing diamond in the swivel arm. Move the swivel arm downwards and by
means of the infeed screw, contact the dressing diamond to the grinding wheel. Start the
grinding spindle and slowly move the dressing diamond past the grinding wheel. If
necessary, repeat the dressing process with more infeed.
THE PROTECTIVE HOOD MUST ONLY BE OPENED AS FAR AS
NECESSARY WHILE DRESSING THE GRINDING WHEEL! IT
KEEPS BACK FRAGMENTS IF THE GRINDING ELEMENT IS
BREAKING! IT SERVS AS A SAFETY ELEMENT!
