Installing the Ranger Converter 3000 Board in the Cabinet
3.1.1.
Installing the Ranger Converter 3000 Board in the Cabinet
Depending on which main controller you use, installation may vary. Use four screws and a screwdriver to
mount the board. Note that standoffs are typically required, which isolates the underside of the circuit board
from the metal chassis. Ensure that the board is not shorted before applying power, or damage may occur.

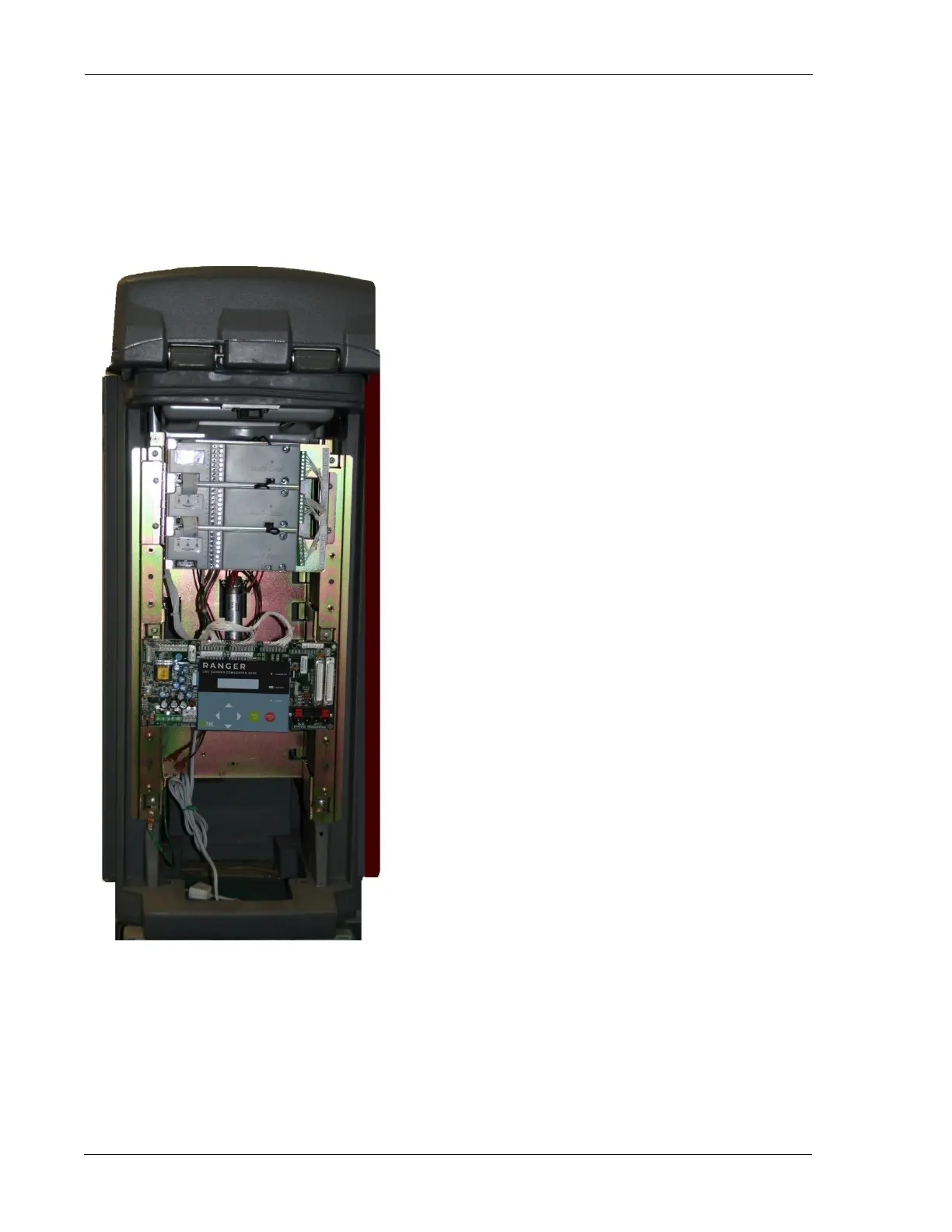

The photo below shows an example installation of a Ranger Converter 3000 with a typical controller. Please
refer to the following sections for connecting the various terminals of the Ranger Converter 3000 Board.
