Chapter 2. Technical Specifications

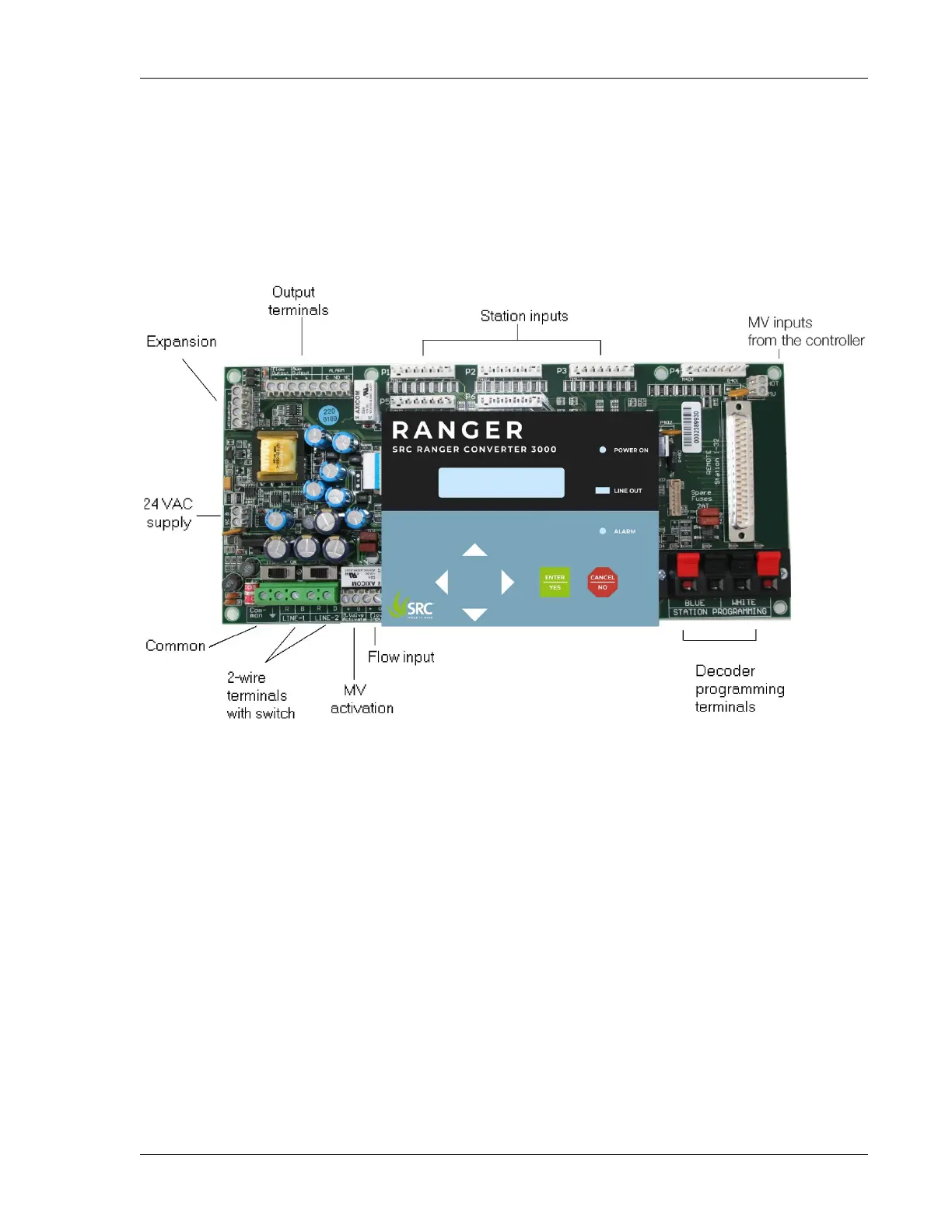

2.1. The Ranger Converter 3000 Board
The core of your Ranger Converter 3000 system is the Ranger Converter 3000 Board that manages the
integration between your main controller and the stations. In the sections below you will find a description of
the layout of the Ranger Converter 3000 Board and its input and output terminals.
2.1.1. Expansion terminal
Use the expansion terminal to connect the optional Ranger Converter 3000 Extender, enabling flow access
for up to 48 additional stations and a master valve. For more information on connecting the Ranger Converter
3000 Extender and the Ranger Converter 3000 Board, turn to Section 3.1.9, “Connecting the Ranger
Converter 3000 Extender to the Ranger Converter 3000 Board” [16].
2.1.2. Output terminals
Use the output terminals to connect the flow output(s), and load.
