Connecting Decoders for Programming
3.1.8.
Connecting Decoders for Programming
Use the Station Programming terminals to the right on the Ranger Converter 3000 Board when
connecting the decoder for programming. Connect the two-wire by fastening it to the terminals labelled

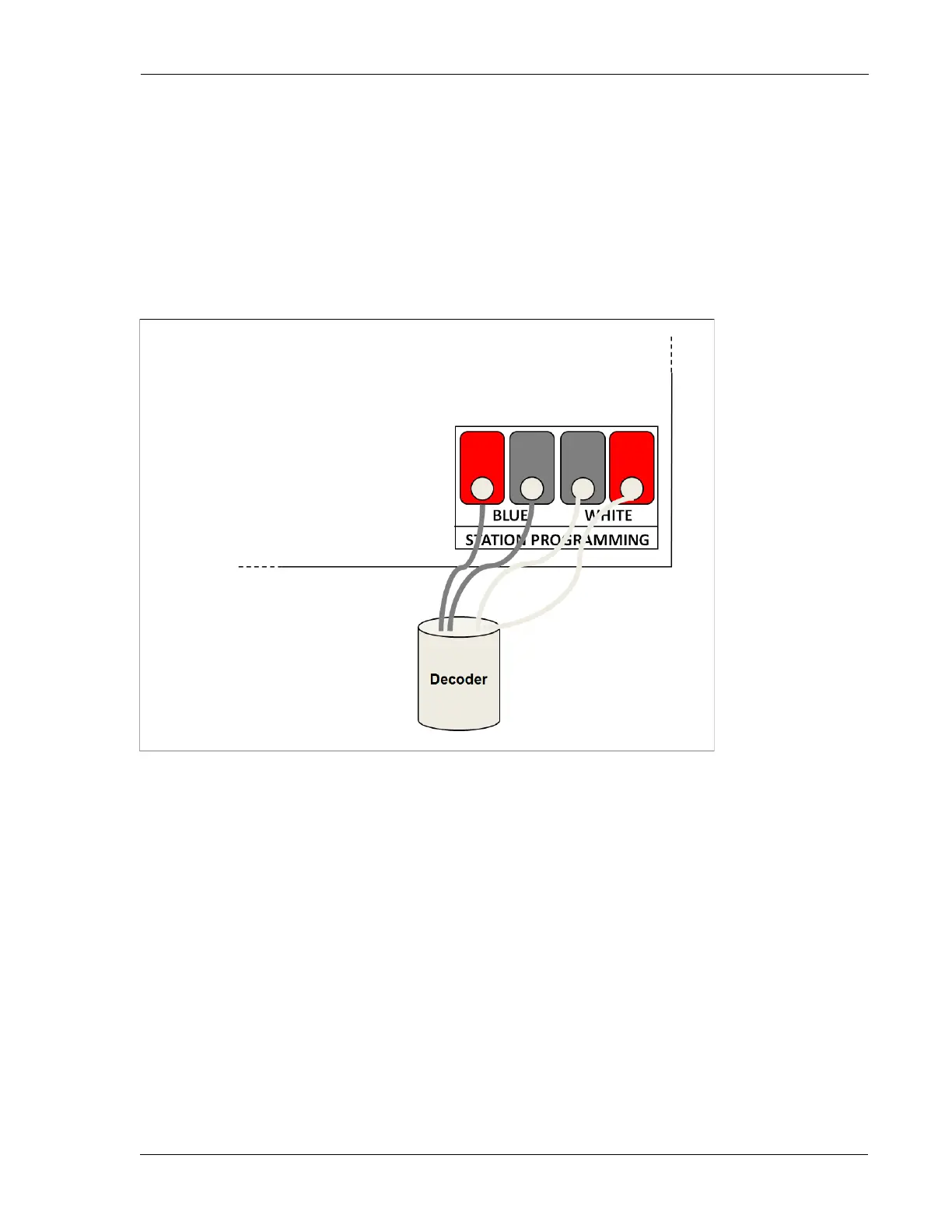

Blue and White, respectively. Refer to the illustration below and to the Ranger Converter 3000
Installation diagram at the end of this chapter.
Once connected, you can assign an address to the decoder from the Ranger Converter 3000 panel. You
can also test that the decoder is fully functional. For information on programming and testing decoders turn to
Chapter 6: Configuring the Ranger Converter 3000.
3000 Board
